Flywheel: Testing and Inspection

FLYWHEEL INSPECTION
1. Check the flywheel surface for scoring, cracks or discoloration. Minor scratches or discoloration should be removed with a fine emery cloth.

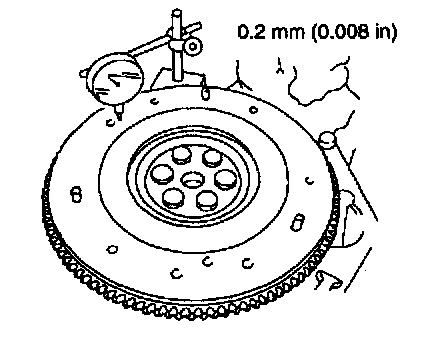

FLYWHEEL RUNOUT CHECK INSPECTION
1. Mount a dial indicator so the indicator contact point rides on the clutch disc contact surface.





2. Turn the flywheel; if the runout exceeds the maximum allowance, replace the flywheel.
