Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mazda Truck
>>
2000
>>
B2500 SE Regular Cab 2WD L4-2.5L VIN C
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
External Sealing
External Sealing

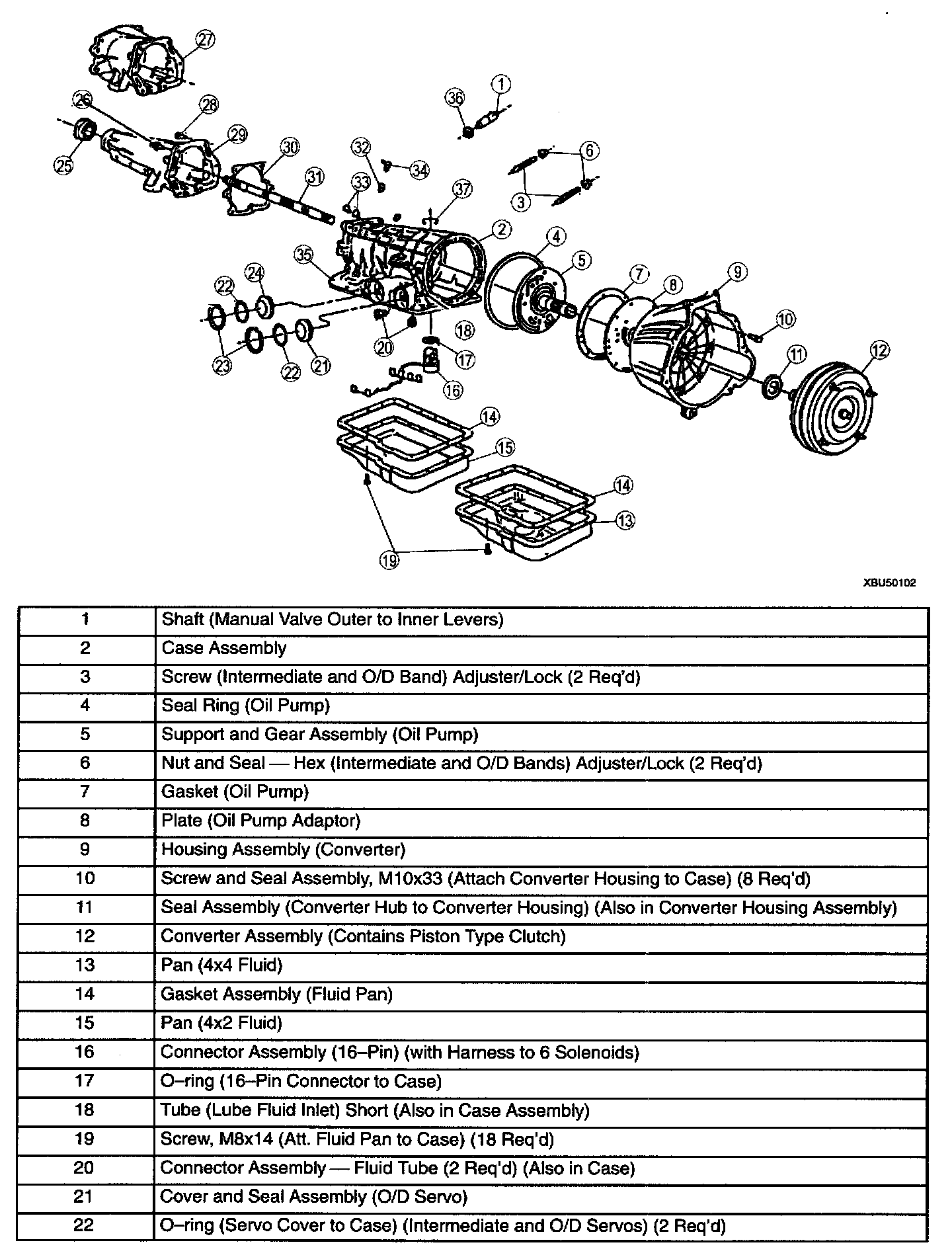

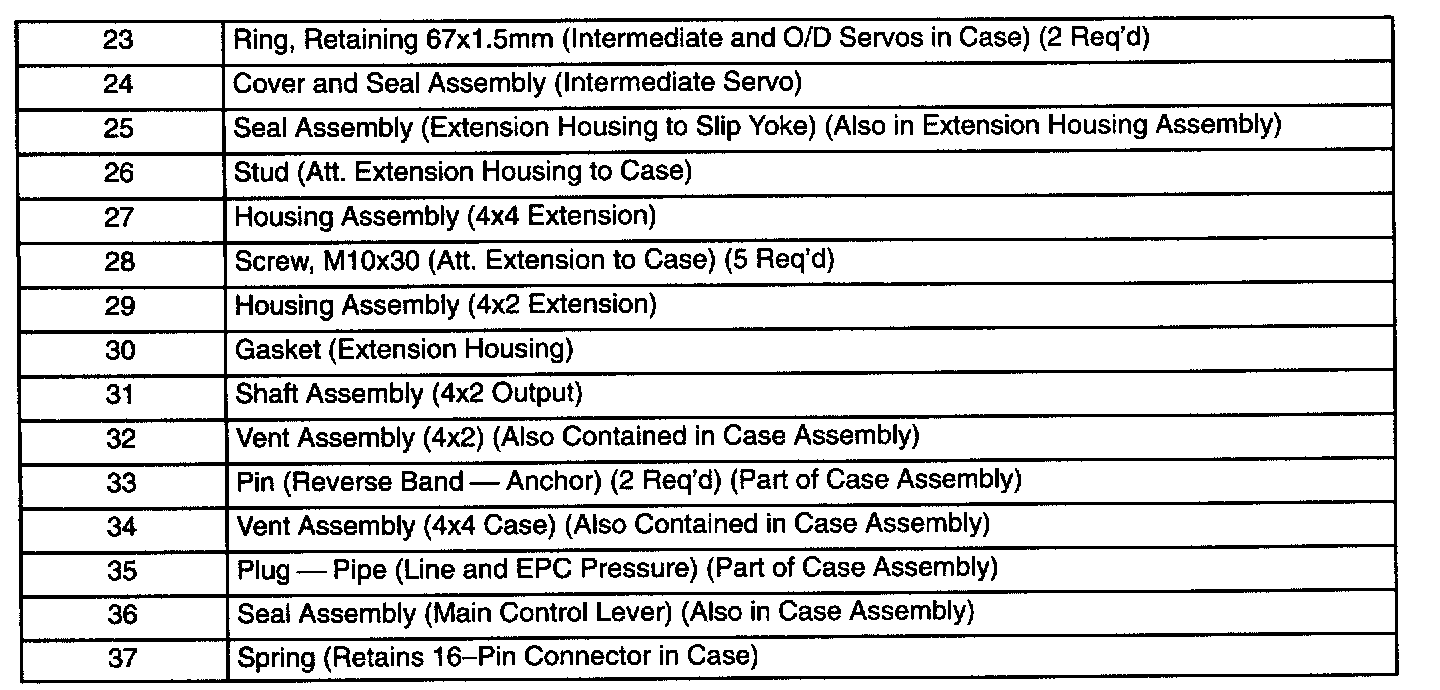

EXTERNAL SEALING
The transmission has the following parts to prevent external fluid leakage:
-
gaskets
-
lip-type seals
-
O-ring seals
-
seal rings
-
seal grommets
-
thread sealant
