Test 3: the Transmission Control Switch Not Operating Properly
Test 3: the Transmission Control Switch Not Operating Properly
PINPOINT TEST 3: THE TRANSMISSION CONTROL SWITCH IS NOT OPERATING PROPERLY

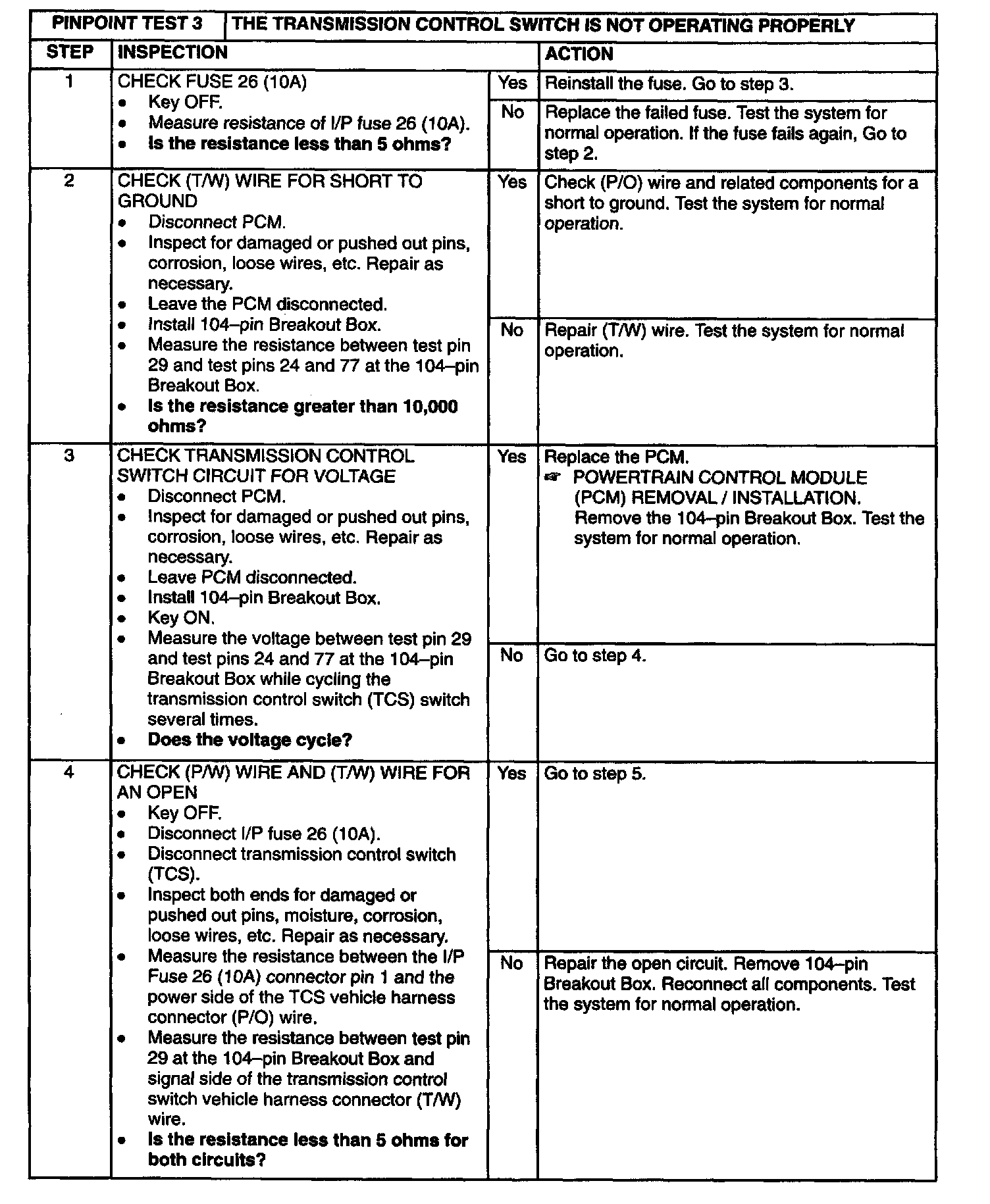

Step 1 - 4

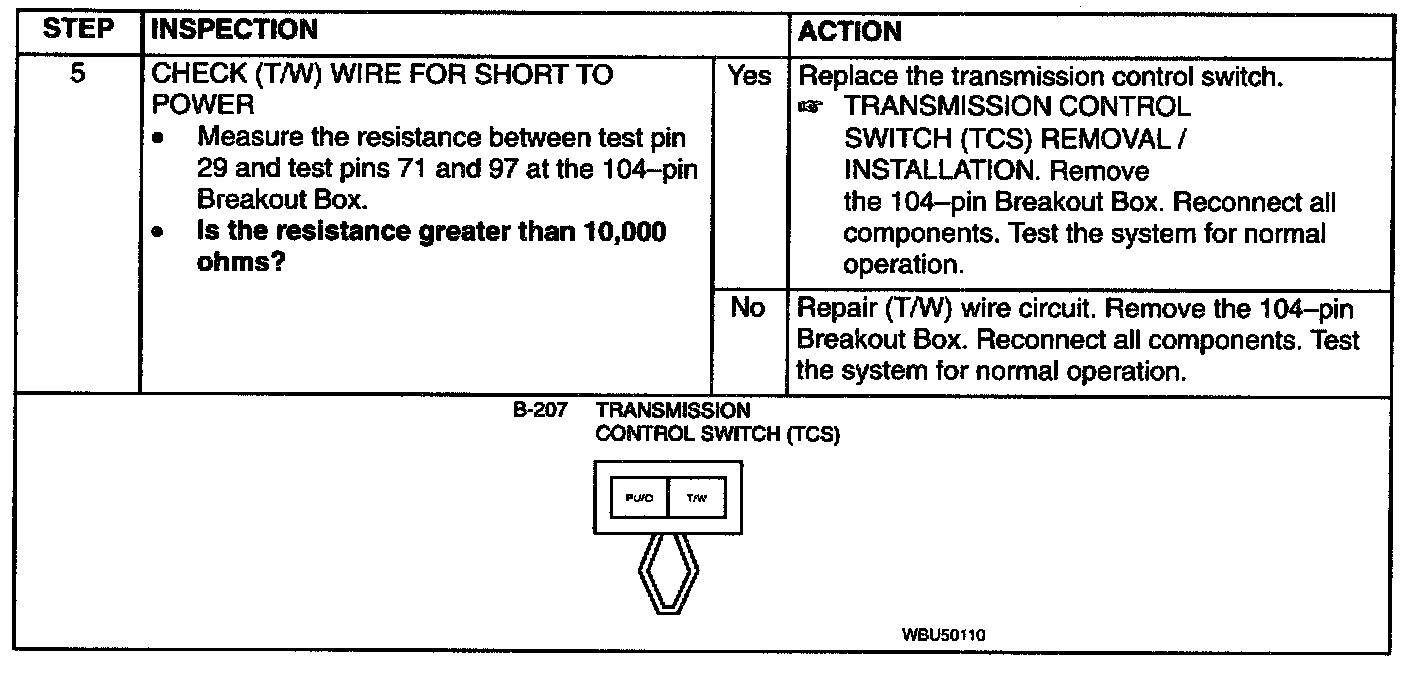

Step 5
