Selector Lever Removal/Installation

SELECTOR LEVER REMOVAL/INSTALLATION
1. Remove the ignition switch.

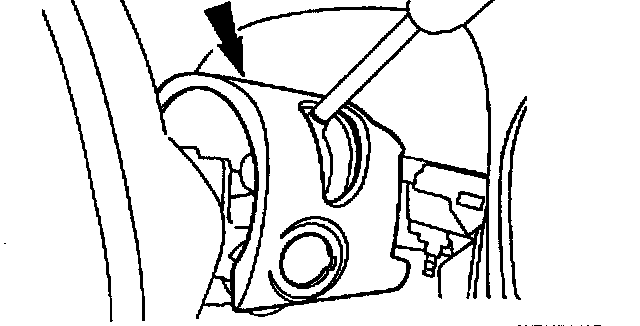

2. Remove the upper steering column shroud and the rubber shift lever cover.





3. Remove the selector lever.

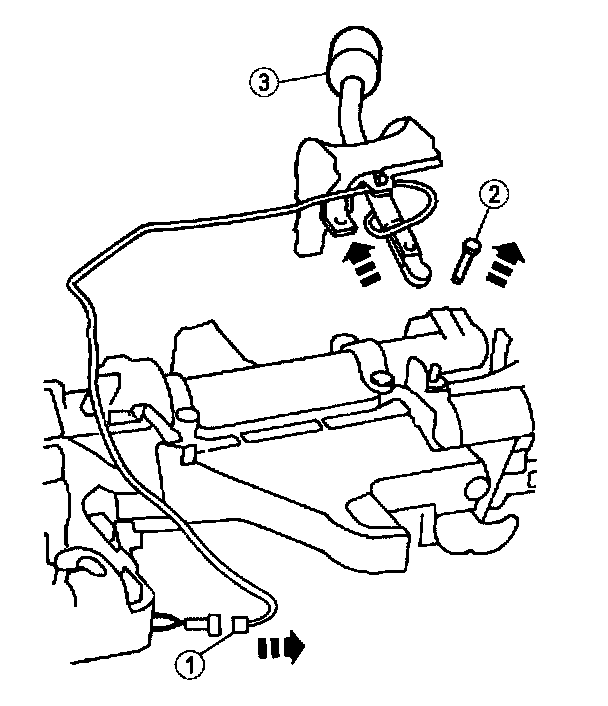

1. Disconnect the shift control selector lever harness connector.
2. Remove and discard the gearshift lever pin.
3. Remove the gearshift lever.

Note The gearshift lever pin must be replaced whenever removed.

4. Install in reverse order of removal.
