Home >> Mazda Truck >> 2000 >> B2500 SE Regular Cab 2WD L4-2.5L VIN C >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Locations

Automatic Transmission/Transaxle: Locations

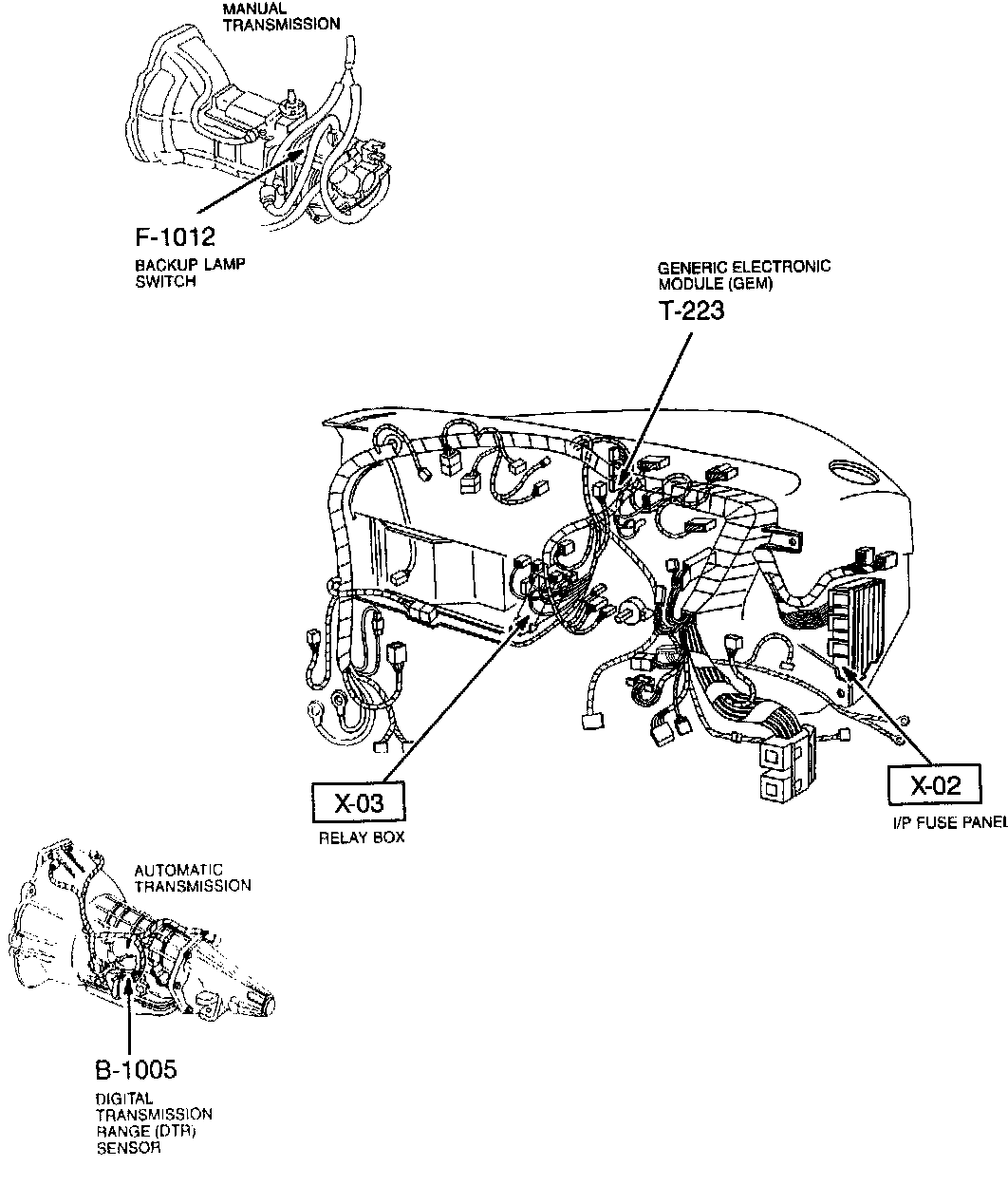

Connector Locations: Engine Compartment

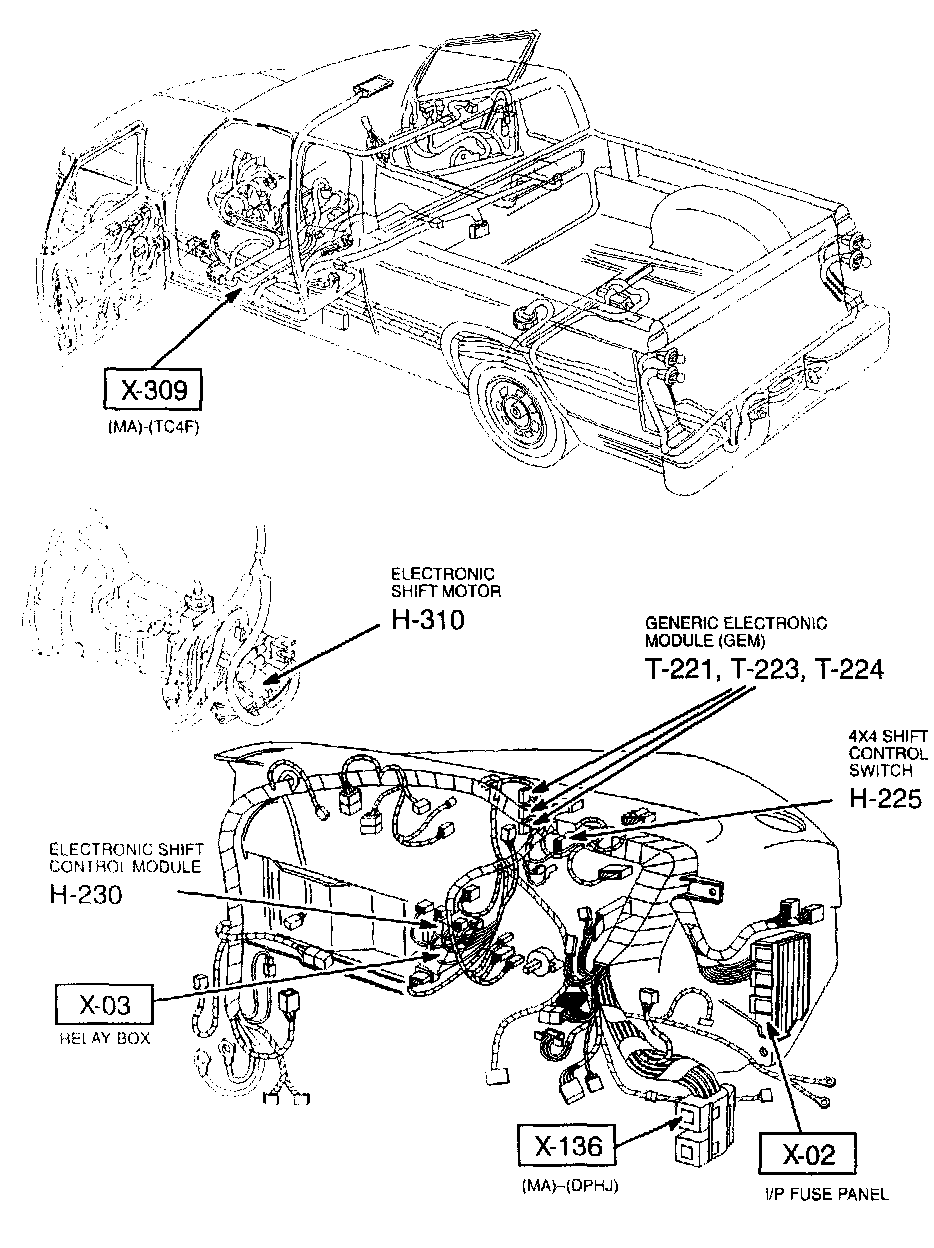

Connector Locations: Overall Vehicle and Dashboard
