Alternator Pulley / Clutch: Service and Repair
1.
Disconnect the negative
battery cable
.
2.
Remove the generator.
3.

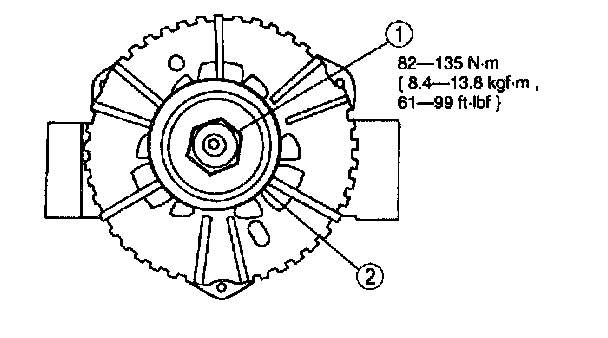

Remove the nut (1) and generator pulley (2).
4.
Install in reverse order of removal.
