Pinpoint Test 2

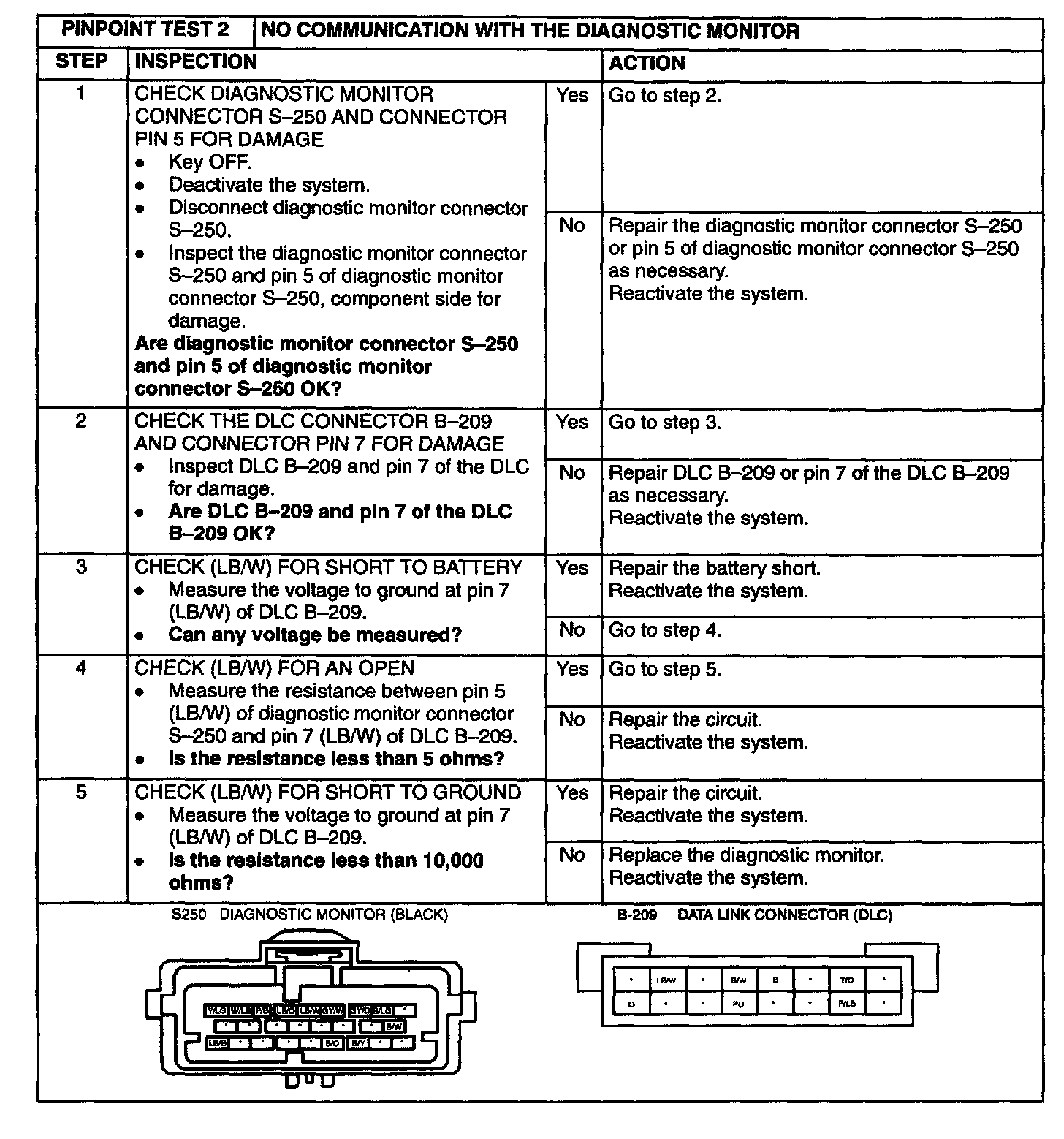

Pinpoint Test 2 (Steps 1 - 5):

Normal Operation
The air bag diagnostic monitor communicates with the NGS Tester using the ISO 9141 communication mode through the Data Link Connector (DLC).

Possible Cause
A no communication condition may be caused by:
- damage to (LB/W) wire.
- damaged DLC.
- damaged NGS Tester.
- a diagnostic monitor internal concern.
