Mazda Truck
>>
2000
>>
B2500 SE Regular Cab 2WD L4-2.5L VIN C
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Brakes and Traction Control
>>
Electronic Brake Control Module
>>
Testing and Inspection
>>
Pinpoint Tests
Pinpoint Tests

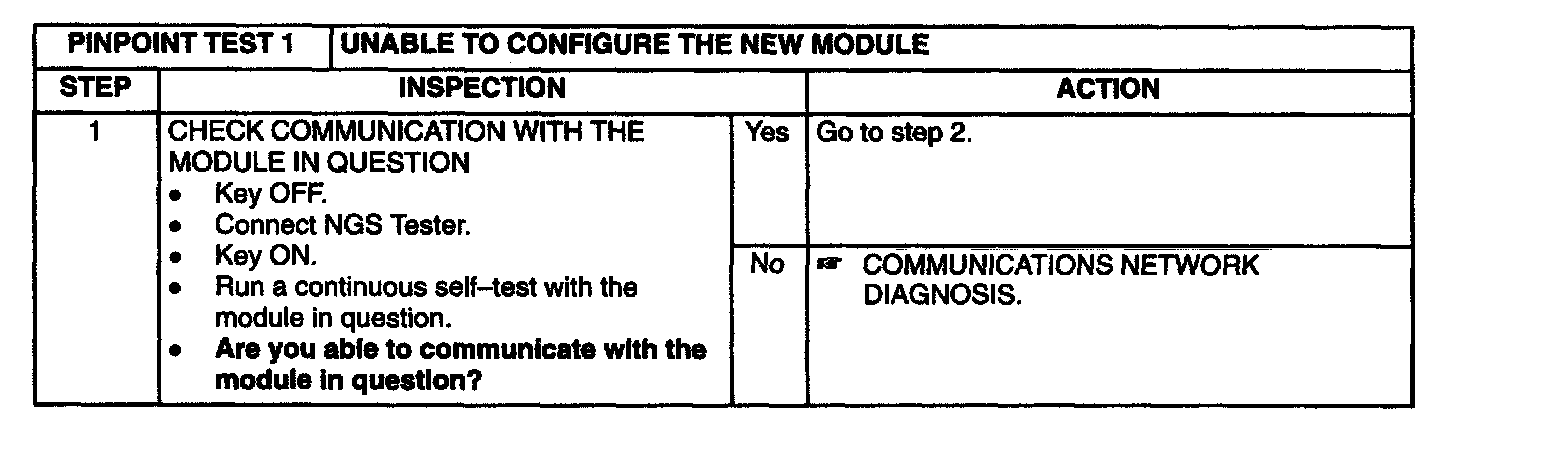

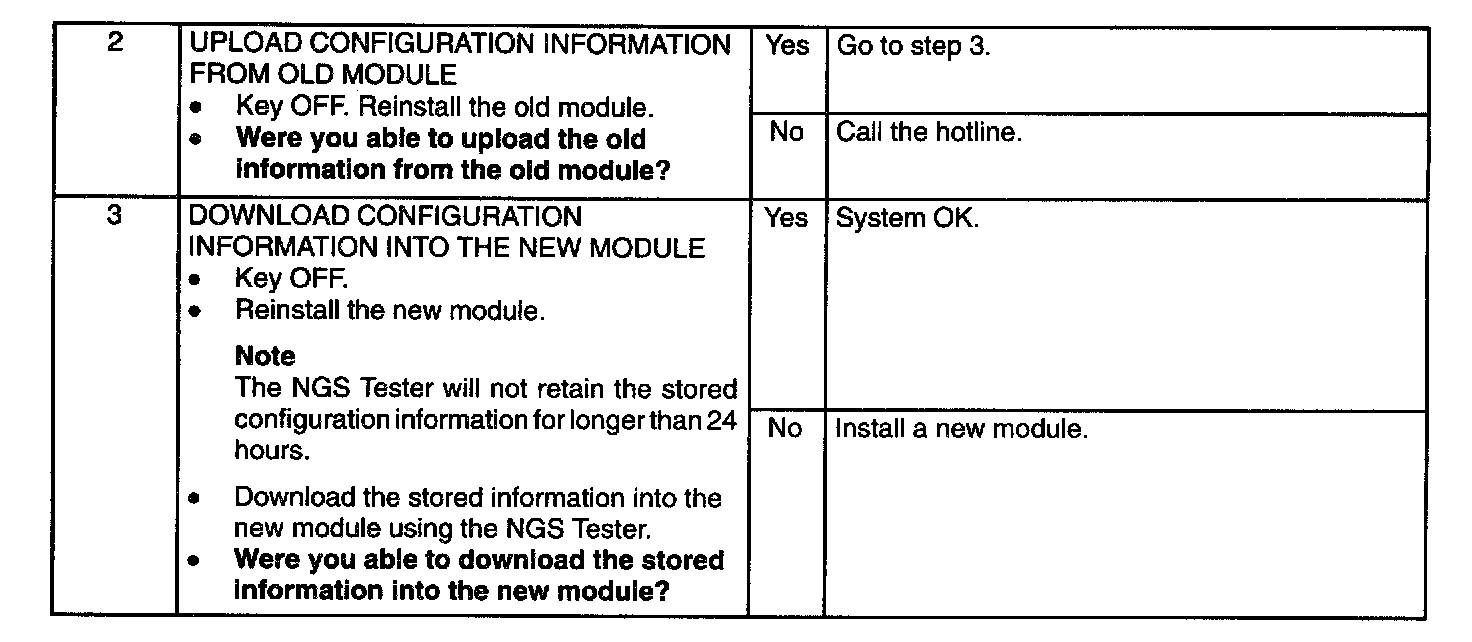

PINPOINT TEST 1: UNABLE TO CONFIGURE THE NEW MODULE
