Symptom Chart

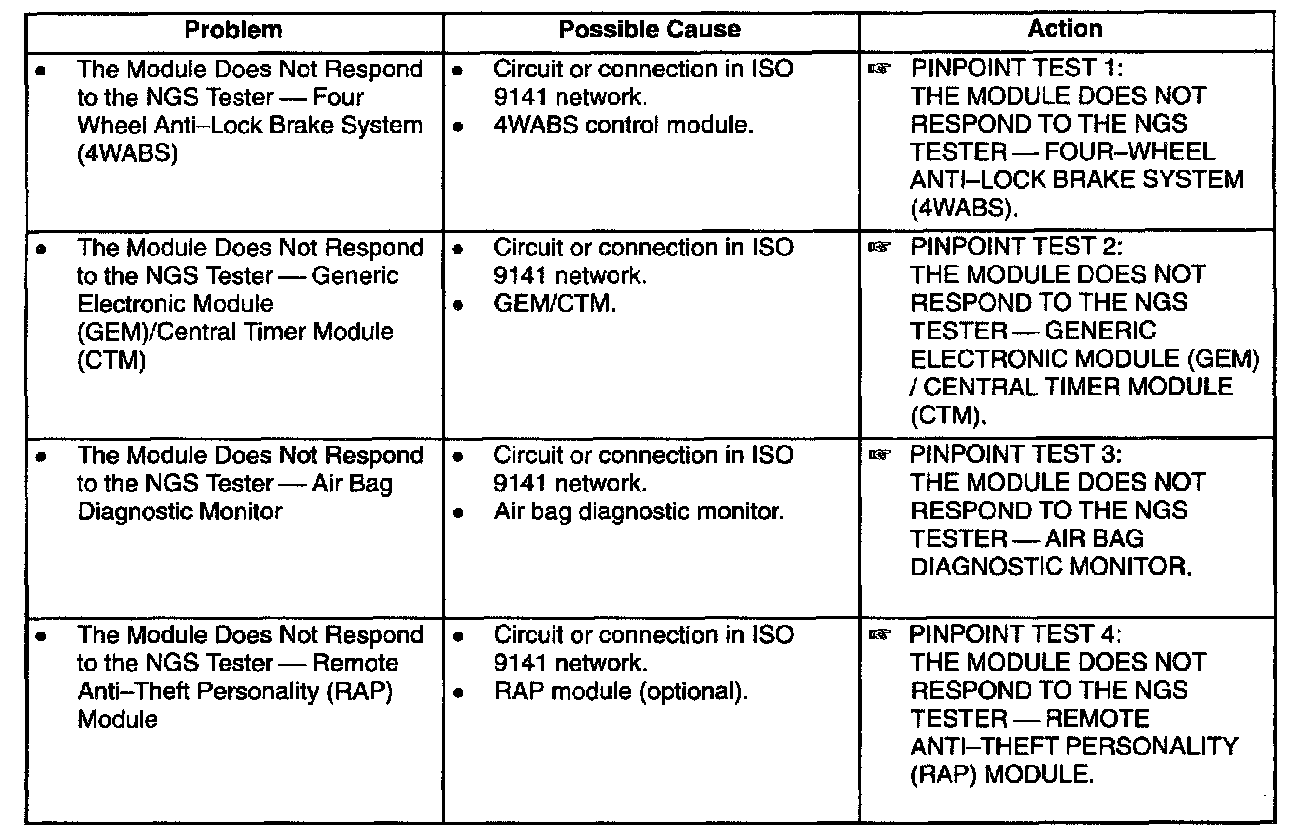

COMMUNICATIONS NETWORK SYMPTOM TROUBLESHOOTING CHART ( Part 1 Of 2 ):

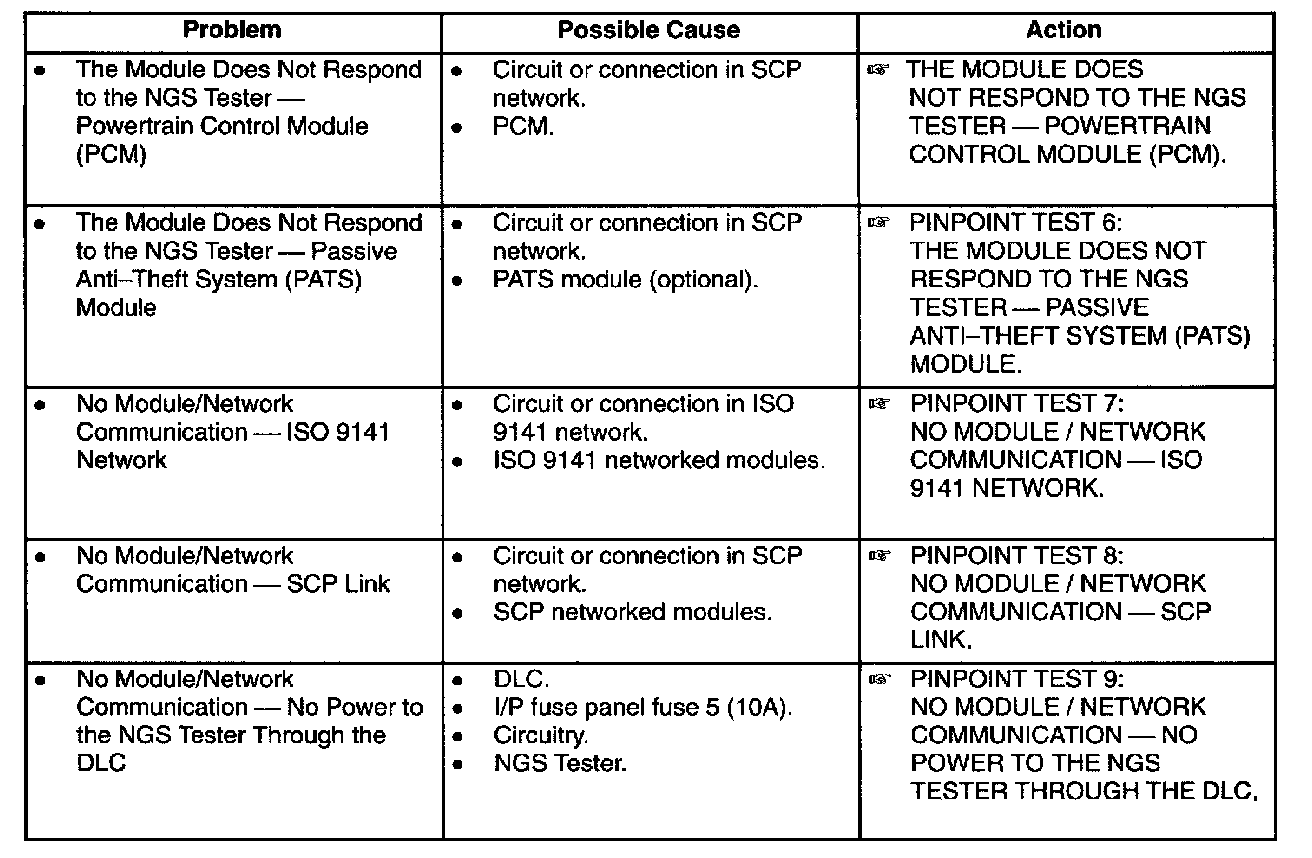

COMMUNICATIONS NETWORK SYMPTOM TROUBLESHOOTING CHART ( Part 2 Of 2 ):
