Component Tests and General Diagnostics

1. Verify the customer concern by operating the backup lamps.

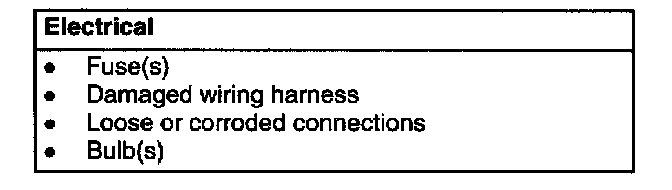

2. Visually inspect for obvious signs of electrical damage.
3. If the fault is not visually evident, determine the symptom and proceed to BACKUP LAMPS DIAGNOSIS.
