Windshield Defroster and Side Window Demister Nozzles

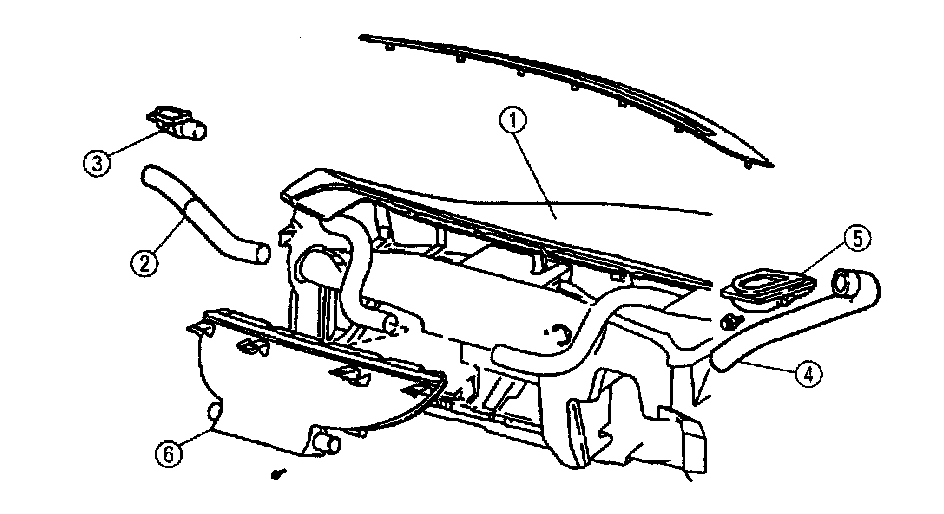

1. Remove the instrument panel (1). Refer to INTERIOR TRIM.
2. Remove the two screws and remove the LH side window demister hose (2) and duct (3).

Tightening Torque
2 - 3 Nm { 20 - 30 kgf.cm, 18 - 26 in.lbf }.

3. Remove the two screws and remove the RH side window demister hose (4) and duct (5).

Tightening Torque
2 - 3 Nm { 20 - 30 kgf.cm, 18 - 26 in.lbf }.

4. Remove the screws and remove the windshield defroster hose nozzle (6).

Tightening Torque
2 - 3 Nm { 20 - 30 kgf.cm, 18 - 26 in.lbf }.

5. Install in reverse order of removal.
