Radiator: Service and Repair

RADIATOR REMOVAL/INSTALLATION
1. Drain the engine coolant.

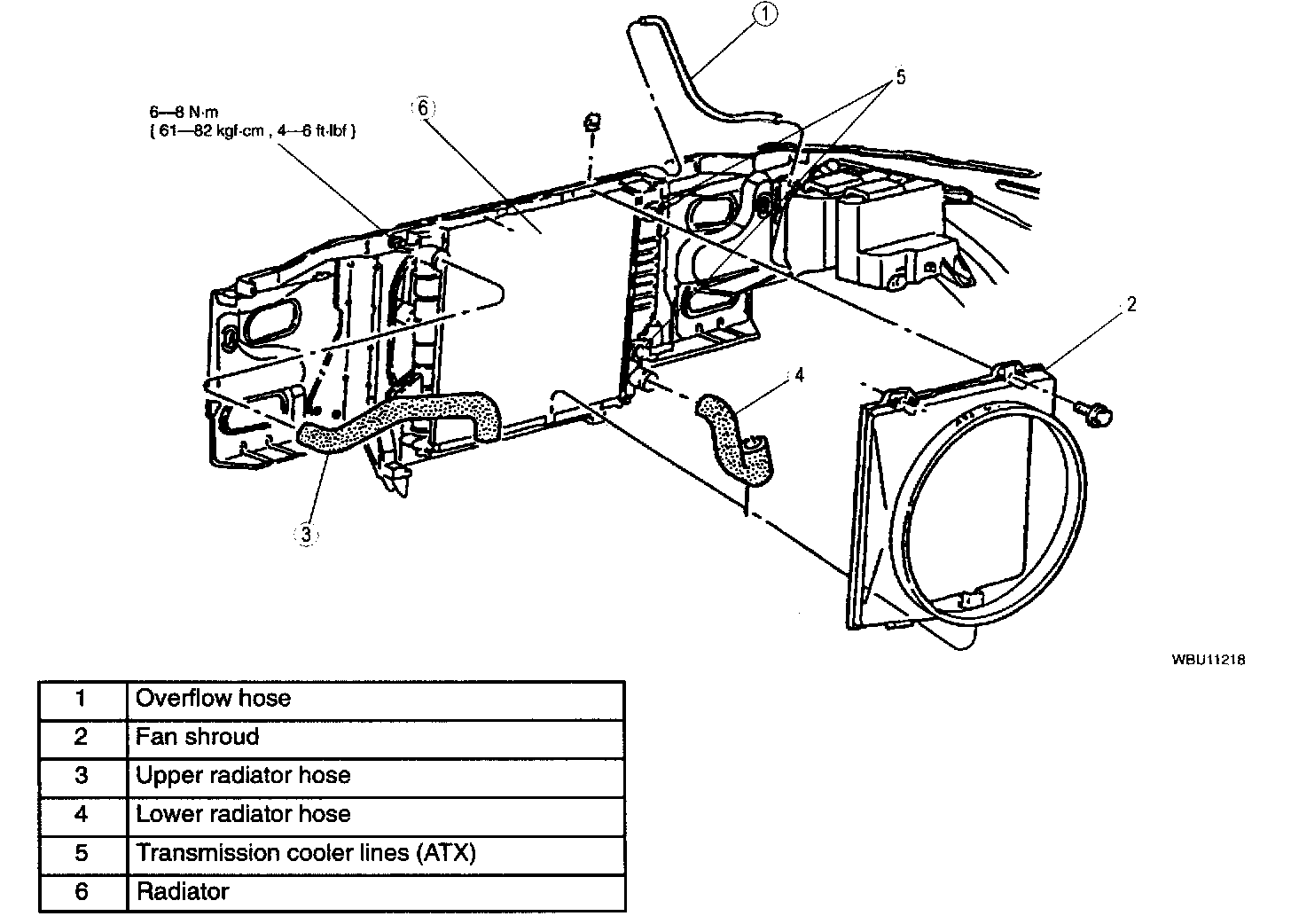

2. Remove in the order shown in the figure.
3. Install in reverse order or removal.

Steps After Procedure
1. Fill the radiator with the specified amount and type of engine coolant.
2. Start the engine and check for leaks.
3. Bleed the cooling system.
