Remote Anti-Theft Personality (RAP) System

T-2 Remote Anti-Theft Personality (RAP) System:

T-2a Remote Anti-Theft Personality (RAP) System:

T-2b Remote Anti-Theft Personality (RAP) System:

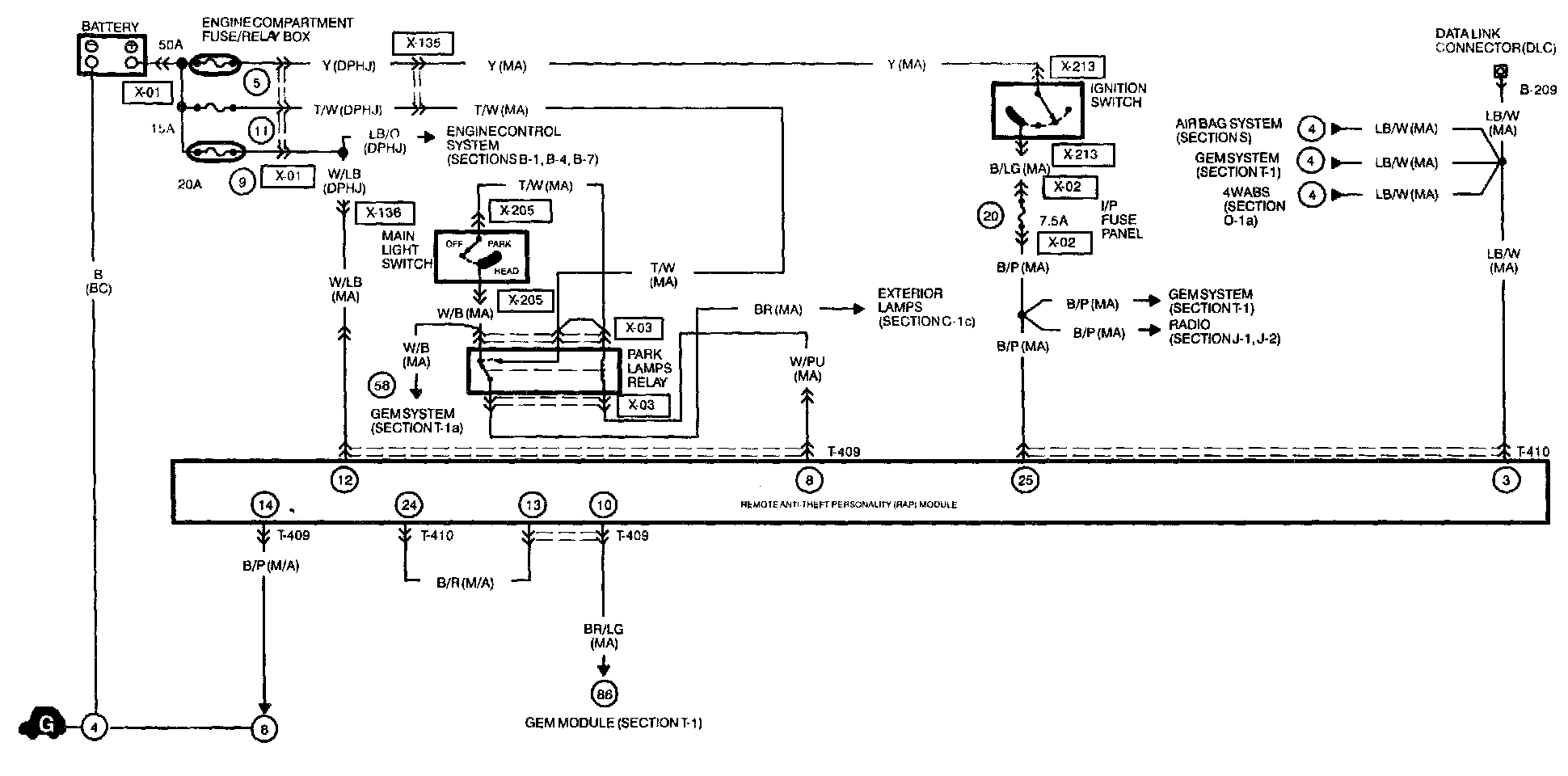

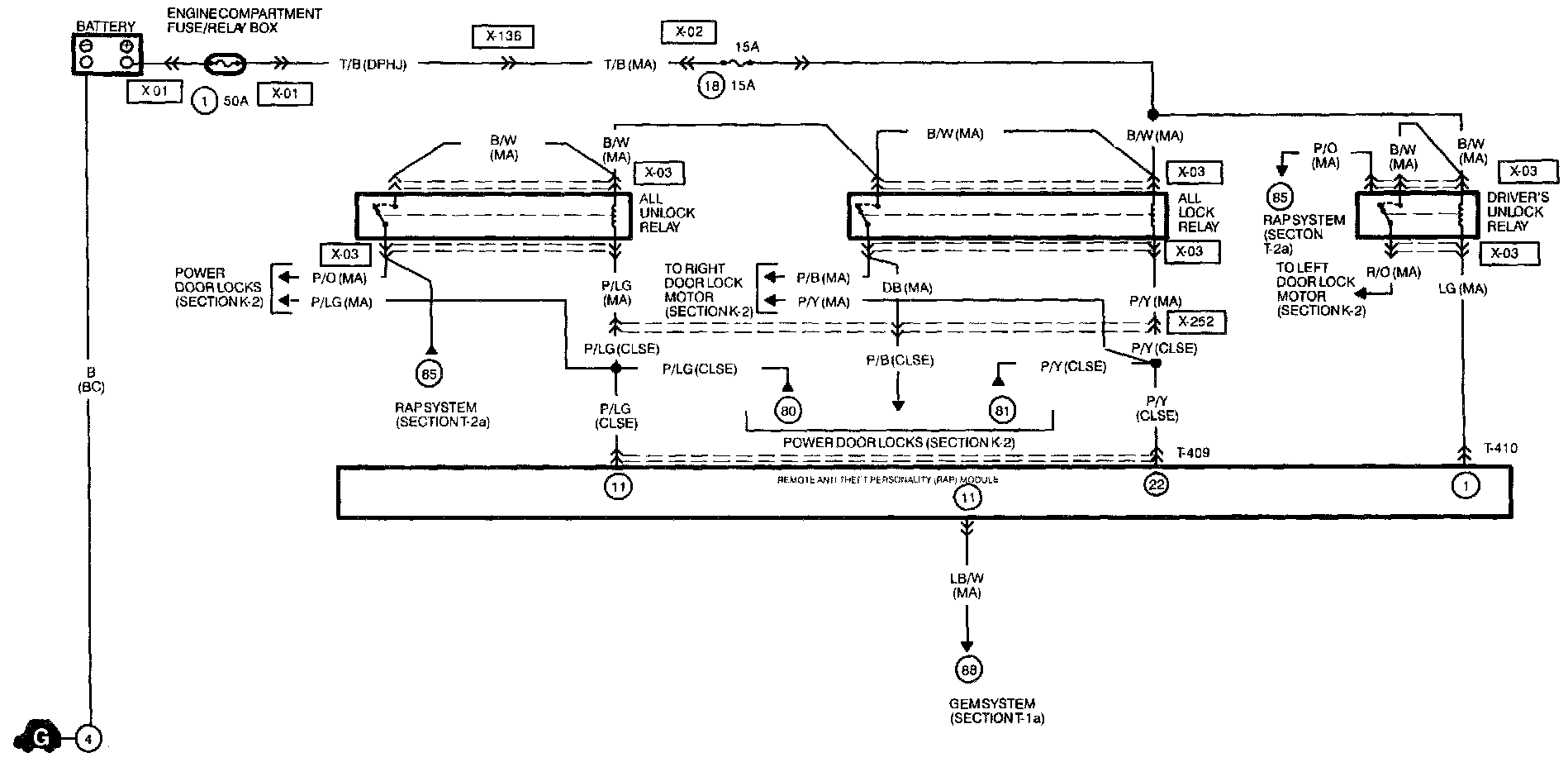

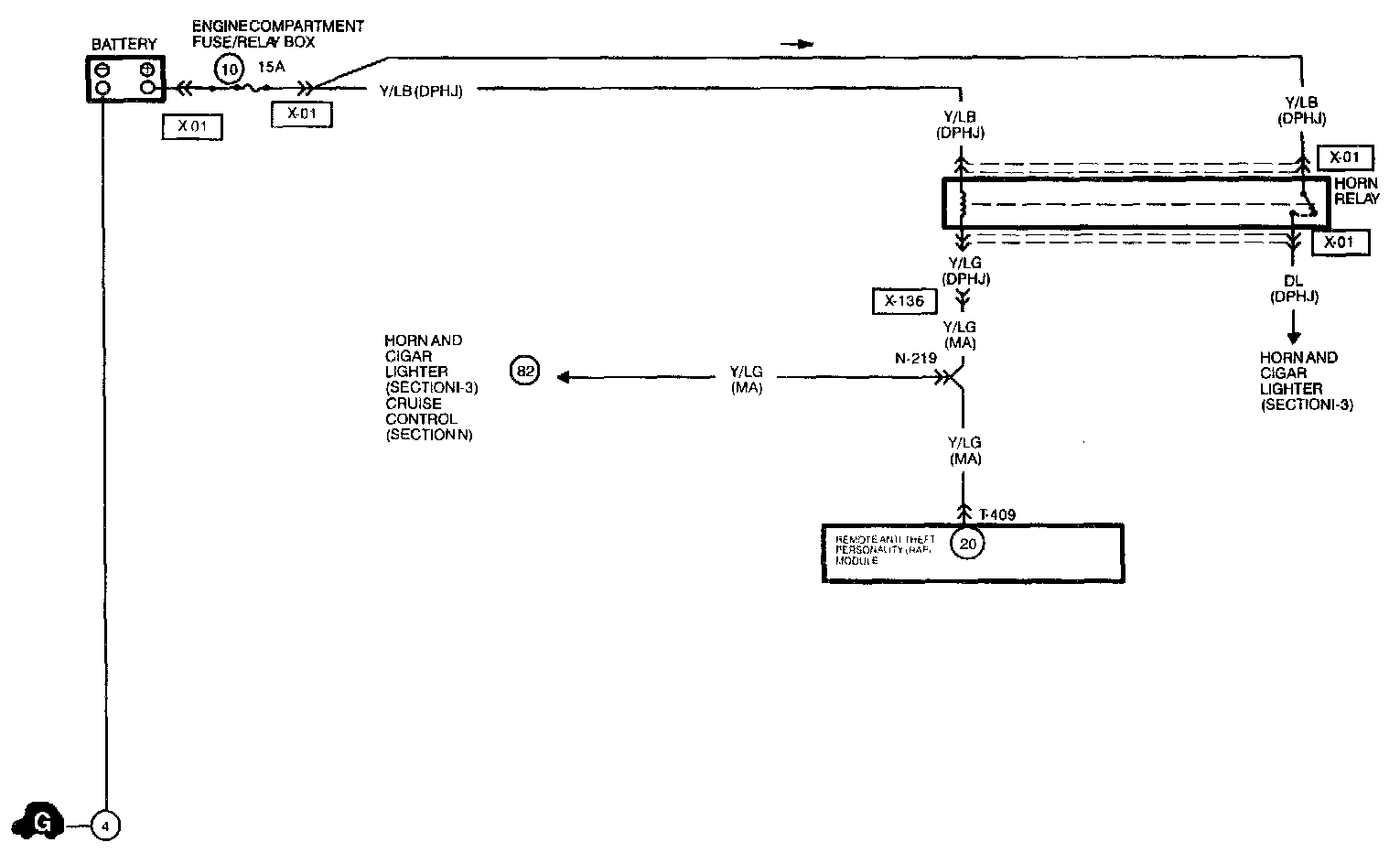

Electrical Diagram











Connector Views

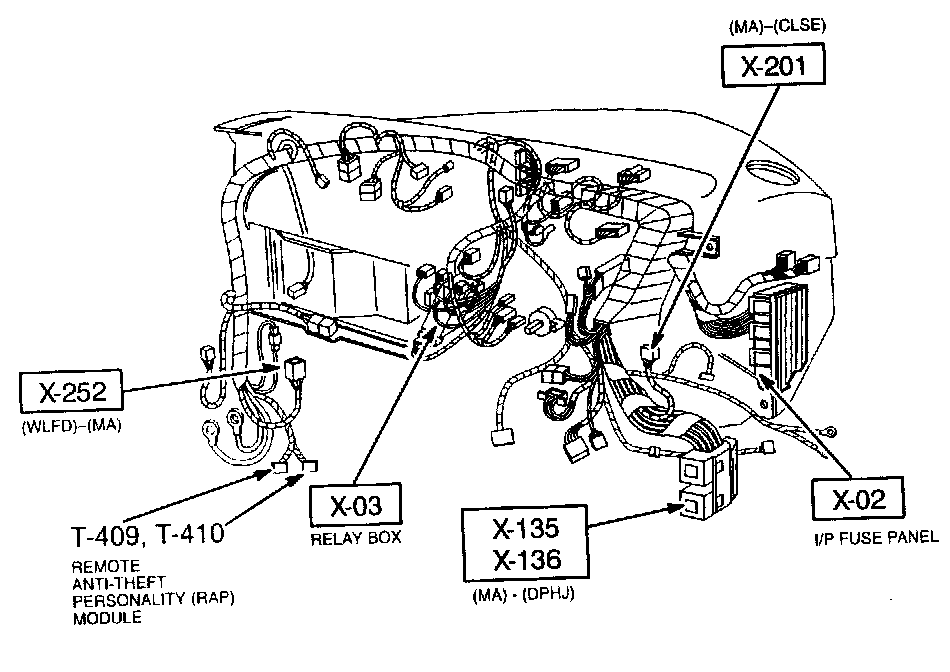

Connector Locations: Engine Compartment

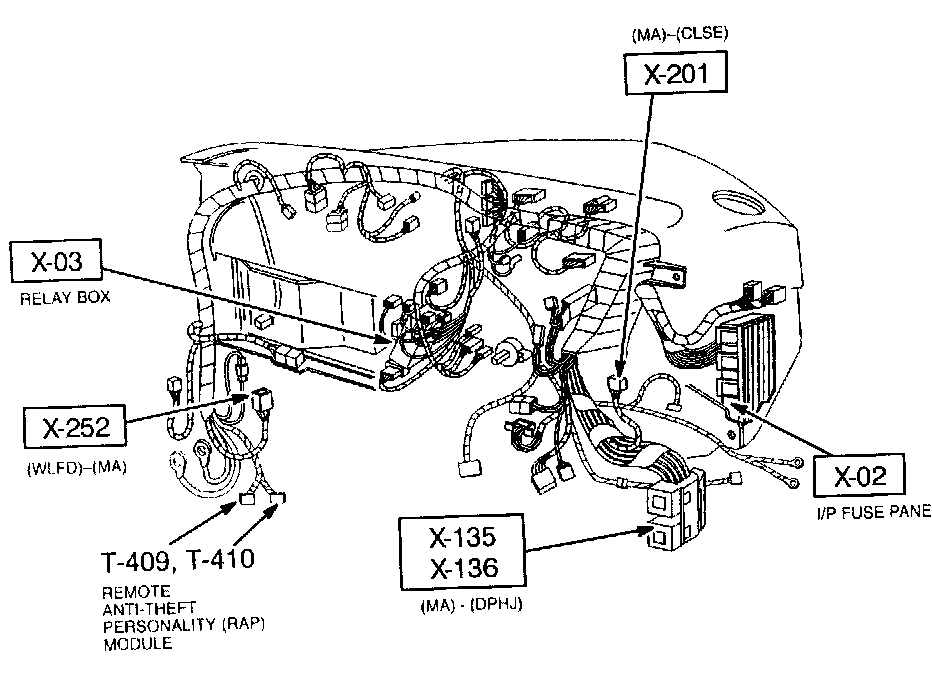

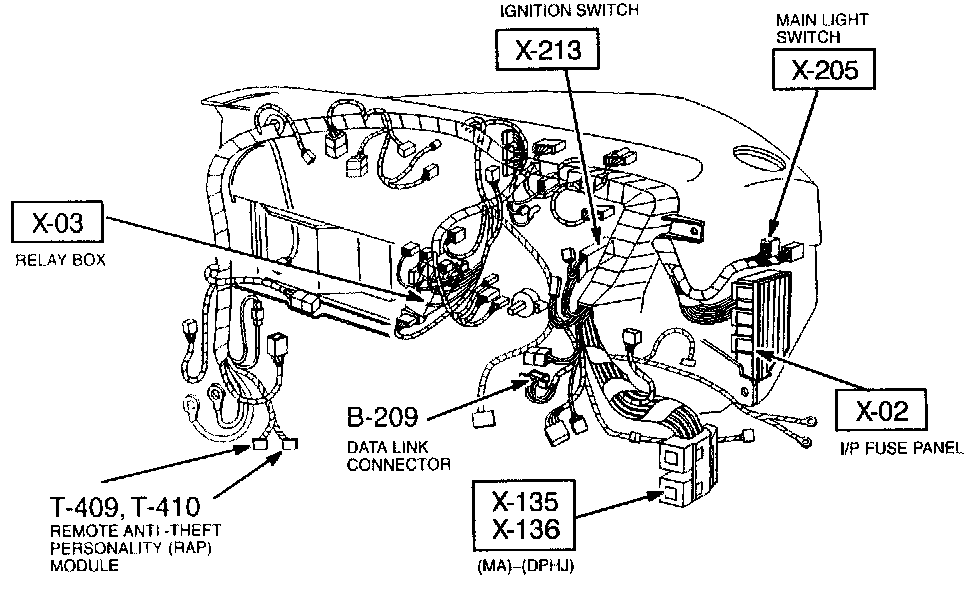

Connector Locations: Overall Vehicle and Dashboard

REFERENCED DIAGRAMS

In many instances electrical diagrams will refer you to another section to complete the circuit. These referenced sections can be found at vehicle level under "Diagrams."
Diagrams
