Disassembly and Reassembly

WHEEL CYLINDER DISASSEMBLY / ASSEMBLY

Note Removal is not necessary to disassemble, hone or overhaul the wheel cylinder.

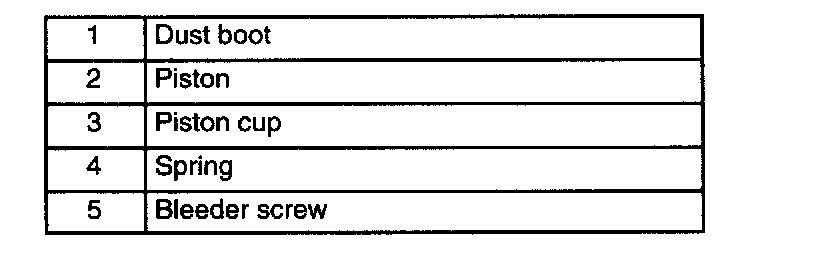

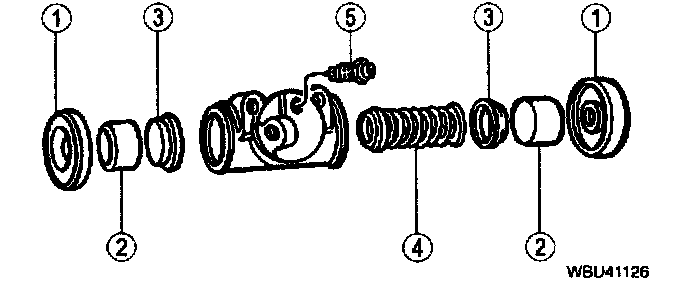

1. Disassemble in order shown.

Note Coat all wheel cylinder parts with the appropriate brake fluid.

2. Assemble in reverse order of disassembly.
