Automatic Transmission

BRAKE PEDAL (AUTOMATIC TRANSMISSION) REMOVAL/INSTALLATION

Note
^ Support the brake master cylinder and power brake booster in the engine compartment.
^ When removing the stoplight switch, retain the bushing and hairpin clip. They will be required for installation.

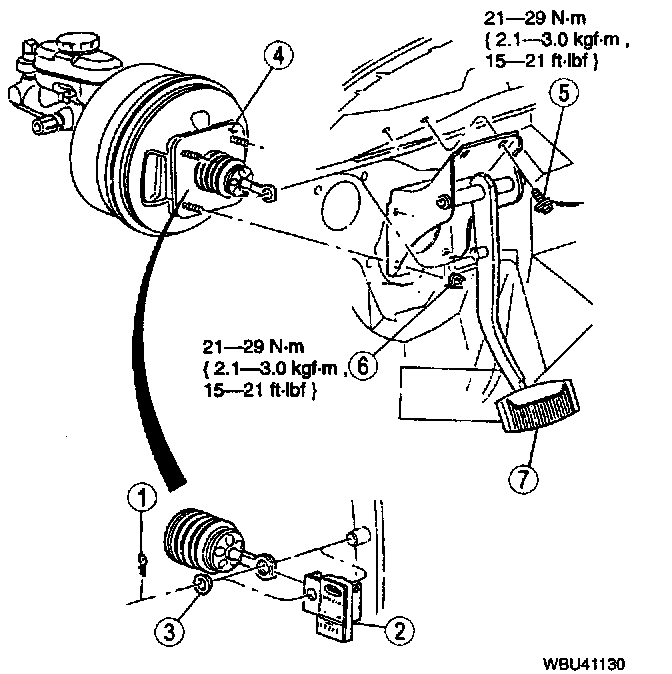

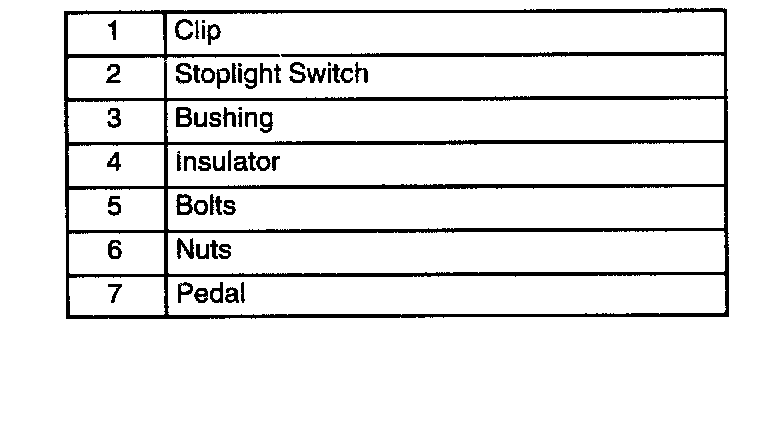

1. Remove in order shown in figure.
2. Install in reverse order of removal.
