RABS

RABS HYDRAULIC UNIT REMOVAL / INSTALLATION

Caution
^ Do not allow the brake master cylinder reservoir to run dry during the bleeding operation. Keep the brake master cylinder reservoir filled with the specified brake fluid. Never reuse the brake fluid that has been drained from the hydraulic system.
^ Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, immediately wash it with water.

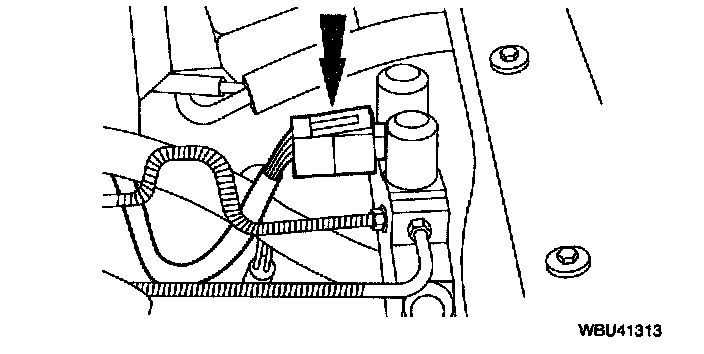

1. Disconnect the RABS proportioning valve switch connector O-1011.

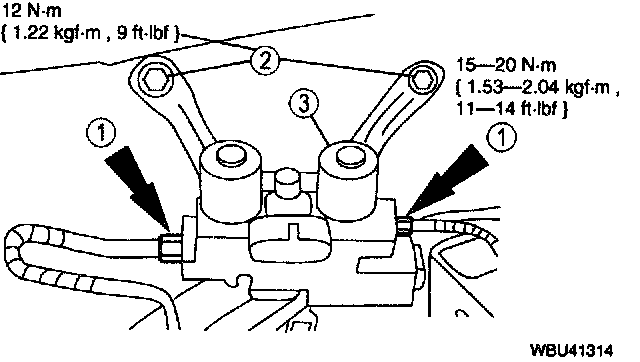

2. Remove in order shown in figure.
1) Hydraulic lines.
2) Bolts.
3) Hydraulic unit
3. Install in reverse order of removal.
1) Bleed the brakes; refer to Brake Bleeding; Service and Repair.
