Split Bench Seat Back (40)

1. Disassemble the front seat.

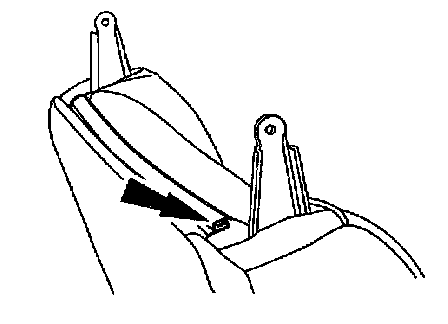

2. Unhook the seat back trim cover retainer.

CAUTION: Use care when separating the seat back trim cover from the hook and loop strips, or the hook and loop strips may be torn from the seat back foam.

3. Disengage the hook and loop strips and remove the seat back trim cover.

NOTE: Be careful when removing the seat back padding because it may be attached to the seat back frame with adhesive.

4. Remove the seat back padding from the seat back frame.
5. Remove the plastic bag.
6. Assemble in reverse order of disassembly.
