Spilt Bench Seat Base (60)

NOTE: Do not attempt this procedure unless replacement plastic rivets are available.

1. Disassemble the front seat.
2. Remove the armrest bracket covers.

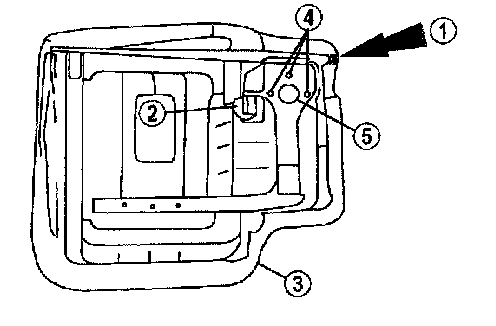

3. Remove in order shown in figure.
1. Hog ring
2. Rivet
3. Seat cushion trim
4. Bolts
5. Armrest bracket

CAUTION: Use care when separating the seat cushion trim cover from the hook and loop strips, or the hook and loop strips may be torn from the seat cushion foam.

4. Remove the seat cushion.
5. Assemble in reverse order of disassembly.
