Bucket Seat Base

NOTE: Do not attempt this procedure unless replacement plastic rivets are available.

1. Disassemble the front bucket seat.

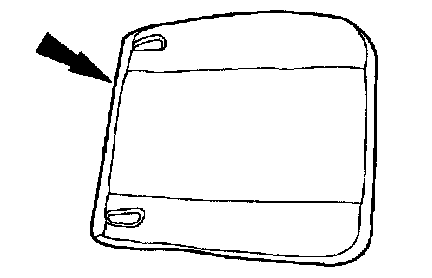

2. Disconnect the seat base trim from the frame.
- Remove and discard the rivets.

CAUTION: Use care when separating the seat cushion trim cover from the hook and loop strips, or the hook and loop strips may be torn from the seat cushion foam.




3. Remove the seat cushion trim from the hook and loop strips
4. Assemble in reverse order of disassembly.
