Bucket Seat

NOTE: Use care when separating the seat back from the seat base so the lumbar support cable does not become kinked or the operation of the lumbar support will be adversely affected.

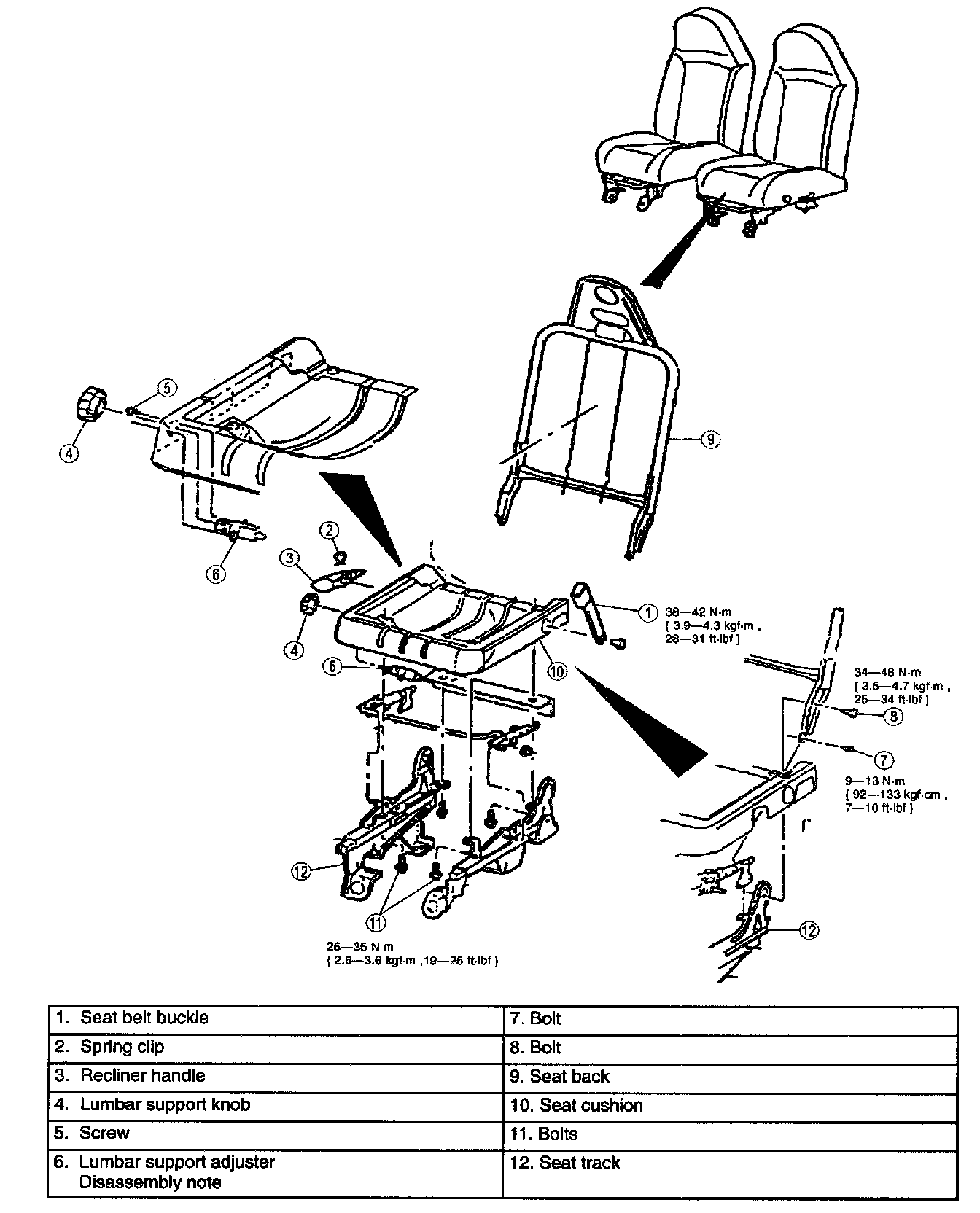

1. Disassemble in order shown in figure
2. Assemble in reverse order of disassembly.




Lumbar Support Adjuster Disassembly Note

NOTE: The lumbar support assembly must be fully relaxed.

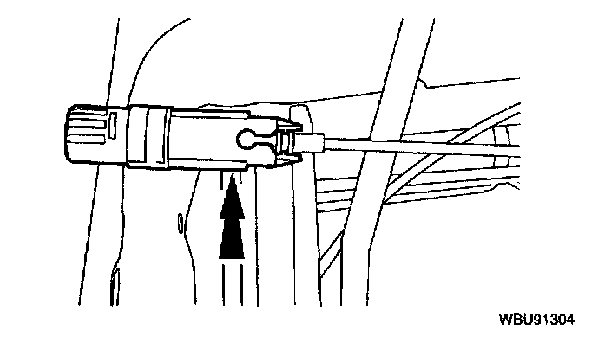

1. Separate the lumbar support adjuster from the adjuster cable.
