Seat Track: Service and Repair

1. Remove the front seat tracks.

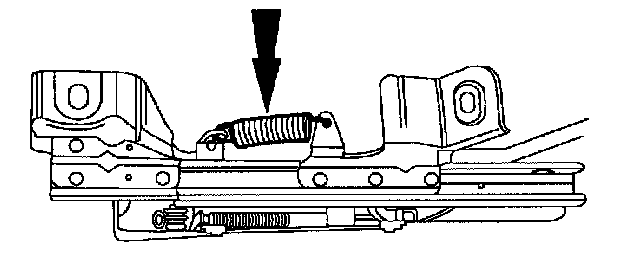

2. If equipped, remove the seat track return spring.

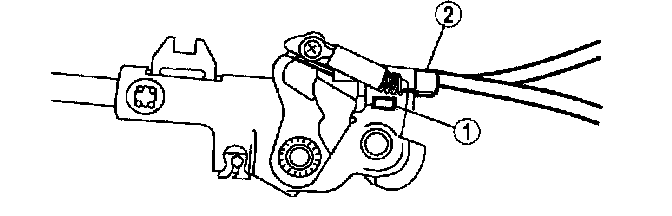

3. Remove the front seat back recliners.
1. Remove the two nuts.
2. Remove the front seat back recliners.

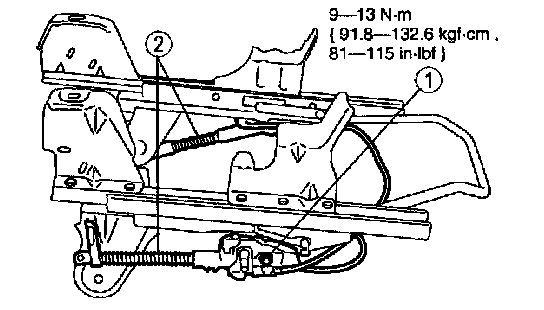

4. Remove the seat track release bar.
1. Remove the two speed nuts.
2. Remove the seat track release bar.

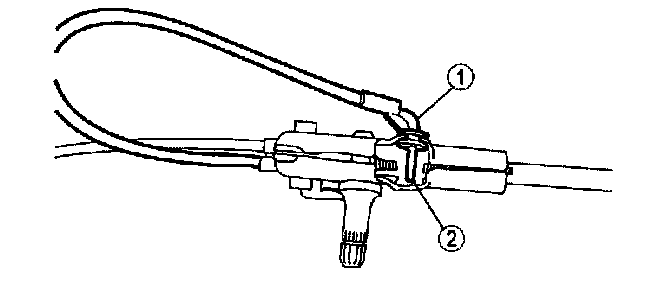

5. Disconnect the inboard end of the seat back recliner link cable.
1. Unhook the cable conduit.
2. Disconnect the inboard end of the seat back recliner link cable.

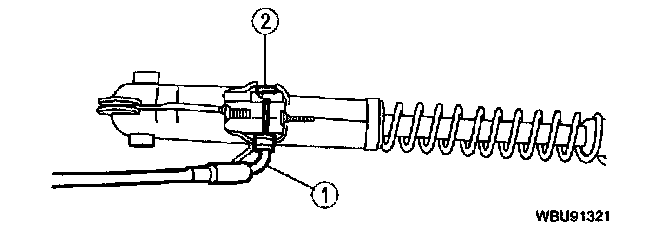

6. Disconnect the outboard end of the seat back recliner link cable.
1. Unhook the cable conduit.
2. Disconnect the outboard end of the seat back recliner link cable.

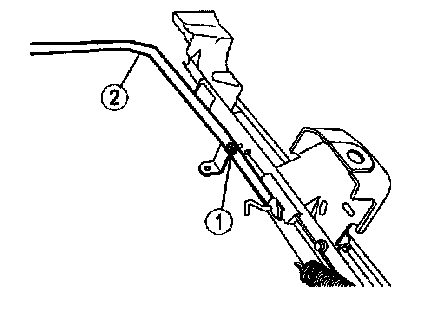

7. Remove the seat back recliner link cable.
1. Release the clip.
2. Remove the seat back recliner link cable.

8. Assemble in reverse order of disassembly.
