Power Mirror Switch: Testing and Inspection

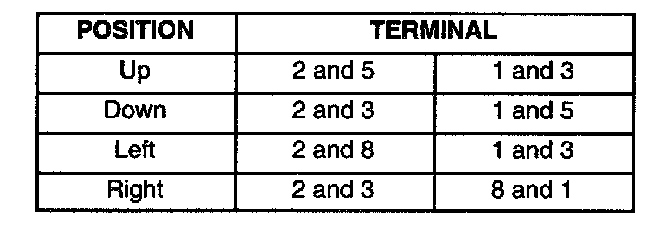

Left Mirror:

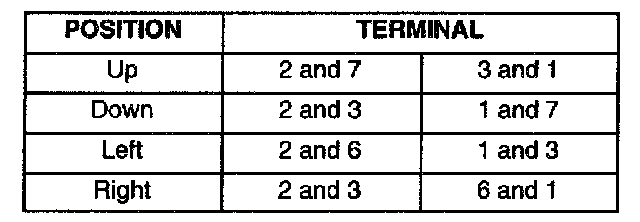

Right Mirror:

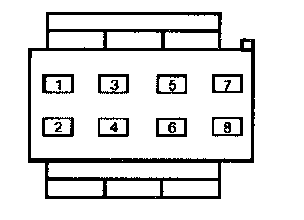

Use an ohmmeter to check for the continuity between the given terminals of the following table for the side that is not operating correctly.

If the resistances are less than 5 ohms, return to the appropriate diagnostic pinpoint test. Otherwise, replace the power outside mirror switch.
