Keyless Entry: Description and Operation

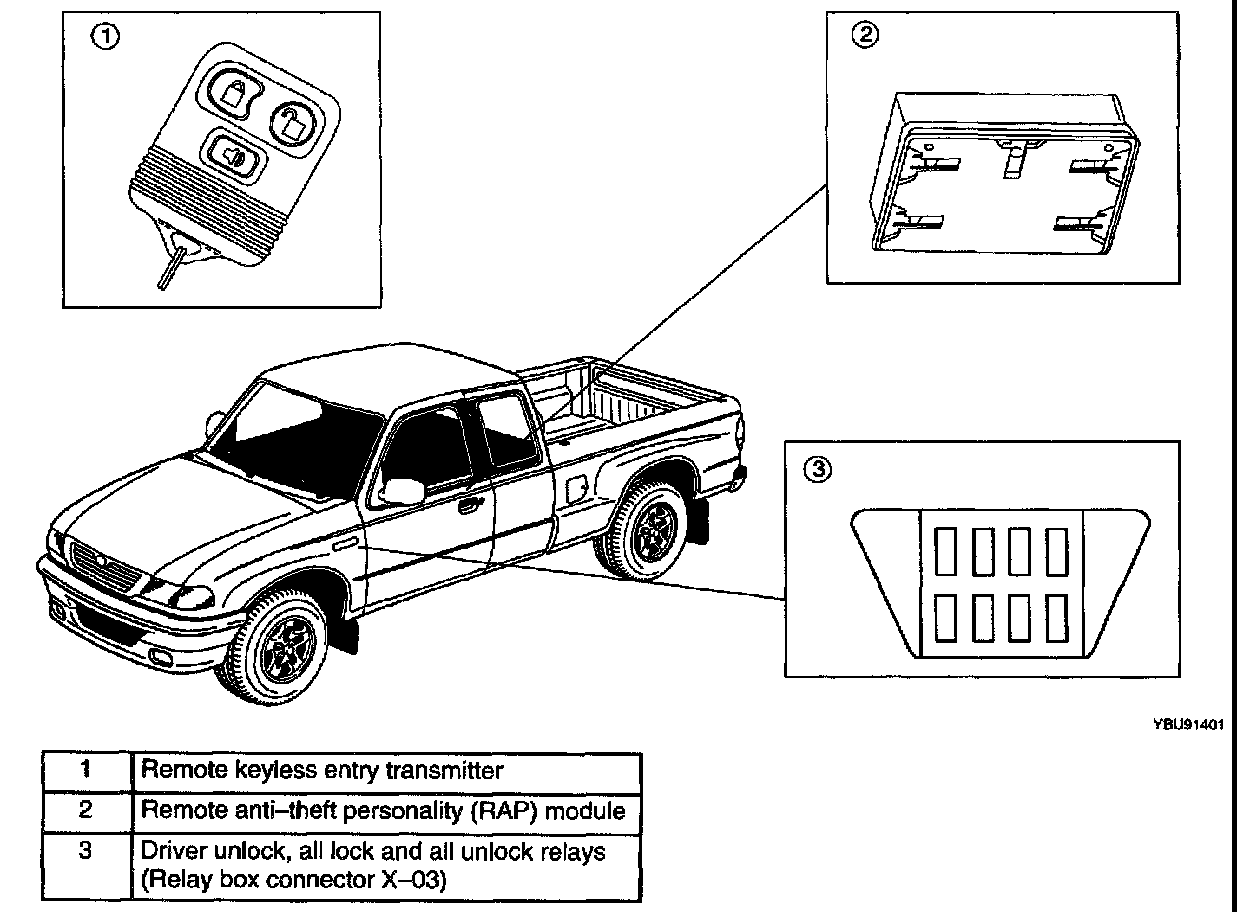

Remote Keyless Entry System Outline
The remote keyless entry system consists of the following:
- RAP module.
- Remote keyless entry transmitters.

NOTE: Remote keyless entry features will not function when the key is in the RUN or ACC position.




Remote Keyless Entry Component Part Description

RAP Module
- The RAP module controls the door locks through the use of three external relays located in the relay box on the left-hand side of the lower instrument panel.

Remote Keyless Entry Transmitters
- Remote keyless entry transmitters are programmable.
- All transmitters for the vehicle must be set at the same time.
- To unlock the driver door, press the unlock button on the transmitter one time. To unlock both doors, press the unlock button a second time within five seconds.
- To lock all doors, press the lock button on the transmitter one time. To confirm that the doors have locked, press the lock button a second time within five seconds. The horn will chirp once to notify that all doors are closed and locked and the alarm is armed. The horn will chirp twice if any door is still ajar.
- To activate the panic alarm, press the red panic button on either transmitter. The horn will sound and the parking lamps will flash for a maximum of three minutes.
- To deactivate the panic alarm, press the red panic button again or turn the ignition to the RUN position.
