Center Instrument Panel Register

1. Disconnect the battery ground cable.
2. Use Radio Removing Tool SST 49-UN01-050 to remove the radio chassis and
3. Disconnect the antenna lead and the wire harness connectors from the radio.
4. Remove the center trim finish panel.

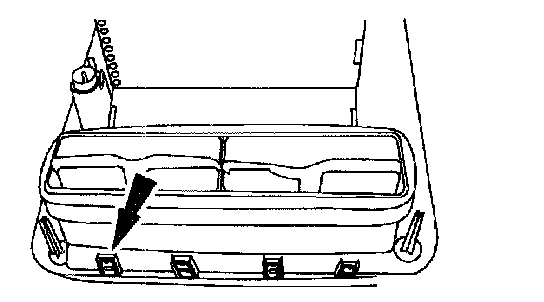

5. Disconnect the wire harness connectors.




6. Release the eight clips and remove the center instrument panel register from the center trim finish panel.
7. Install in reverse order of removal.

Tightening torque
2 - 3 Nm { 20 - 31 kgf.cm, 18 - 26 in.lbf }.
