Remote Anti-Theft Personality (RAP) Module

CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.

1. Disconnect the negative battery cable.
2. Remove the left hand B-pillar trim panel.

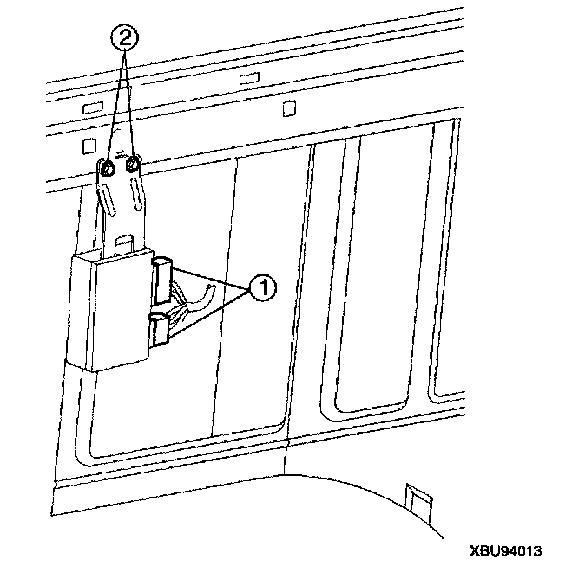

3. Remove the RAP module.
1. Disconnect electrical connectors.
2. Remove the bolts.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 10 miles (16 km) or more to relearn the strategy.

4. Install in reverse order of removal.

Tightening torque
10 - 14 Nm { 102 - 143 kgf.cm, 89 - 125 in.lbf }
