Antilock Brakes / Traction Control Systems

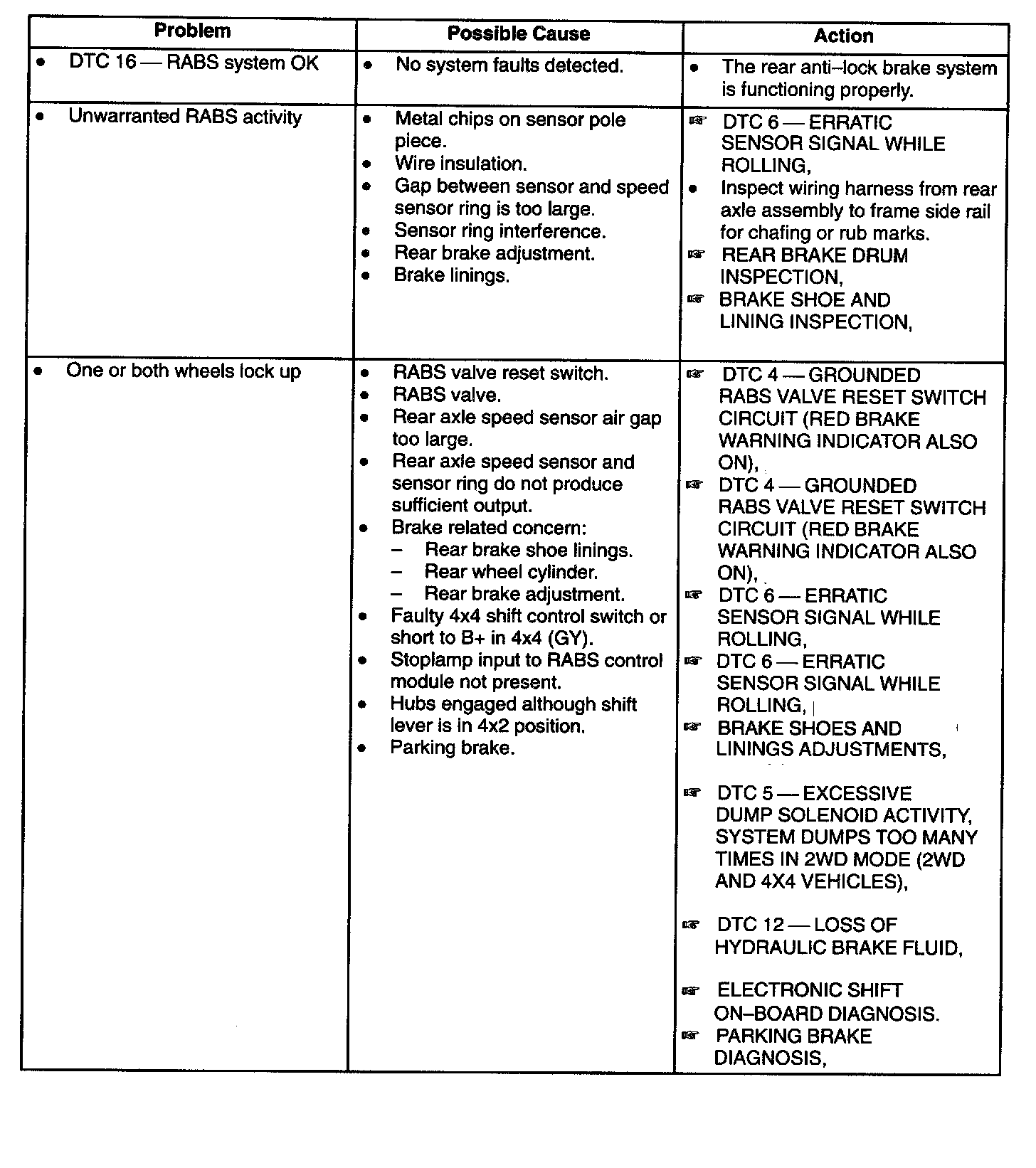

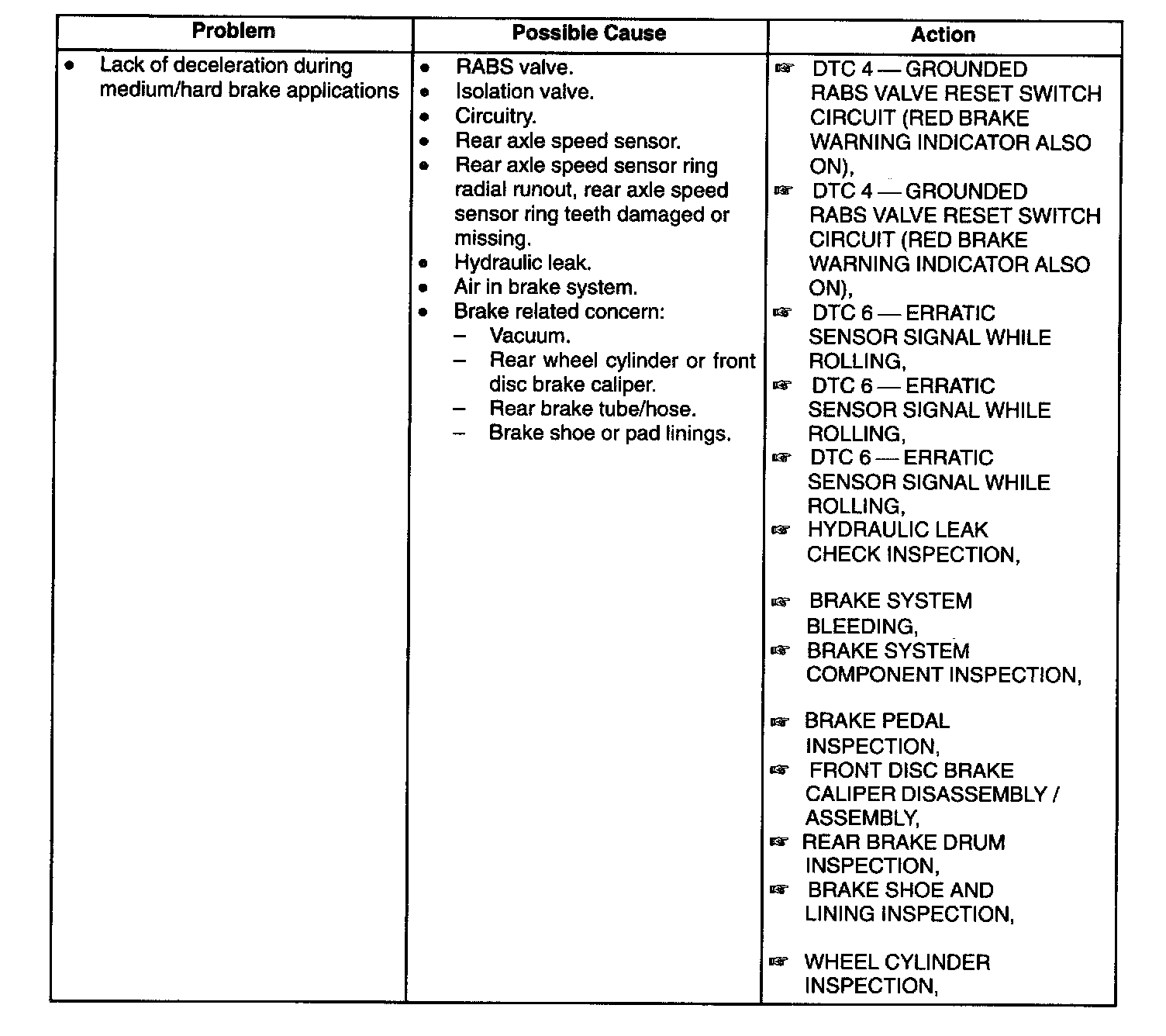

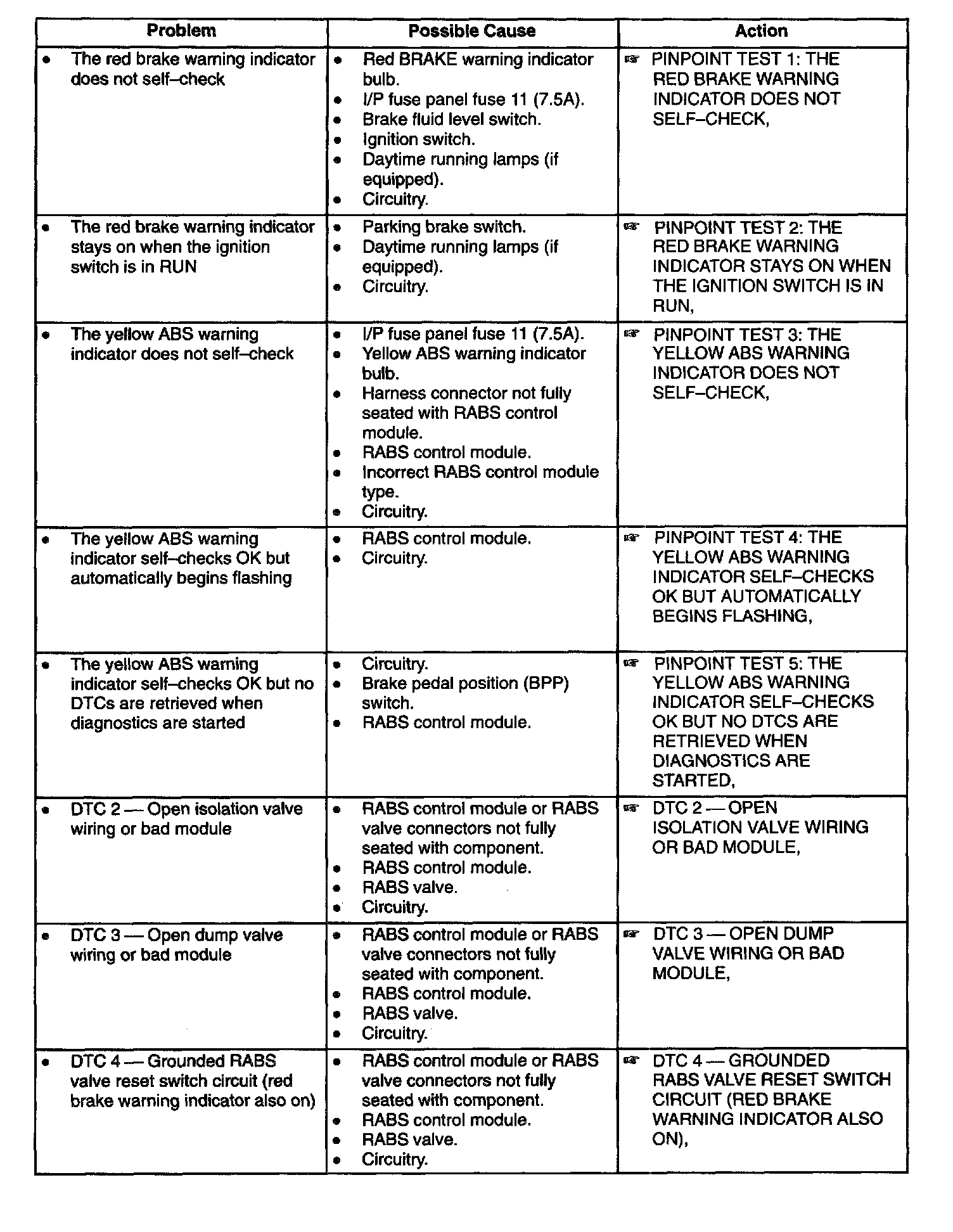

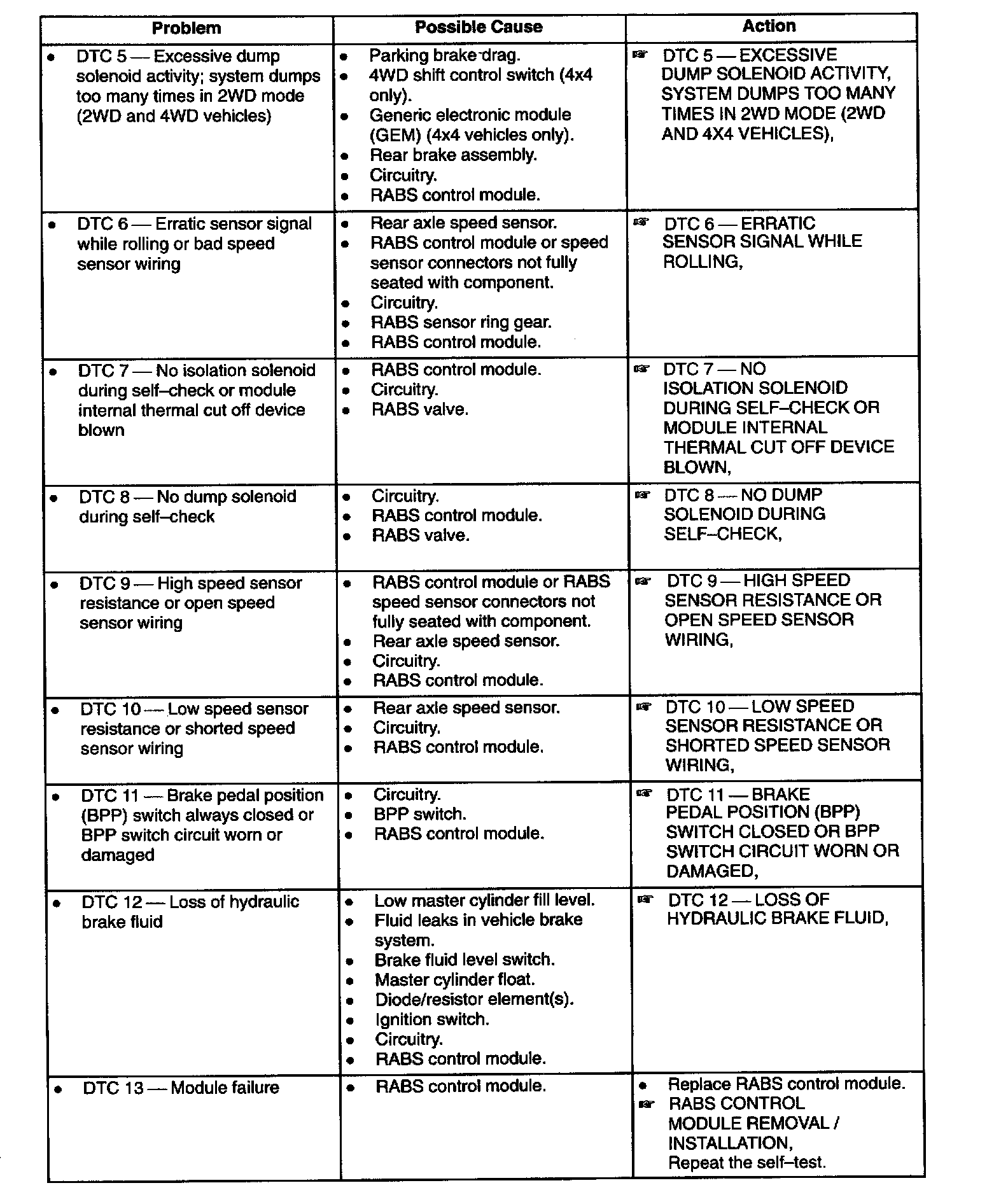

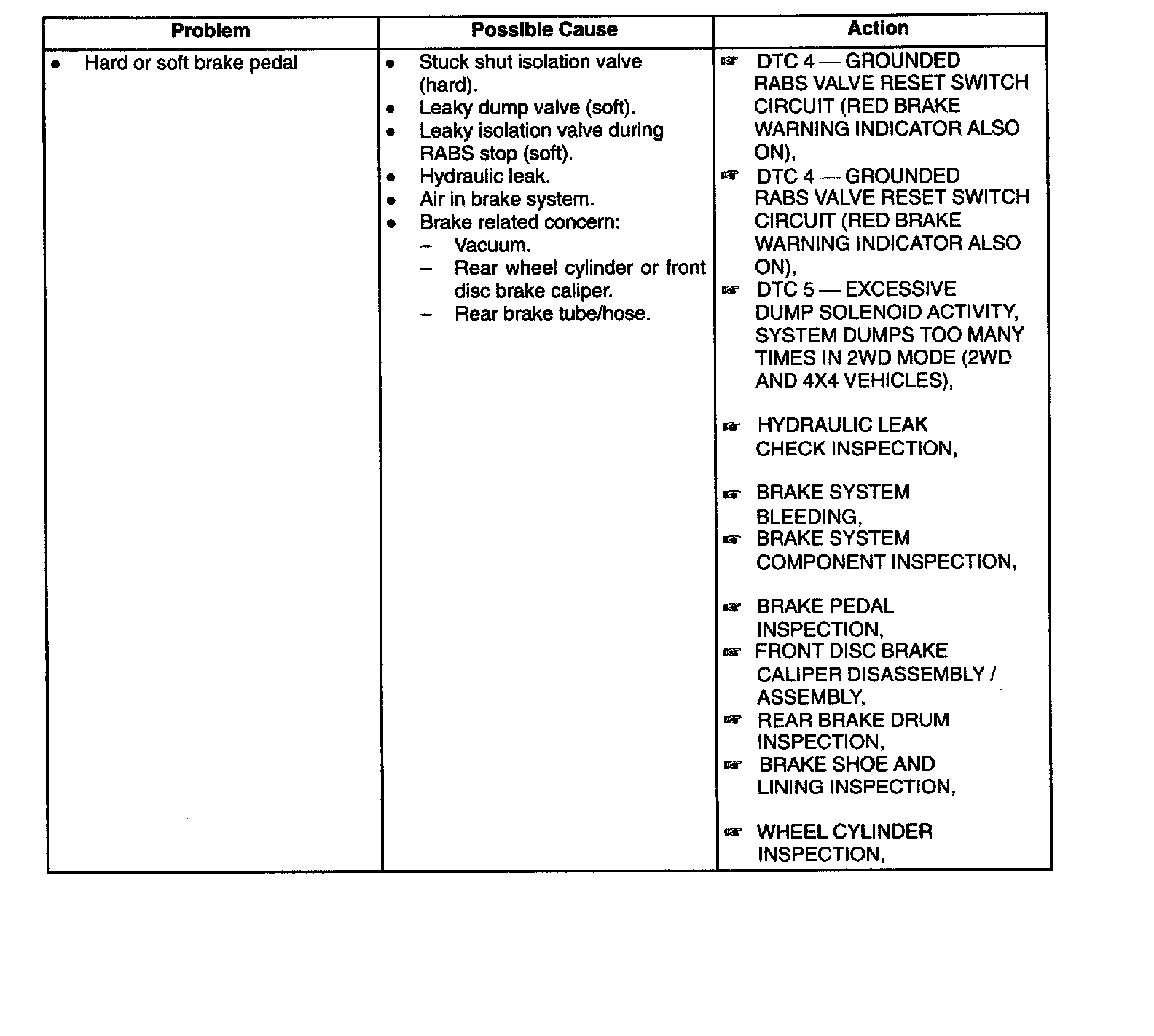

RABS DIAGNOSTIC INDEXThere are times when a customer concern will not cause the yellow ABS warning indicator to illuminate or a code to be stored.
The RABS Diagnostic Index gives the technician a starting point in resolving these types of concerns. The index also describes conditions that will illuminate the yellow ABS warning indicator.
Please note that the red brake warning indicator diagnosis procedure is required prior to performing tests. Failure to carry out this procedure will greatly diminish the effectiveness of the diagnosis.

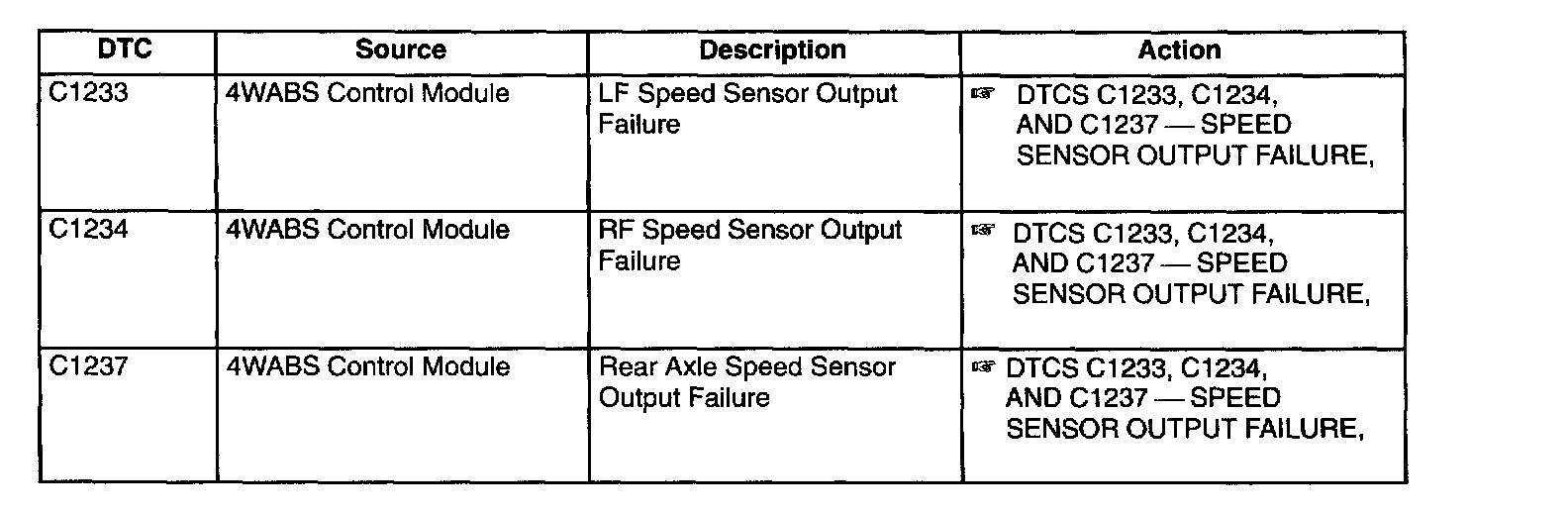

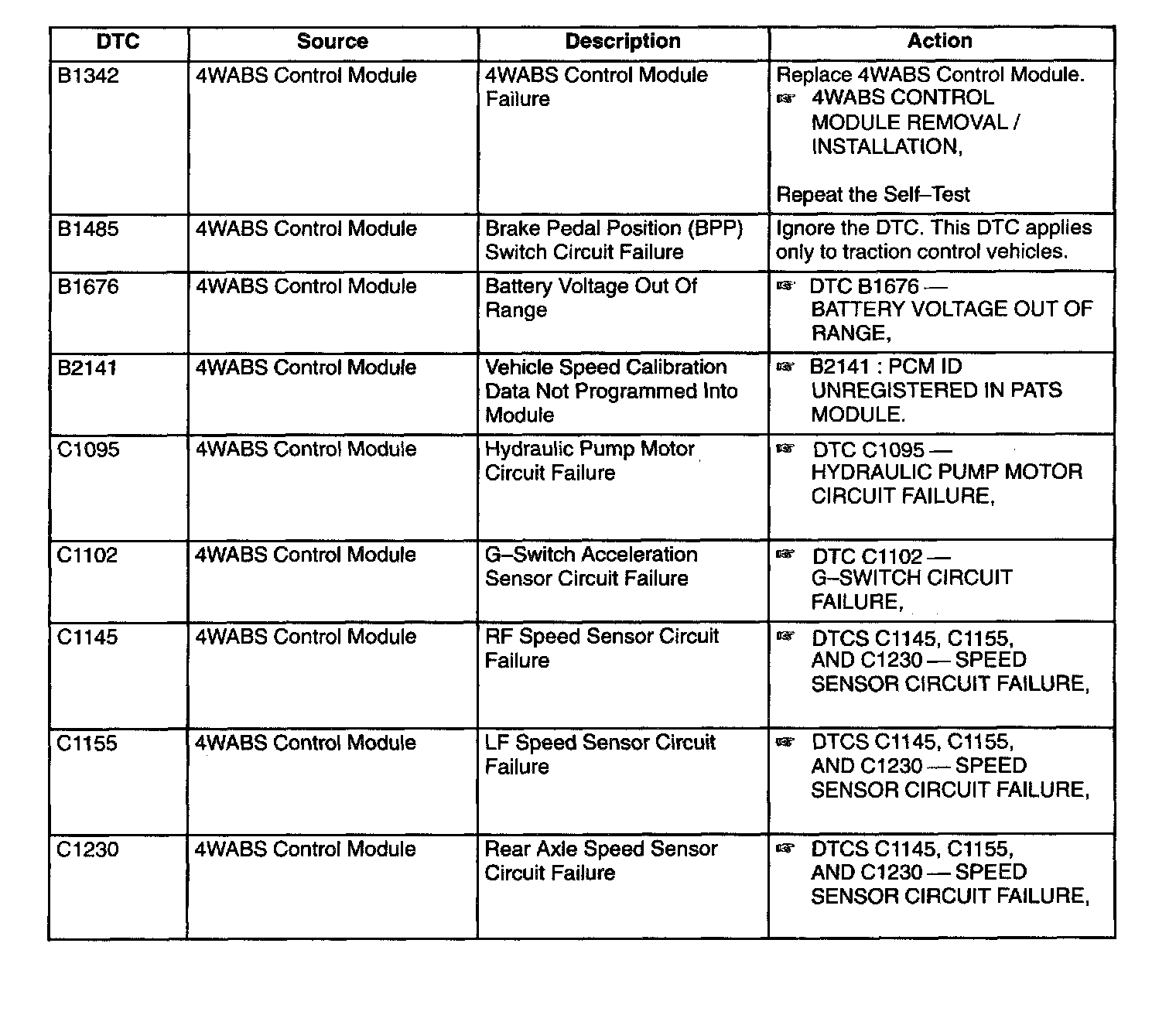

4WABS DTC INDEX
