N - Ignition / Erratic Diagnostic Monitor (IDM)

Enter this Pinpoint Test only when service code 14, 16, 18, 19 or 45 is received during Quick Test, when directed here from Quick Test step 9.0 (Diagnosis By Symptom) or from IGNITION SYSTEMS.

This Pinpoint Test is only intended to diagnose the following:

1. Harness circuits: IGN GND, SPOUT, PIP, IDM, DPI, SAW.
2. ECA computer processor.

To prevent replacement of good components, be aware that these non-EEC areas may be faulty:

1. EDIS ignition module.
2. EDIS coil packs.
3. Spark plugs and spark plug wires.
4. Arcing secondary ignition components.

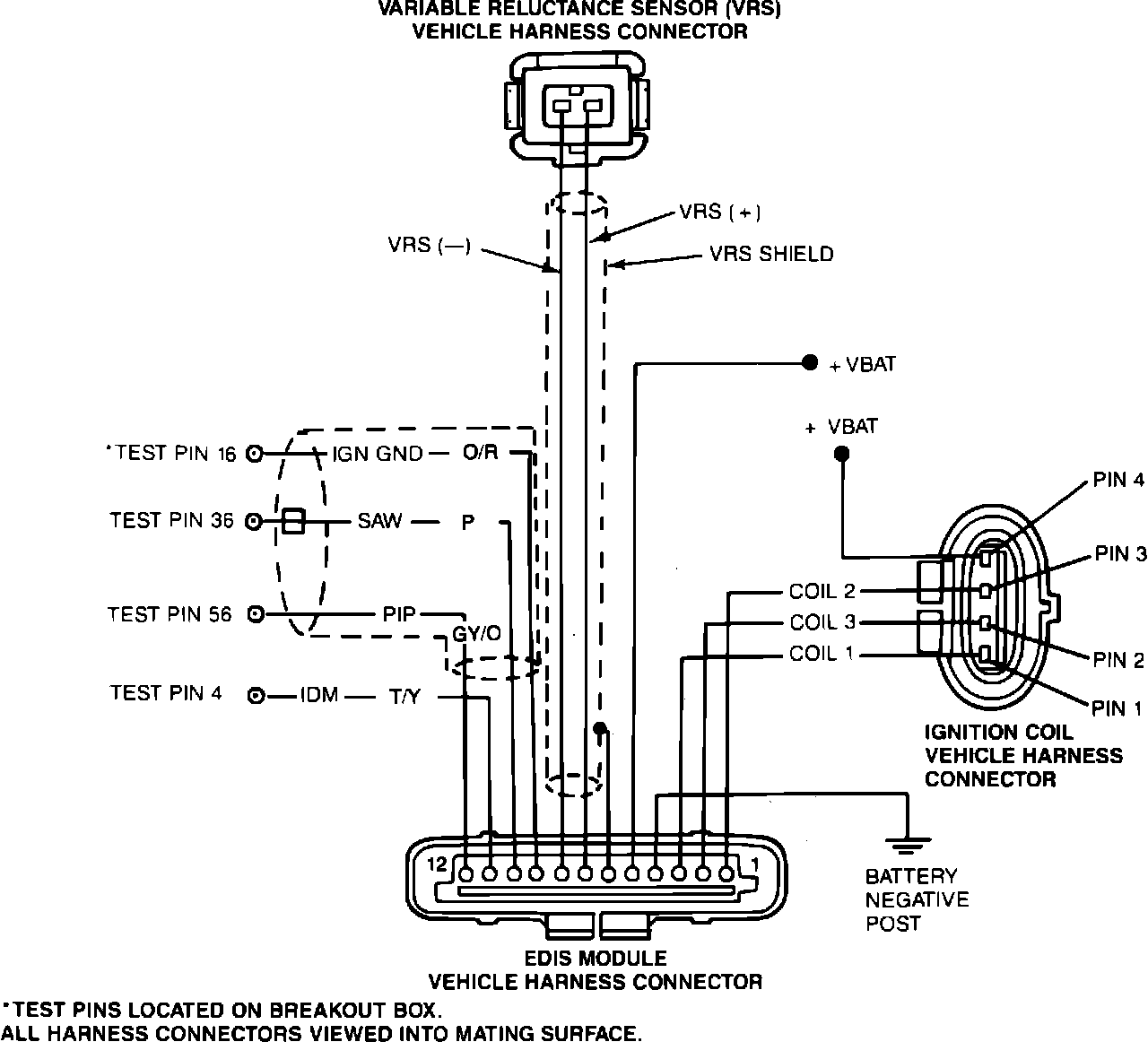

PINPOINT TEST N SCHEMATIC

Pinpoint Test N Schematic:

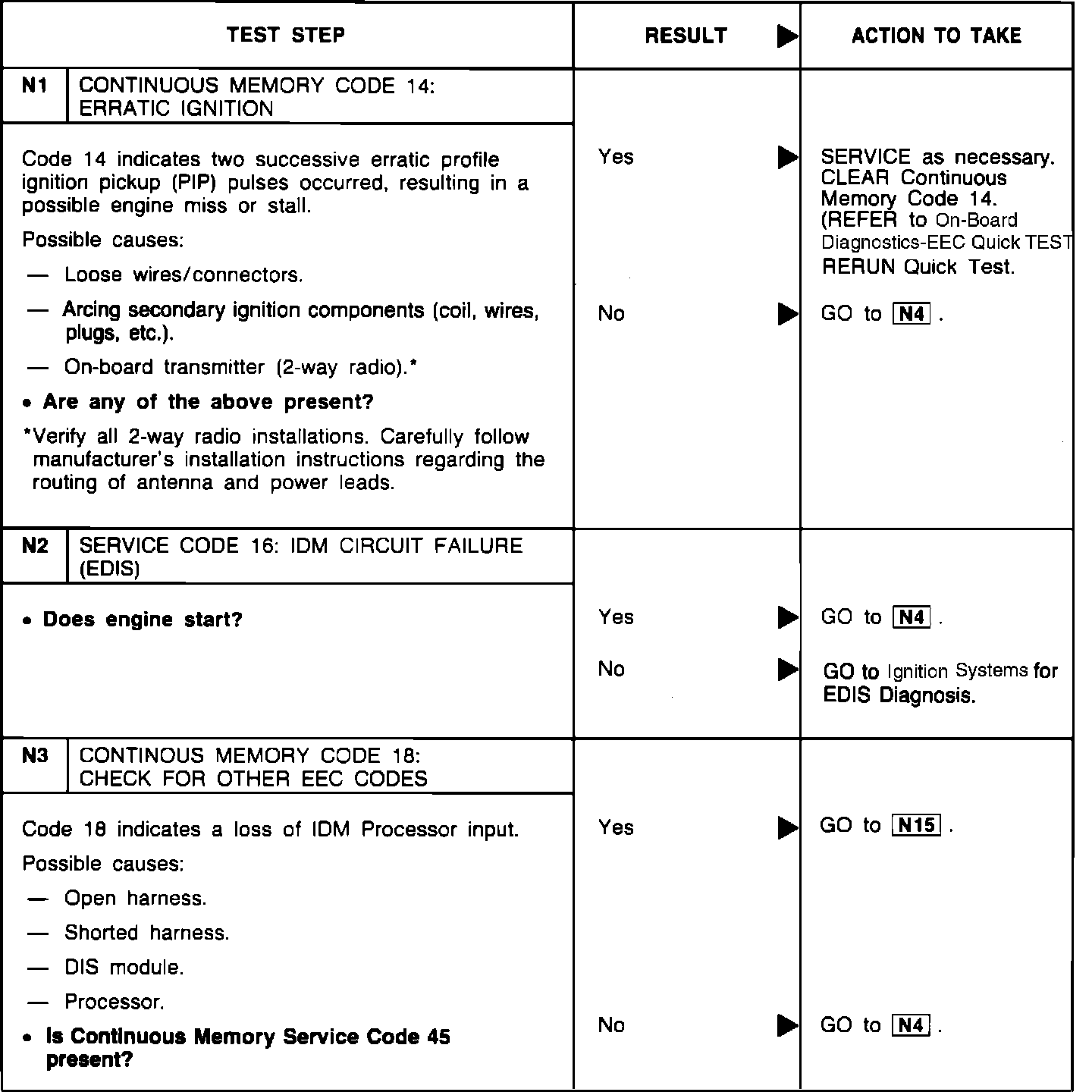

TEST STEPS N1 - N3

Test Steps N1 - N3:

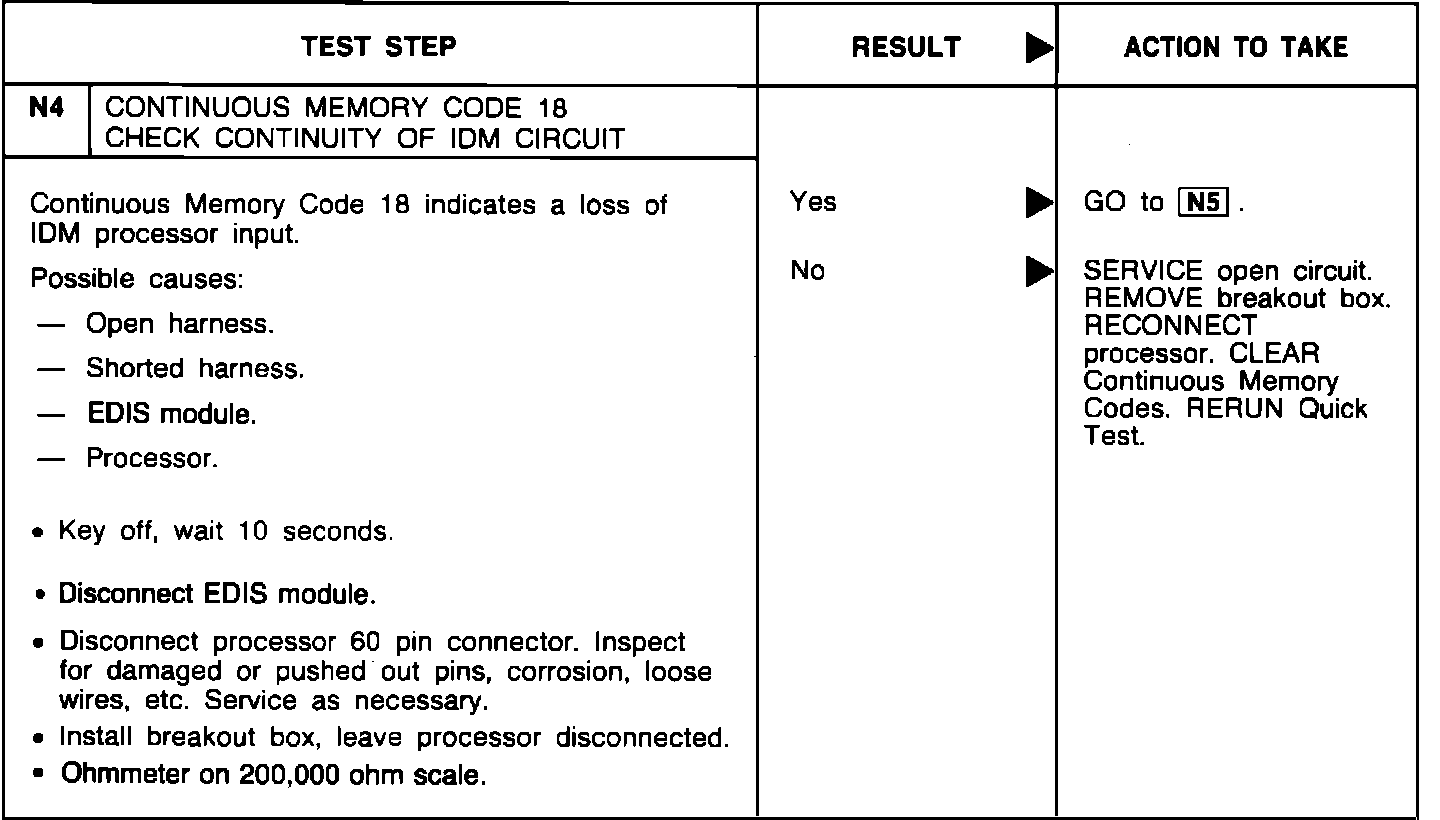

TEST STEP N4

Test Step N4:

TEST STEPS N4 - N6

Test Steps N4 - N6:

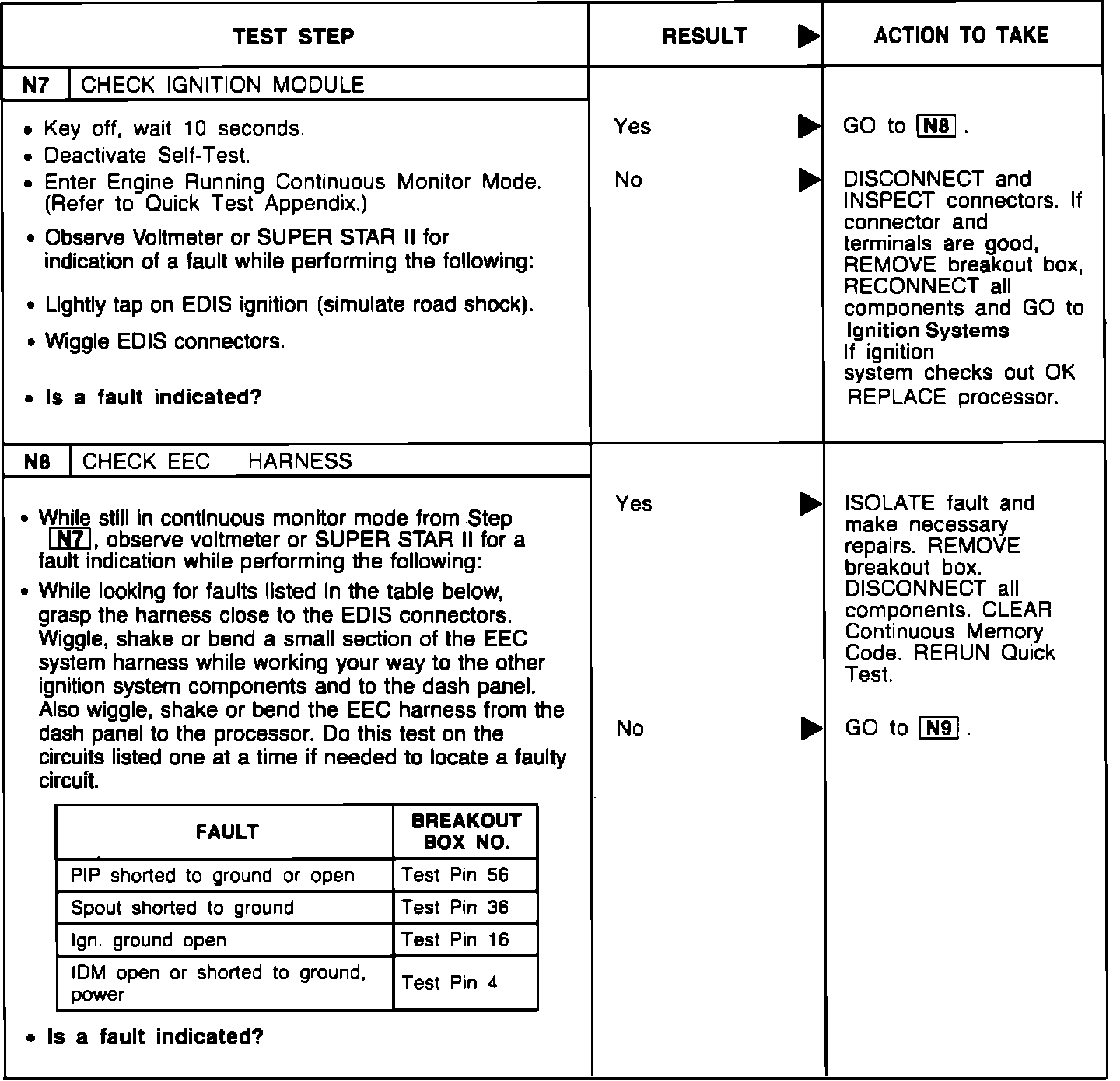

TEST STEPS N7 - N8

Test Steps N7 - N8:

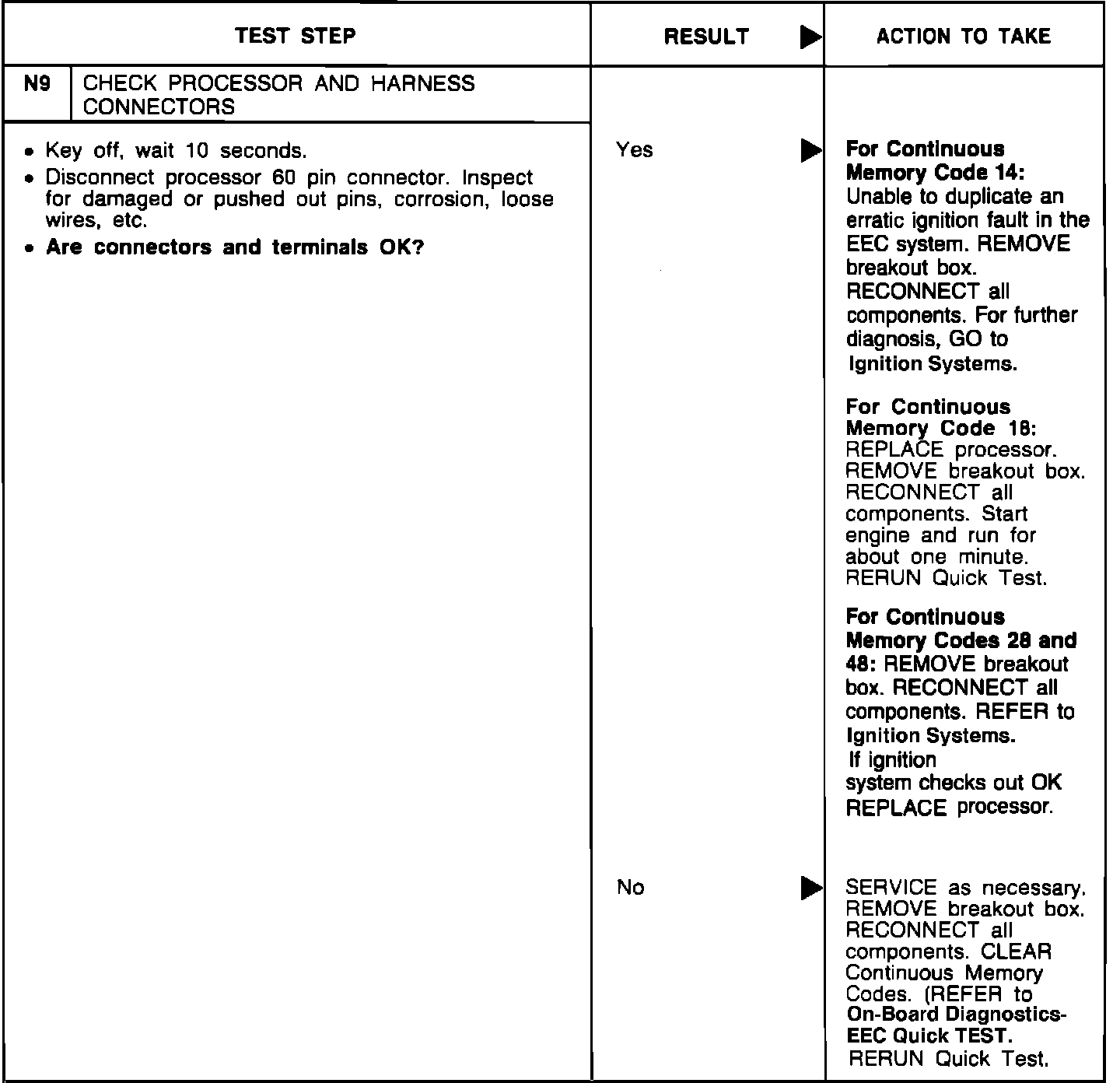

TEST STEP N9

Test Step N9:

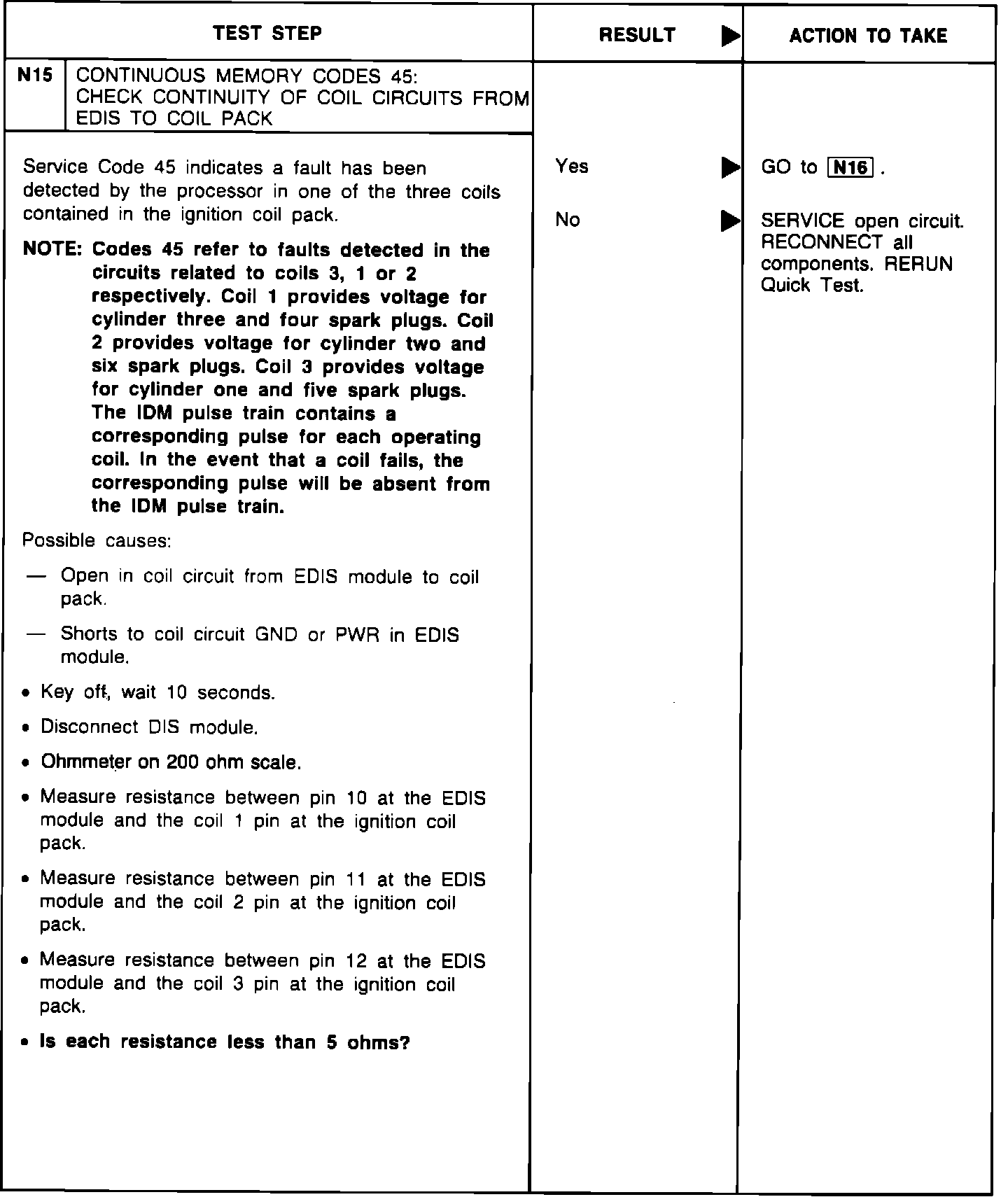

TEST STEP N15

Test Step N15:

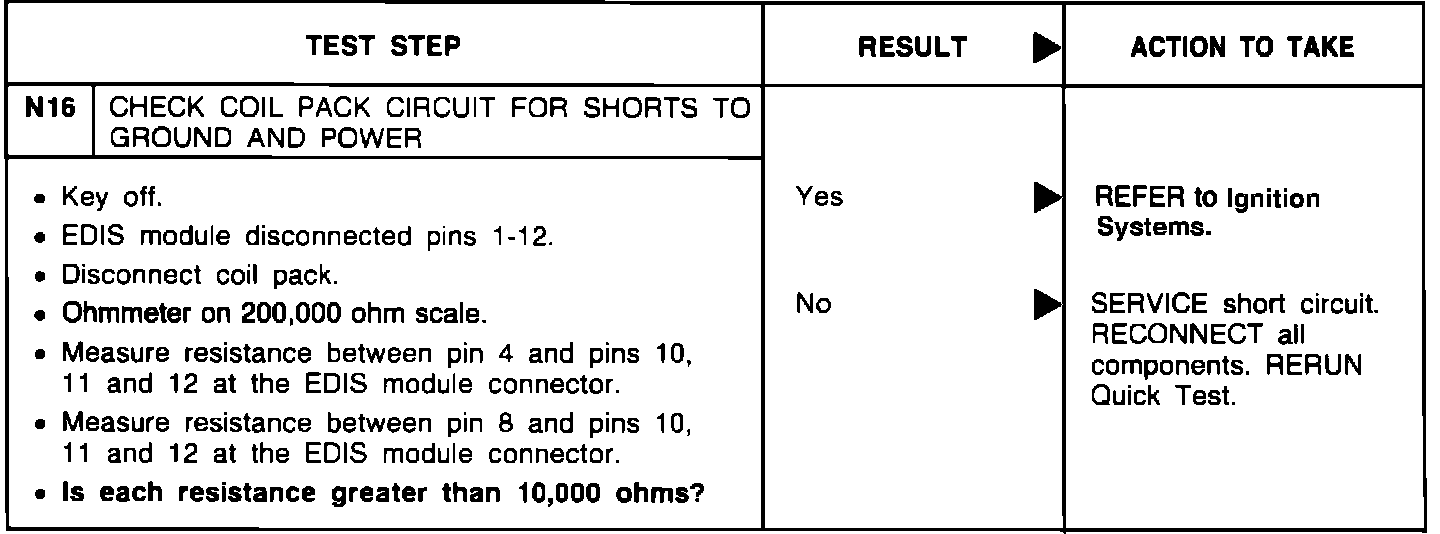

TEST STEP N16

Test Step N16:
