Home
>>
Mazda Truck
>>
1991
>>
Navajo 2WD V6-4.0L OHV
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>

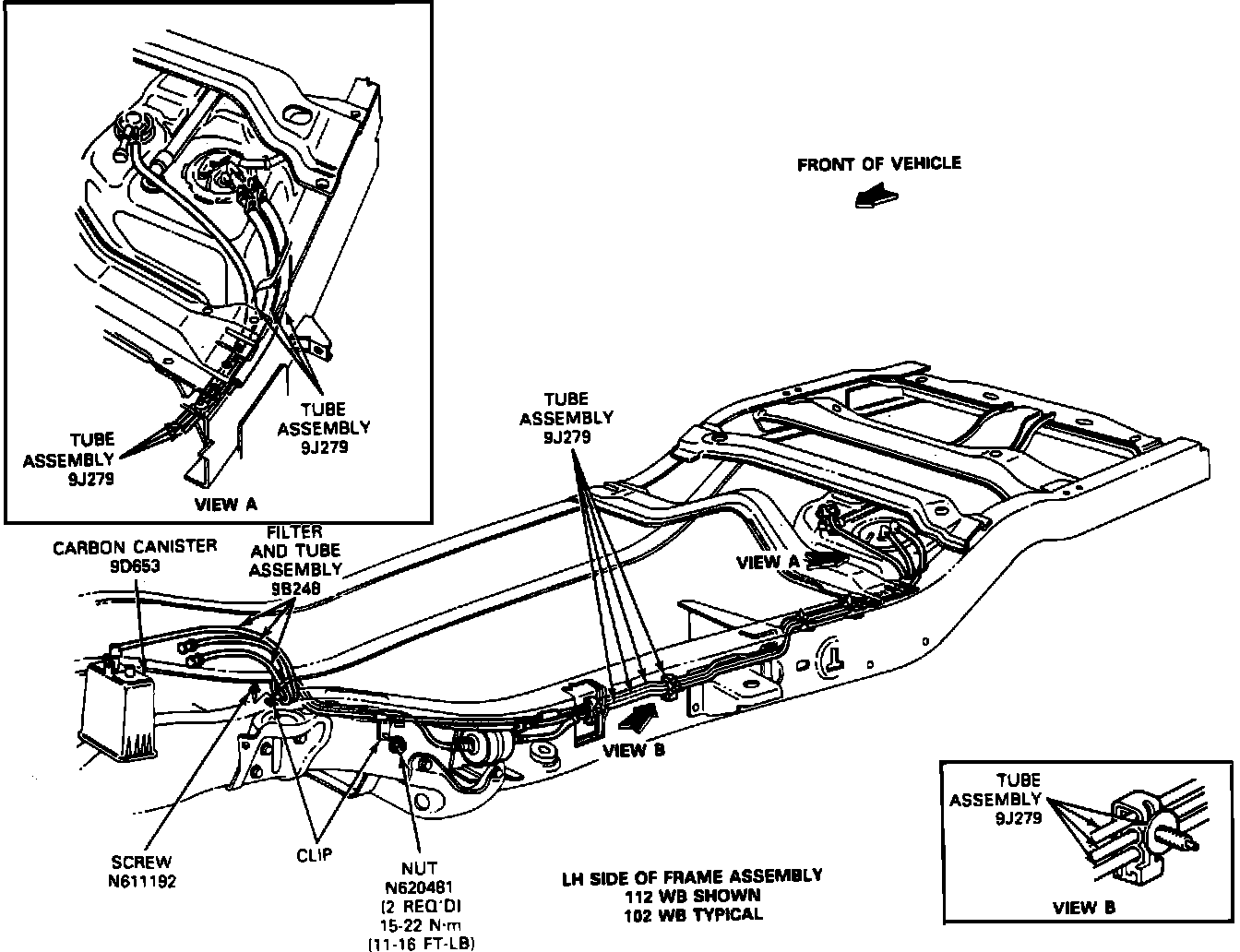

Fuel and Vapor Line Routing
Fuel and Vapor Line Routing
EVAP Vapor Vent Lines:
