Home
>>
Mazda Truck
>>
1991
>>
Navajo 2WD V6-4.0L OHV
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Emission Vacuum Line Routing
Emission Vacuum Line Routing

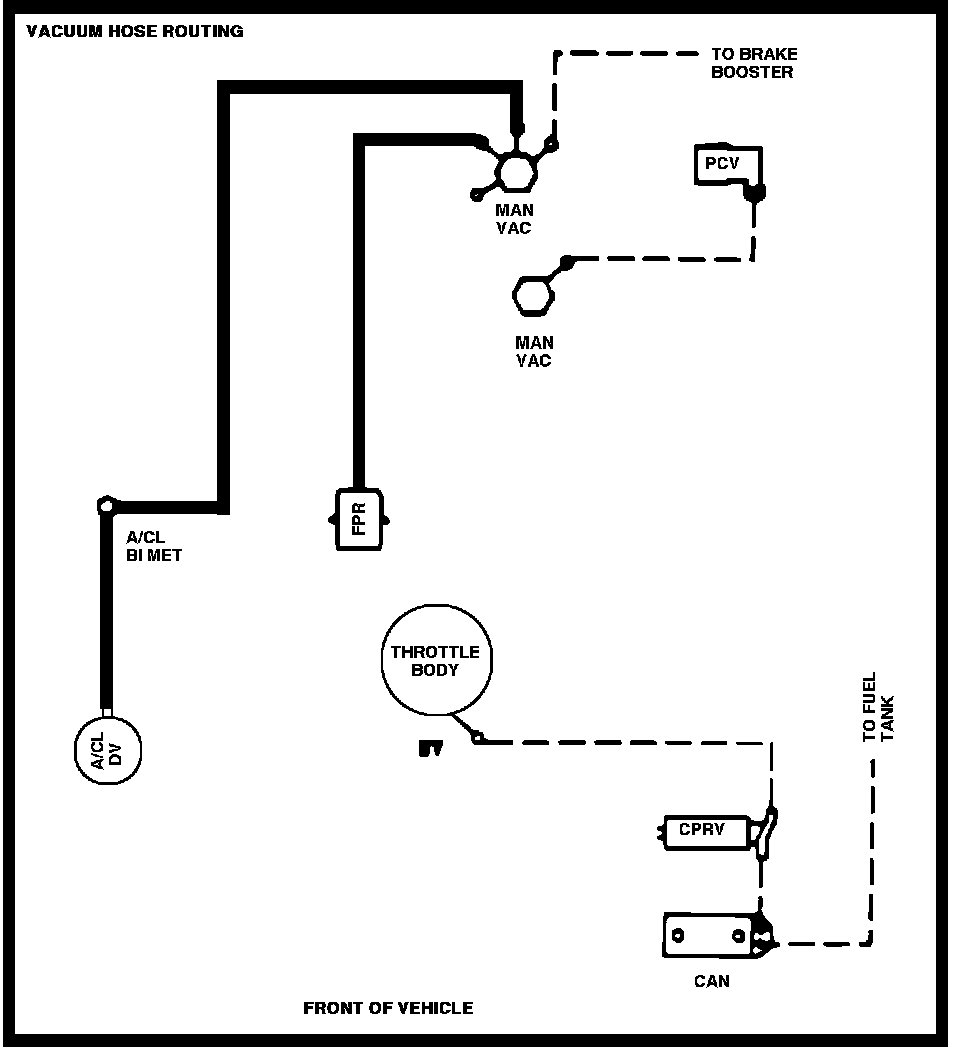

Vacuum and Vapor Hose Diagram:
