AA - EEC No Start (EDIS)

Enter this Pinpoint Test only when Quick Test has been successfully completed and the engine is still a "no start" or when directed here from IGNITION SYSTEMS.

This Pinpoint Test is only intended to diagnose the following:

1. Spark (EEC related).
2. Harness circuits: PIP, IGN GND, VPWR.
3. ECA computer processor.

To prevent replacement of good components, be aware that these non-EEC areas may be faulty:

1. Fuel quantity and quality.
2. Ignition: moisture, physical damage, etc.
3. Engine mechanical problems.
4. Starter and battery circuit.
5. Variable reluctance sensor (VRS).
6. EDIS module.
7. Coil packs.

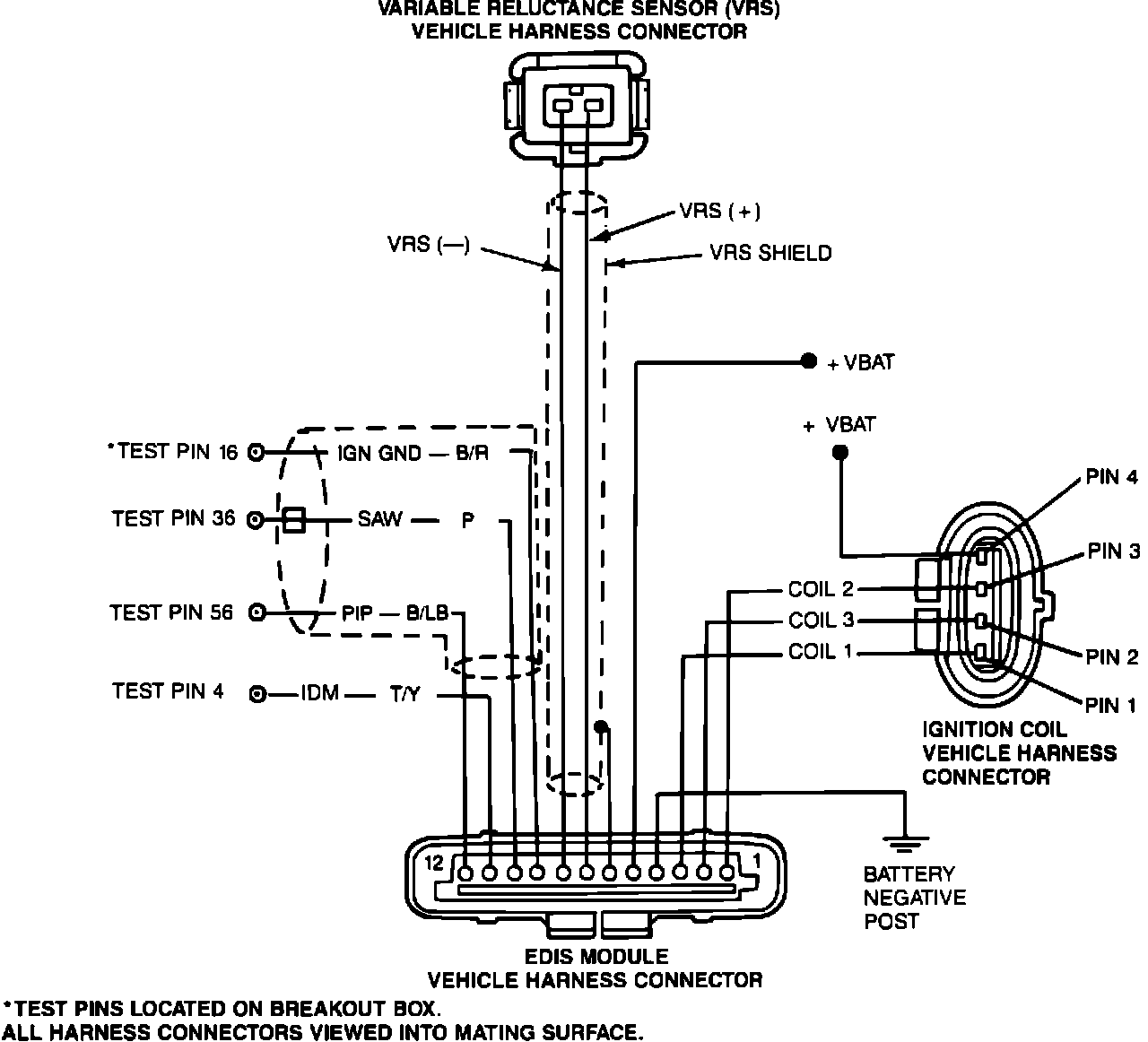

PINPOINT TEST AA SCHEMATIC

Pinpoint Test AA Schematic:

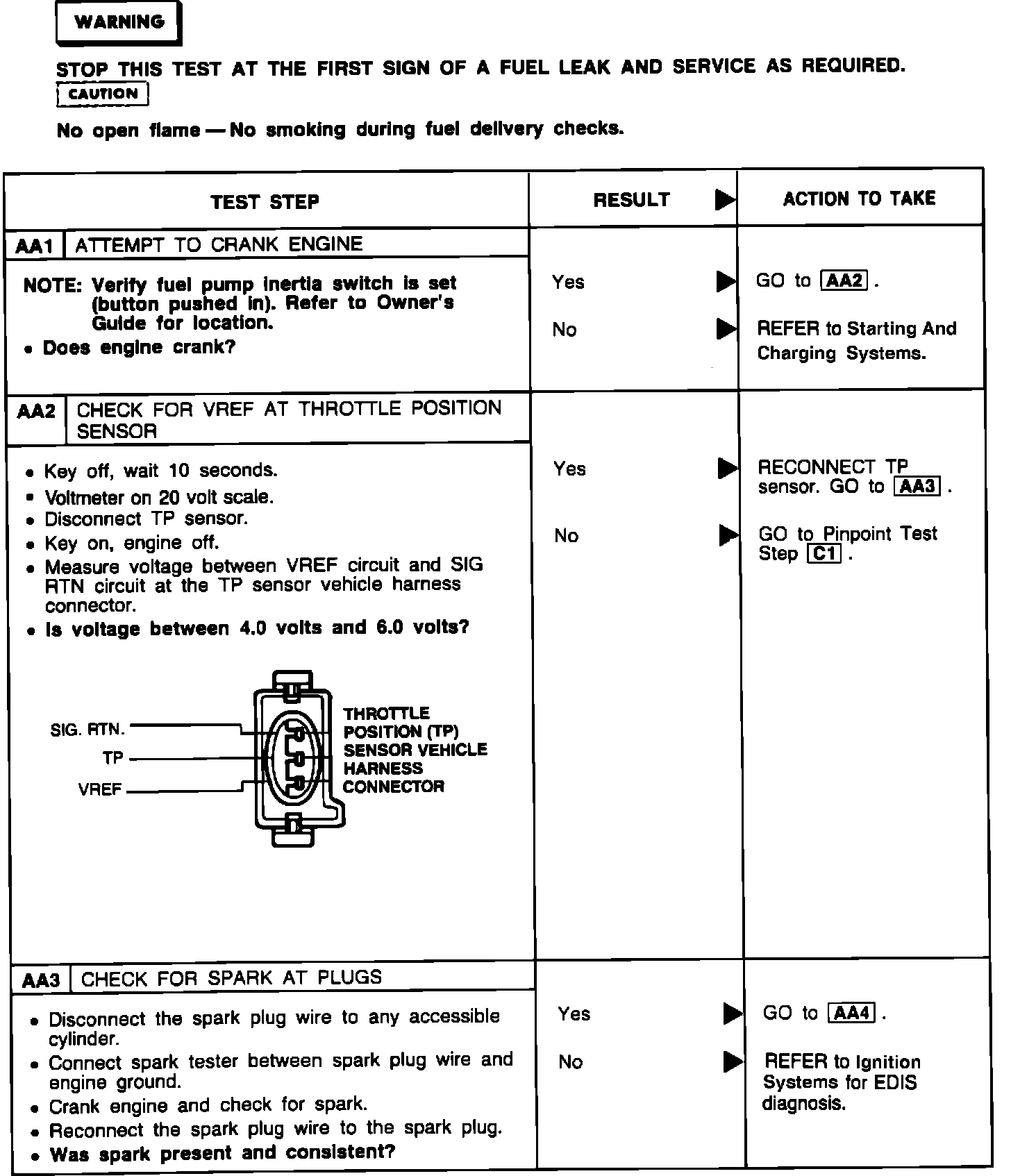

TEST STEPS AA1 - AA3

Pinpoint Test Steps AA1 - AA3:

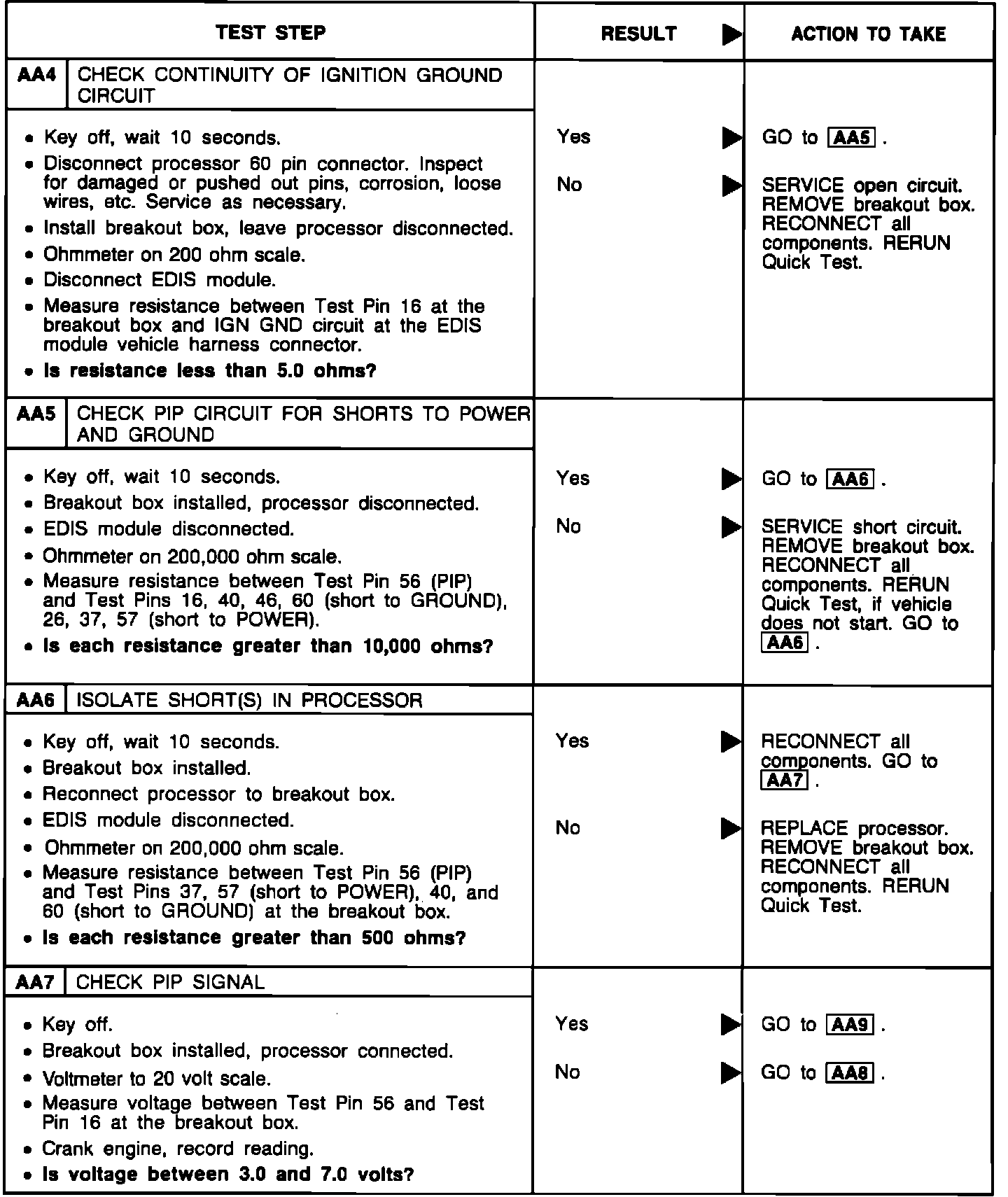

TEST STEPS AA4 - AA7

Pinpoint Test Steps AA4 - AA7:

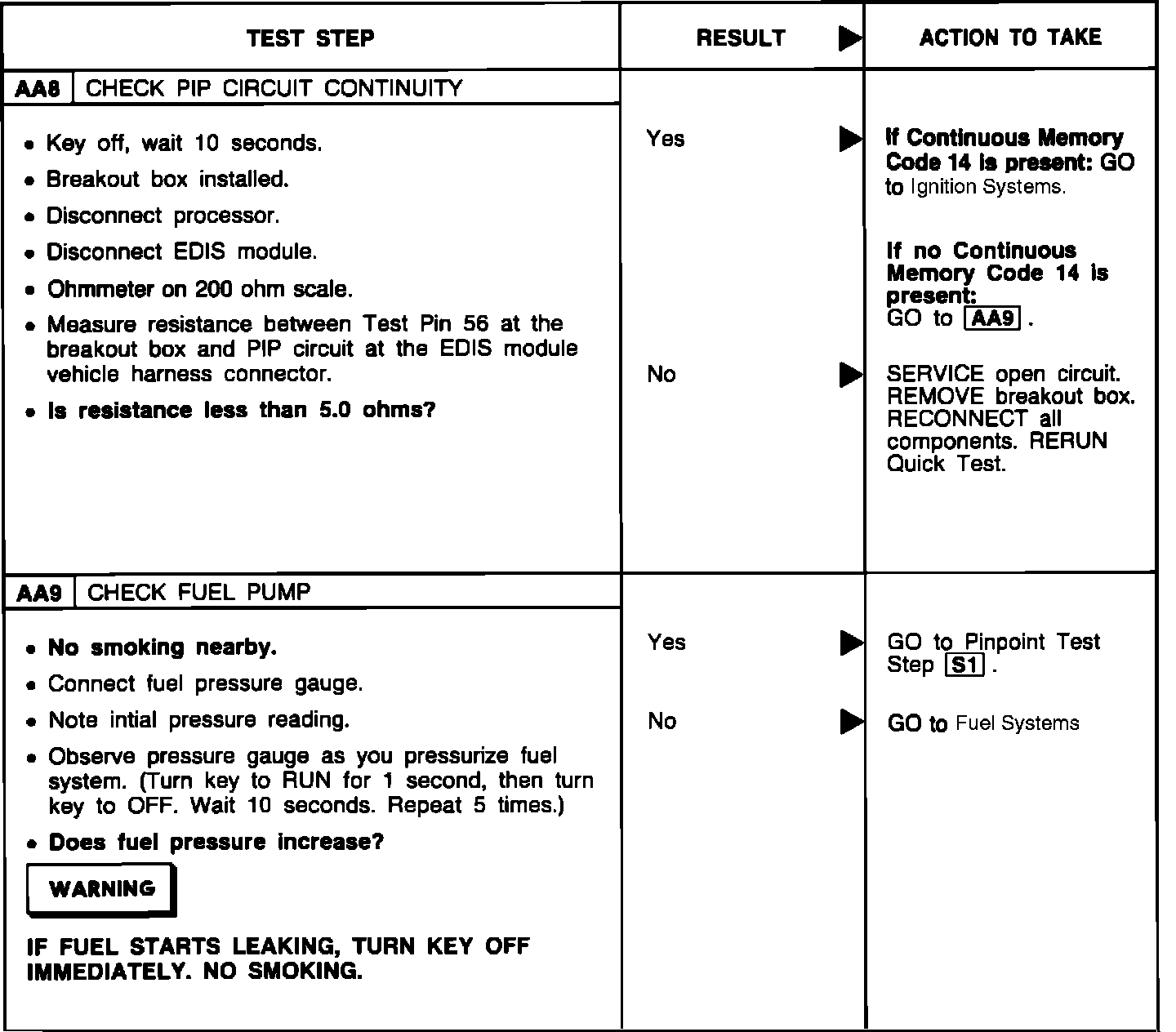

TEST STEPS AA8 - AA9

Pinpoint Test Steps AA8 - AA9:
