Mazda Truck
>>
1991
>>
MPV L4-2606cc 2.6L SOHC
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Wiper Switch
>>
Testing and Inspection
>>
Rear
Rear

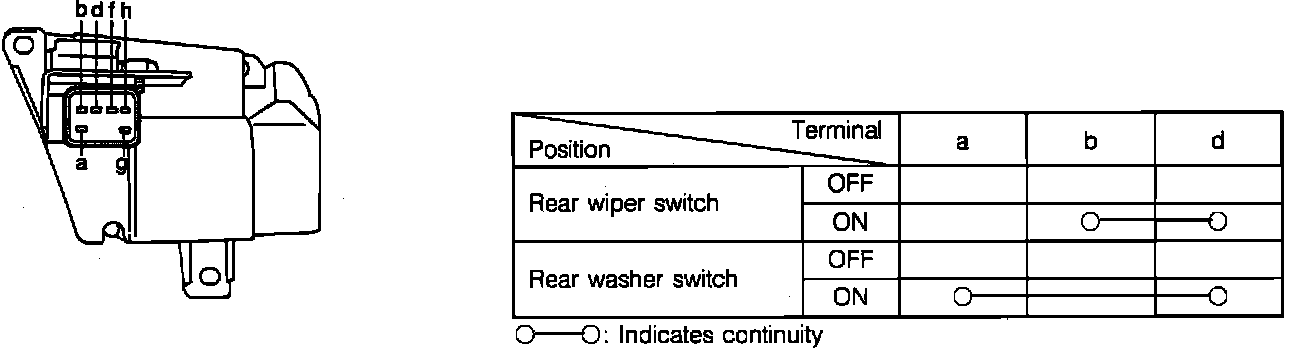

Fig. 4 Wiper Switch Test:
Refer to
Fig. 4
for switch diagnosis.
