Shift Linkage: Adjustments

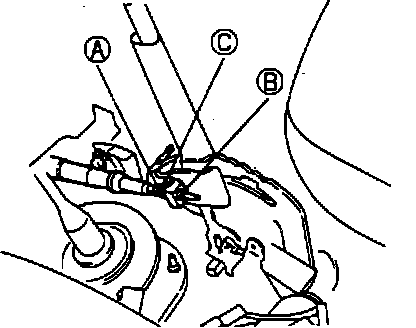

Fig. 6 Selector Lever Adjustment. R4AX-EL Transmission:

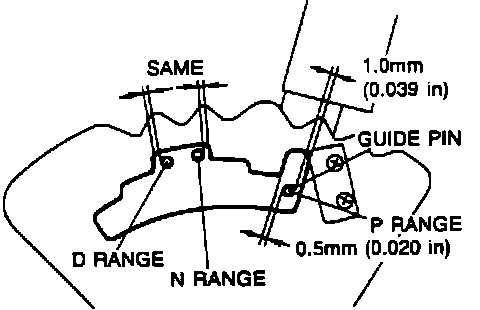

Fig. 7 Selector Lever Clearance Adjustment. R4AX-EL Transmission:

1. Disconnect negative battery cable to deactivate shift lock.
2. Remove selector lever knob and console.
3. Loosen locknut and lockbolt Fig. 6.
4. Shift manual shaft to P range.
5. Hold selector lever forward and torque lockbolt to 67-95 inch lbs.
6. Torque locknut to 67-95 inch lbs.
7. Check lever so that clearance between guide plate and guide pin in P range.
8. Move selector lever to N and D ranges, verify there is same clearance between guide plate and guide pin Fig. 7.
9. Install console and selector lever, then check for correct operation.
