Shift Interlock: Adjustments

1. Remove the column covers.

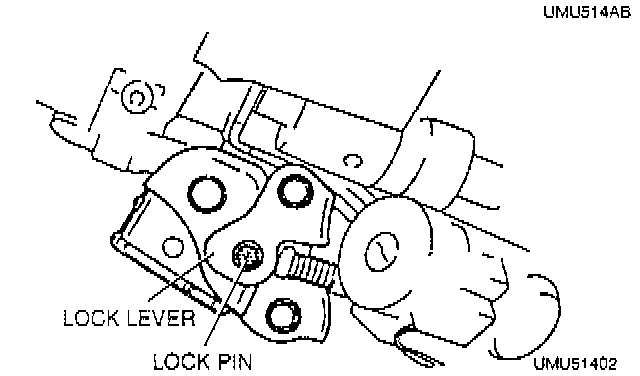

2. Verify that the lock pin of the actuator is in the center of the lock lever.
3. If not, loosen the shift-lock actuator mounting bolts and adjust the lock pin position. Tighten bolts to 16 - 22 Nm (12 - 16 ft. lbs.).
