W/Automatic Transmission

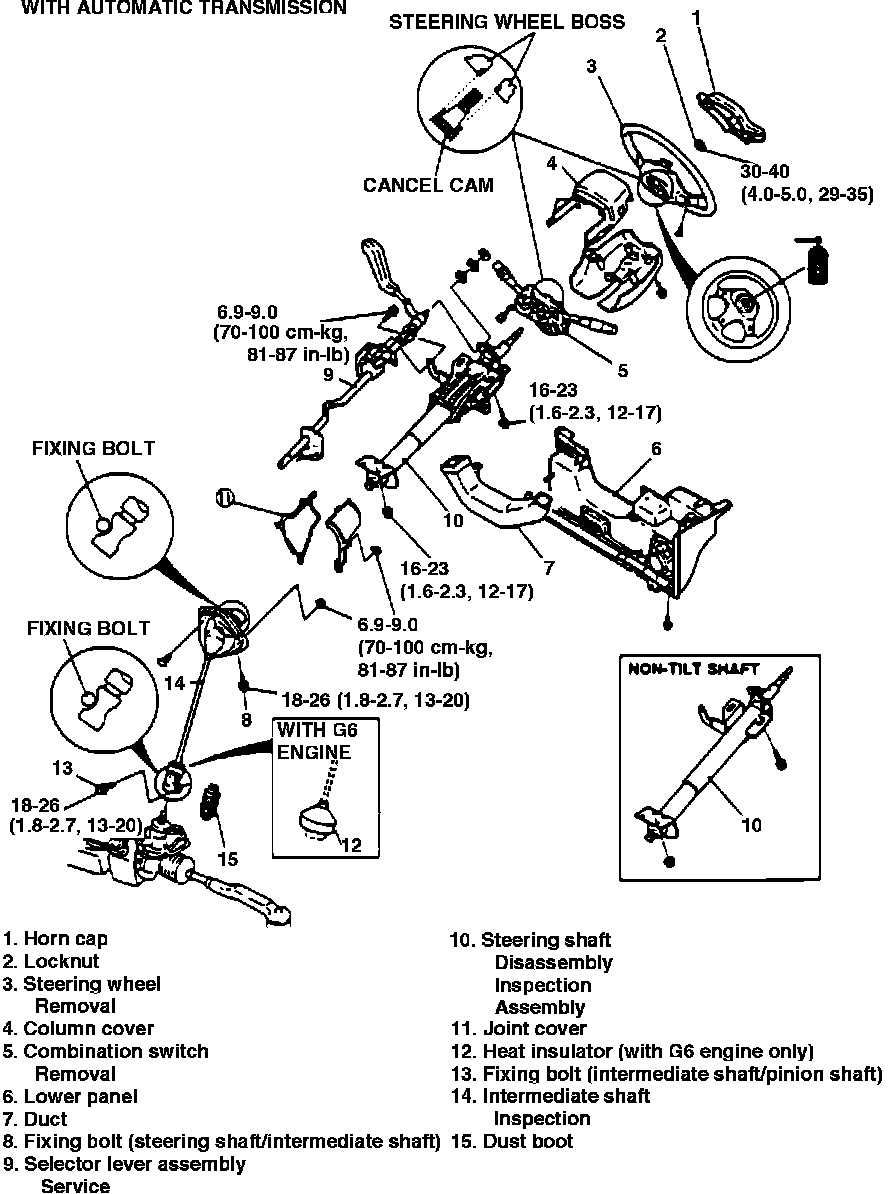

Fig. 9 Exploded View Of Steering Column. W/automatic Transmission:





Refer to Fig. 9 when performing steering column service.
