A/T - Engine Does Not Start When Parked On Steep Incline

Bulletin No.: 014/92
Issued: 7/16/92
Revised: 11/9/92

Category
K

Applicable Model/s
1990-92 MPV A/T, 2.6L

Subject:
ENGINE DOES NOT START WHEN VEHICLE IS PARKED ON INCLINE

* The revised sections are indicated by an asterisk. Please replace original bulletin with this revised bulletin.

AFFECTED VINS*

The Inhibitor Switch on 1990-92 MPV (A/T, 2.6L) models has been modified beginning on May 1, 1991 production date. This bulletin applies to the following:
- 1990-92 MPV (A/T, 2.6L) Vans with a VIN of JM2LV621*M0348546 or lower produced through April 30, 1991.
- 1990-92 MPV (A/T, 2.6L) Wagons with a VIN of JM3LV521*M0348546 or lower prodticed through April 30, 1991.

Also, the Manual Plate on 1990-92 MPV (A/T, 2.6L) models has been modified beginning on October 31, 1991 production date. This bulletin applies to the following:
- 1990-92 MPV (A/T, 2.6L) Vans with a VIN of JM2LV621*N0414407 or lower produced through September 30, 1991.
- 1990-92 MPV (A/T, 2.6L) Wagons with a VIN of JM3LV521*N0414407 or lower produced through September 30, 1991.

DESCRIPTION

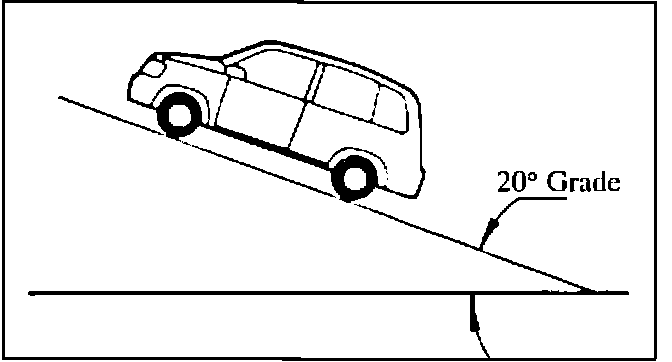

When the vehicle is parked on a steep incline (20~ grade or higher). it may not start and the automatic transmission shift lever may not move from the "P" position.

Parking on in incline increases the amount of play in the transmission linkage. When this occurs, the park/neutral circuit in the inhibitor switch does not close, the shift lock mechinism does not disengage, and the vehicle will not start.

To correct this problem, the following modifications have been made:

1. The contact point that unlocks the shift lock mechanism in the inhibitor switch has been increased as of May 1, 1991 production (VIN JM*LV*21*M0348547*).

2. The round configuration of the manual plate between the "P" range and the "R" range has been changed as of October 1, 1991 production (VIN JM*LV*21*N0414408*).

Vehicles produced prior to May 1, 1991 having this condition should have the inhibitor switch and manual plate replaced with the new parts. Vehicles produced between May 1, 1991 and October 1, 1991 having this problem should have the manual plate replaced with the new part.

All repairs should be performed according to the instructions in the Workshop Manual, Section K-1.

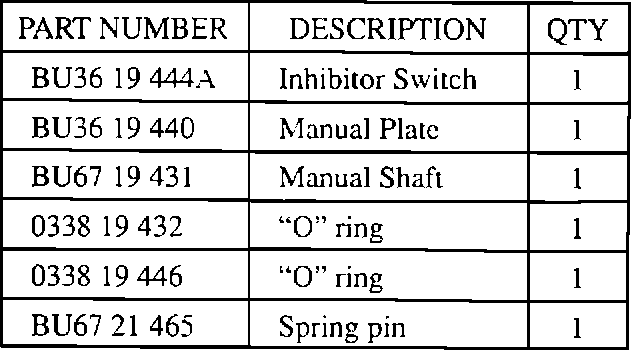

PARTS INFORMATION*

WARRANTY INFORMATION

(Applies to vehicles covered under warranty.)

Warranty Type Code: A
Customer Comment Code: 01
Damage Code: 97
Part No. of Main Cause: BU36 19 444A
Quantity: 1
Related Parts: (see Parts Information above)
Operation No./Labor Hours: K0306ARX/1.0 Hrs.(Control Valve R&R, and Manual Plate and Manual
Shaft Exchange)
K0407XRX/0.4 Hrs. (Inhibitor Switch Exchange)
