Suspension Control Module: Service and Repair
Control UnitInspection

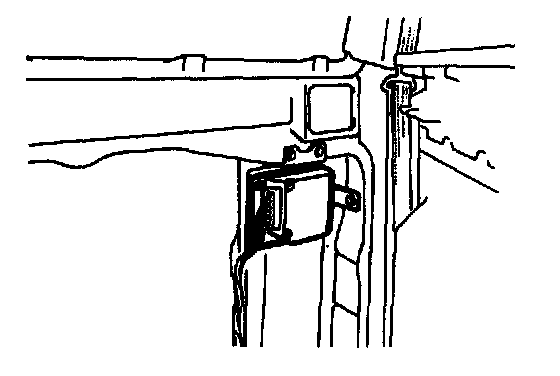

1. Remove the No.1 rear seat.
2. Remove rear side trim A.
3. Connect the connector to the control unit.
4. Check the voltage of the connector terminals in chart.
Inspection
1. Remove the No.1 rear seat.
2. Remove rear side trim A.
3. Connect the connector to the control unit.
4. Check the voltage of the connector terminals in chart.
