Compressor/Pump Relay: Testing and Inspection

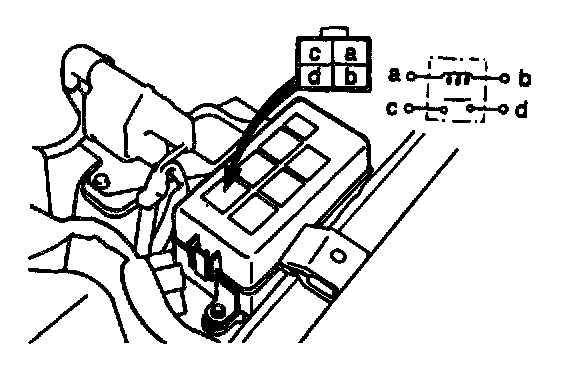

Compressor Relay

Inspection






1. Remove the compressor relay.
2. Connect battery voltage (12V) to terminal (b) and ground terminal (a).
3. Verify continuity between terminals (c) and (d).
