Home
>>
Mazda Truck
>>
1991
>>
MPV L4-2606cc 2.6L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Tune-up and Engine Performance Checks
>>
Distributor
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

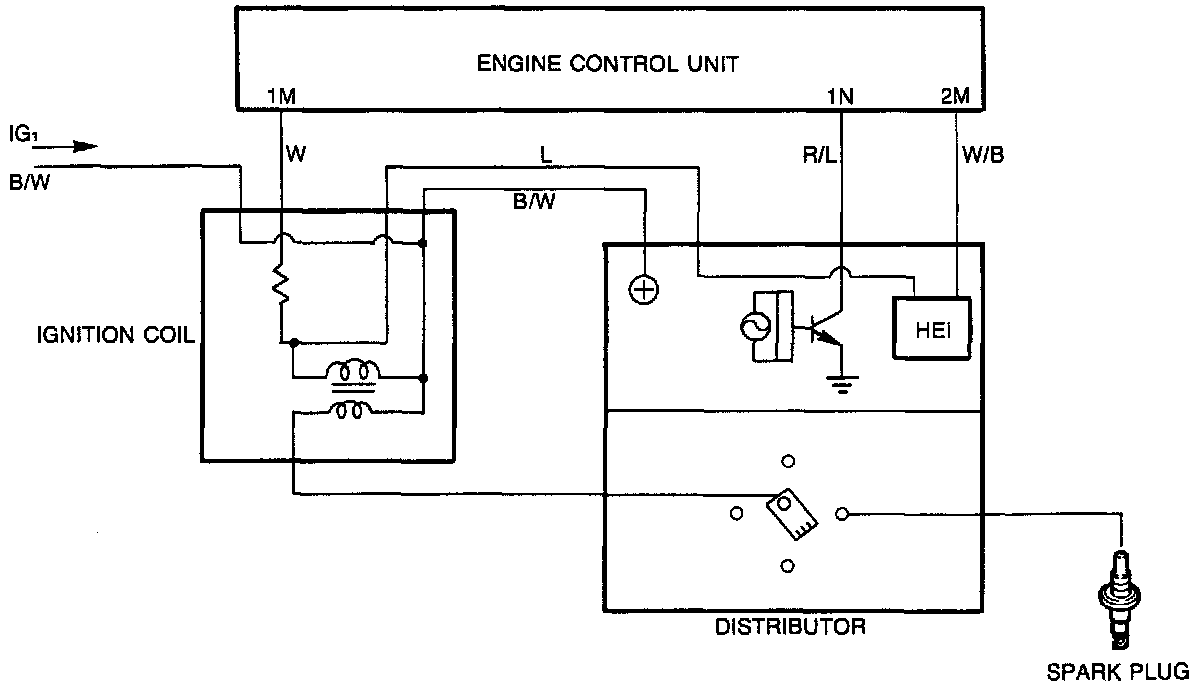

Ignition System Wiring Diagram:
