Fuel Delivery and Air Induction: Locations

Component Locations:

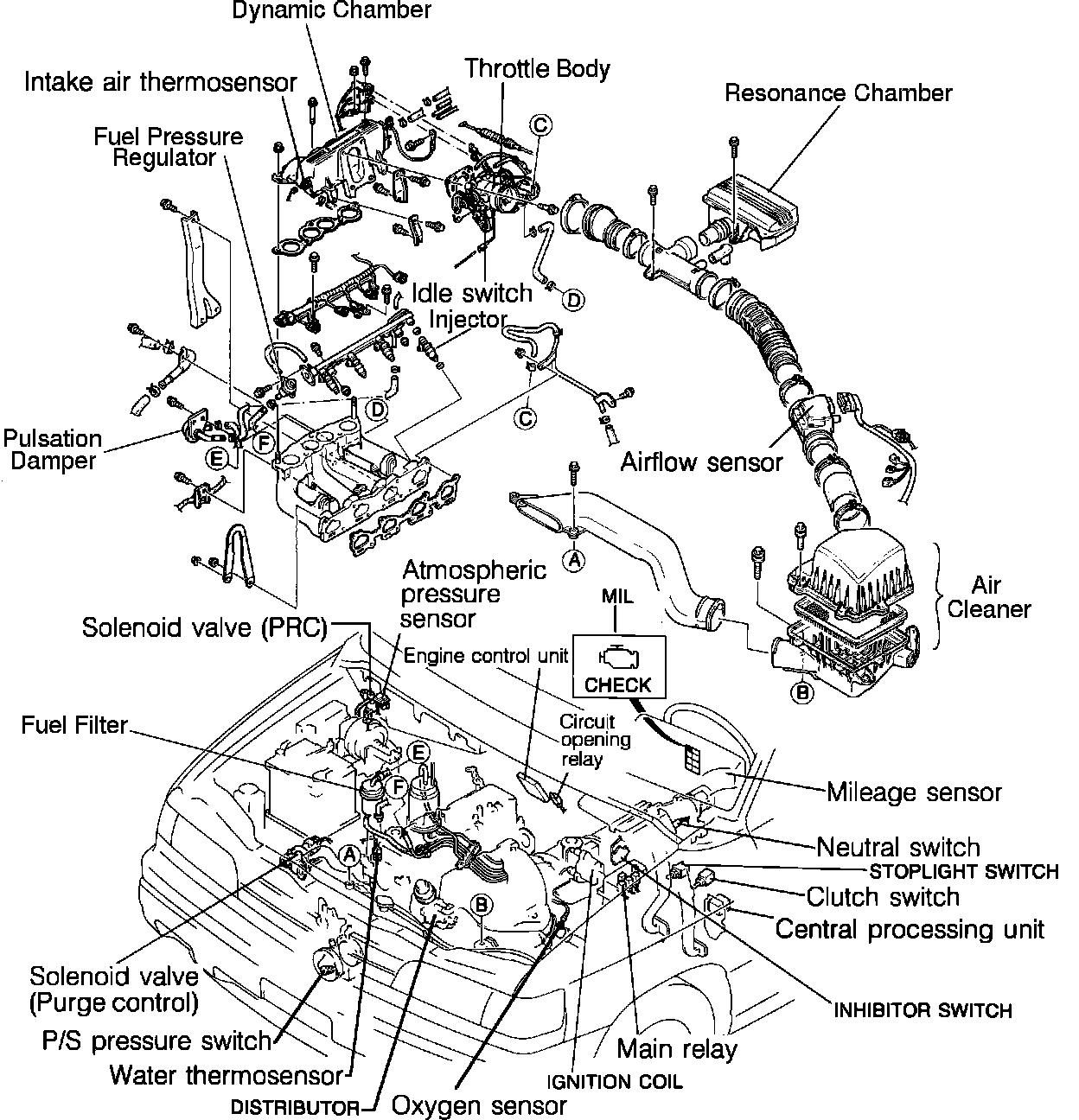

UNDER HOOD COMPONENTS

Fuel Tank Assembly:

FUEL TANK AND COMPONENTS

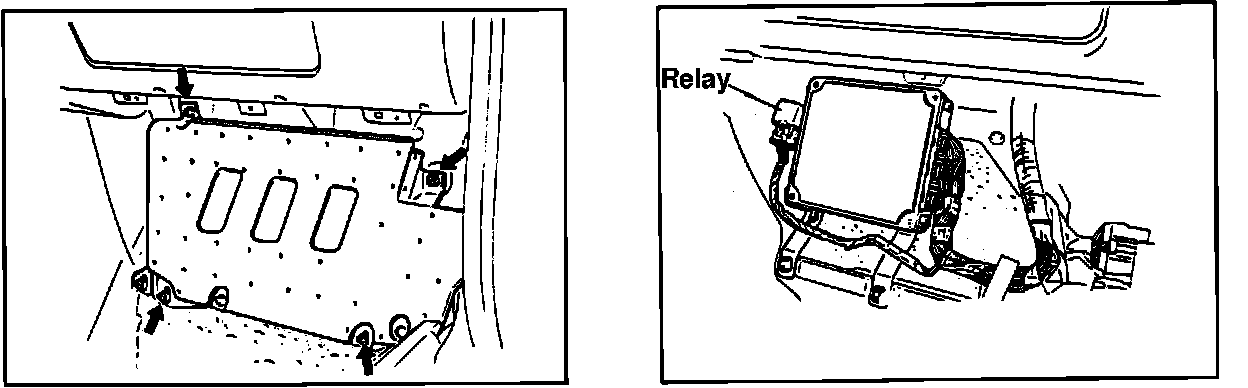

Engine Control Unit And Fuel Pump (Circuit Open) Relay:

BYPASS AIR CONTROL VALVE
Mounted on the throttle body.

CHECK AND CUT VALVE
Mounted above the fuel tank.

FUEL FILTER
In the rear of the engine compartment, right side, beneath the intake manifold.

FUEL INJECTORS
Installed in the intake manifold where the manifold meets the cylinder head, held in place by the fuel rail.

FUEL PRESSURE REGULATOR
Mounted on the front end of the fuel rail.

FUEL PUMP
In the fuel tank.

FUEL PUMP RELAY (CIRCUIT OPEN RELAY)
Under the floor panel, passenger side footwell.

FUEL RAIL
Mounted on the intake manifold, beneath the dynamic chamber.

PULSATION DAMPER
Mounted on the right side of the engine block, beneath the intake manifold, near the rear of the engine.
