Two-Way Check Valve

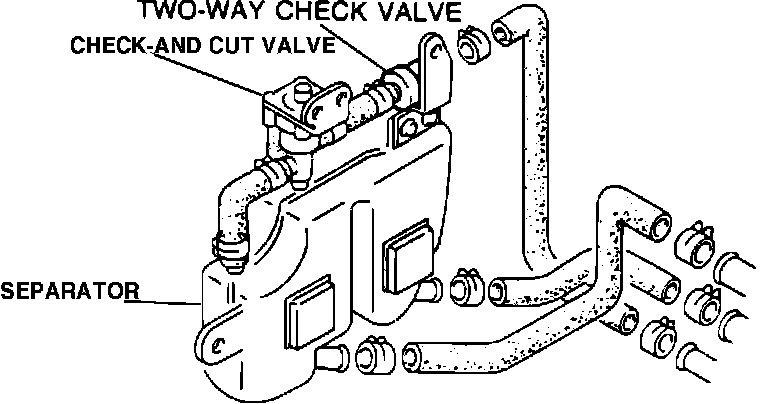

Fig. 82 Separator/Check And Cut Valve:

REMOVAL AND REPLACEMENT

1. Pull back the right rear side interior trim panel.
2. Remove the cover.
3. Mark the hose locations and disconnect the hoses.
4. Remove the two-way check valve along with the separator and check-and cut valve.
5. Remove the Remove the two-way check valve.
6. Install in reverse order.

NOTE: When connecting the hoses, be sure to connect them in the correct positions.
