Home >> Mazda Truck >> 1991 >> MPV L4-2606cc 2.6L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Charts >> Fails Emission Test (Condition OK)

Fails Emission Test (Condition OK)

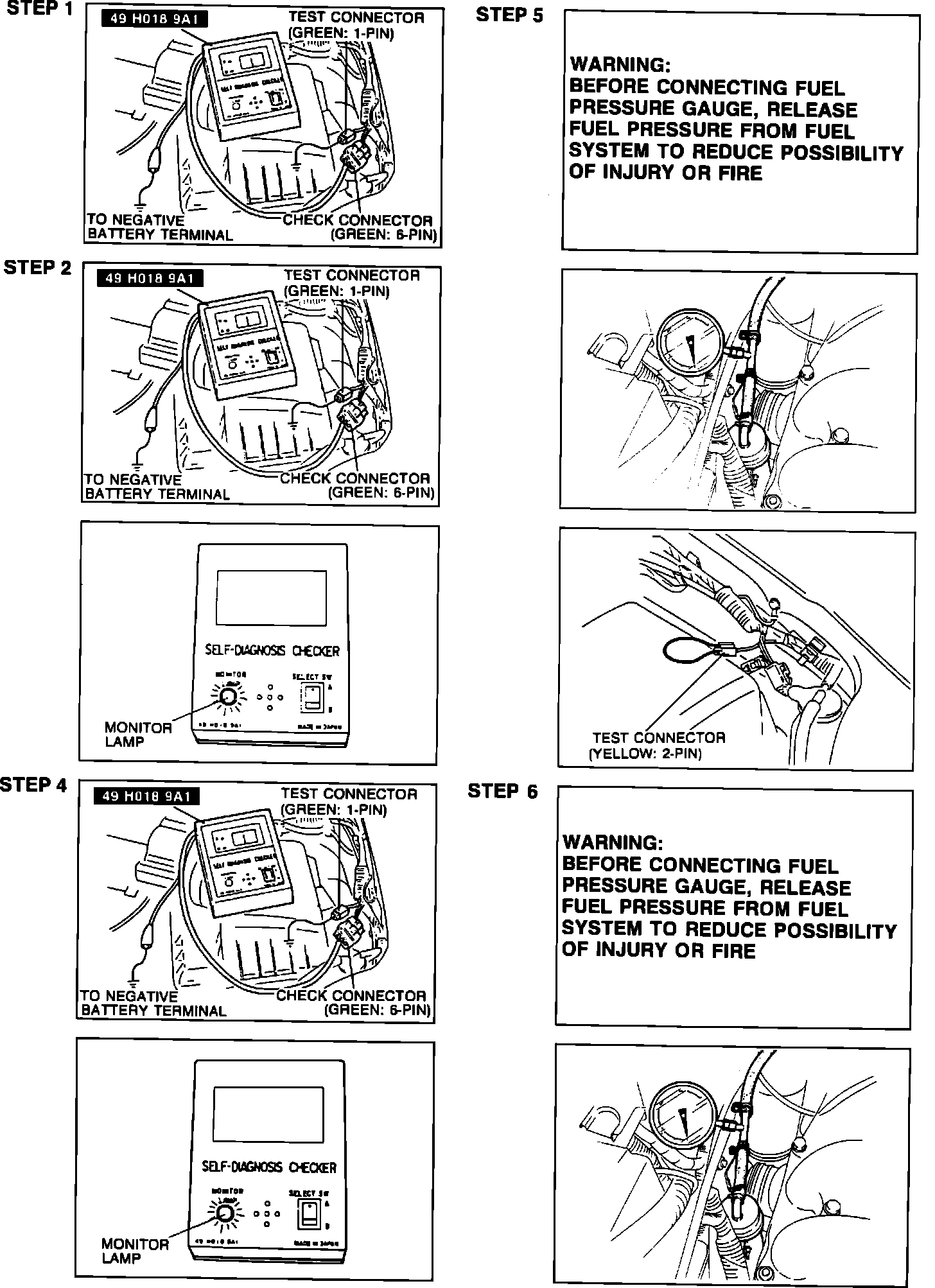

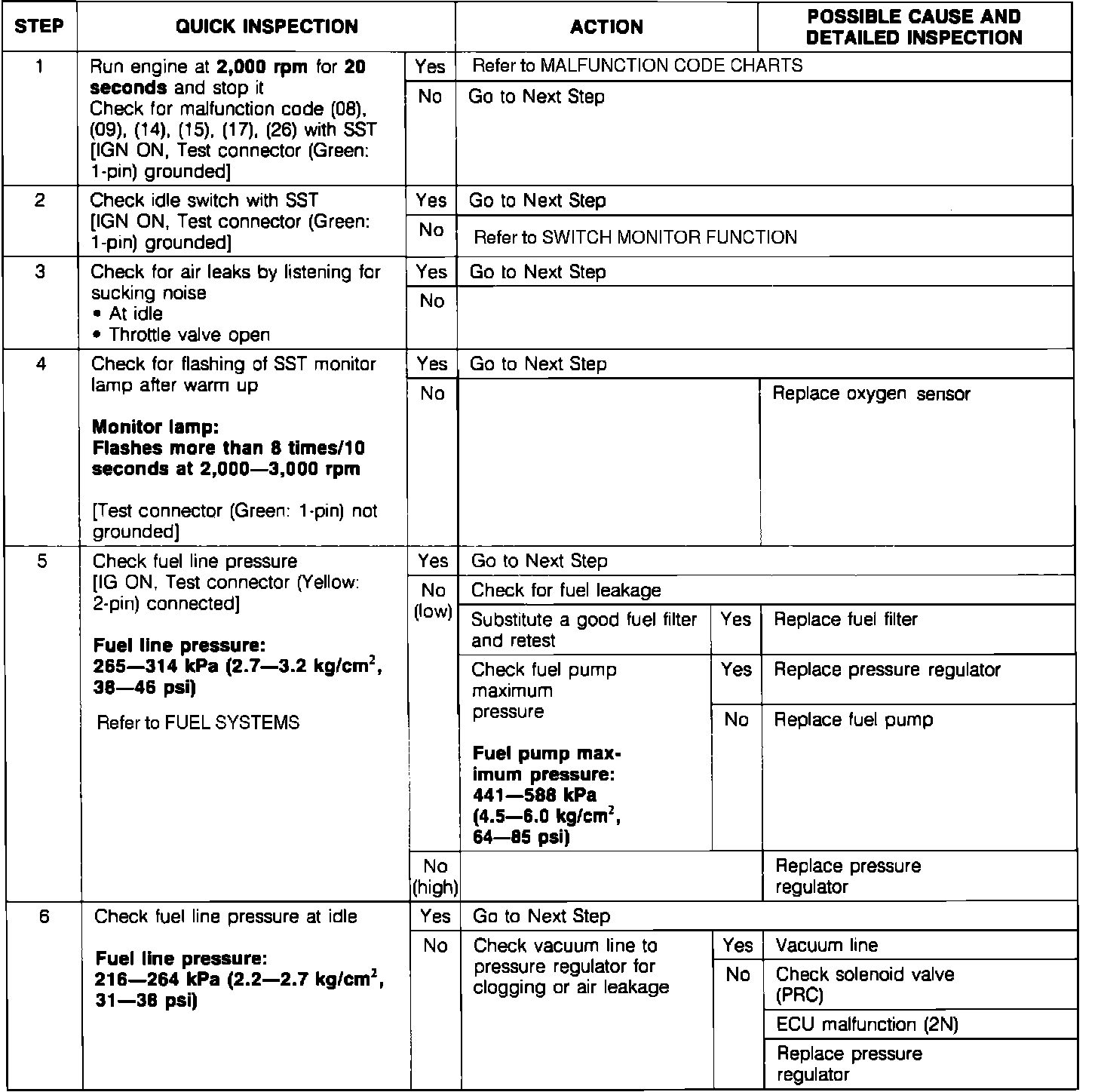

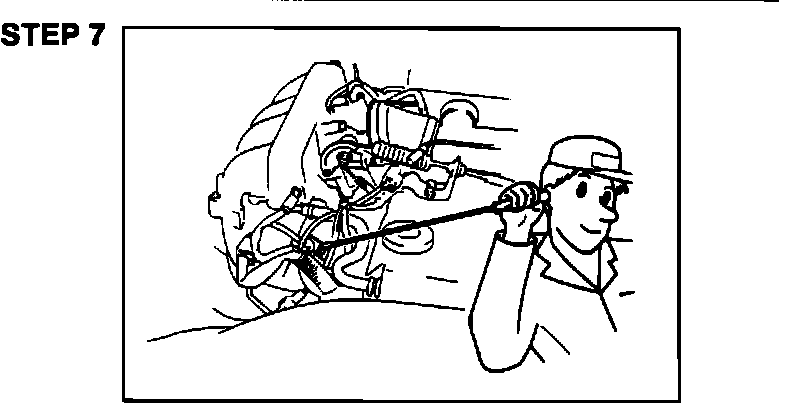

Fails Emission Test (Engine Condition OK):



Fails Emission Test (Engine Condition OK):



Fails Emission Test (Engine Condition OK):



Fails Emission Test (Engine Condition OK):
