Blower Unit Case
Blower Unit CaseRemoval
1. Remove the passenger-side lower panel and undercover.

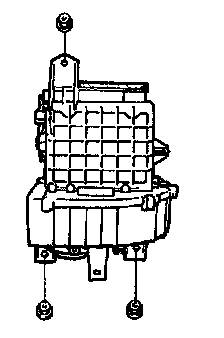

2. Remove the nuts and the blower unit.
Installation
- Install in the reverse order of removal.

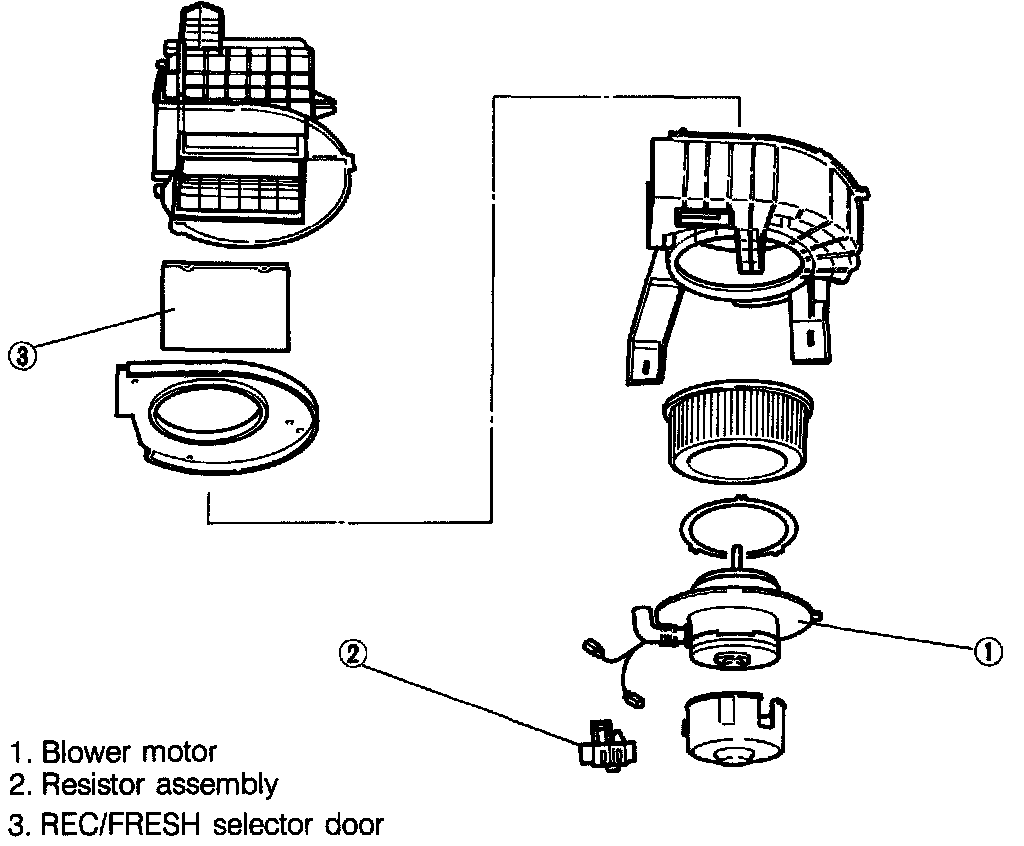

Disassembly / Assembly
- Disassemble and assemble as shown.
