Mazda Truck
>>
1991
>>
MPV L4-2606cc 2.6L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Suspension
>>
Suspension Control Module
Suspension Control Module
Control Unit

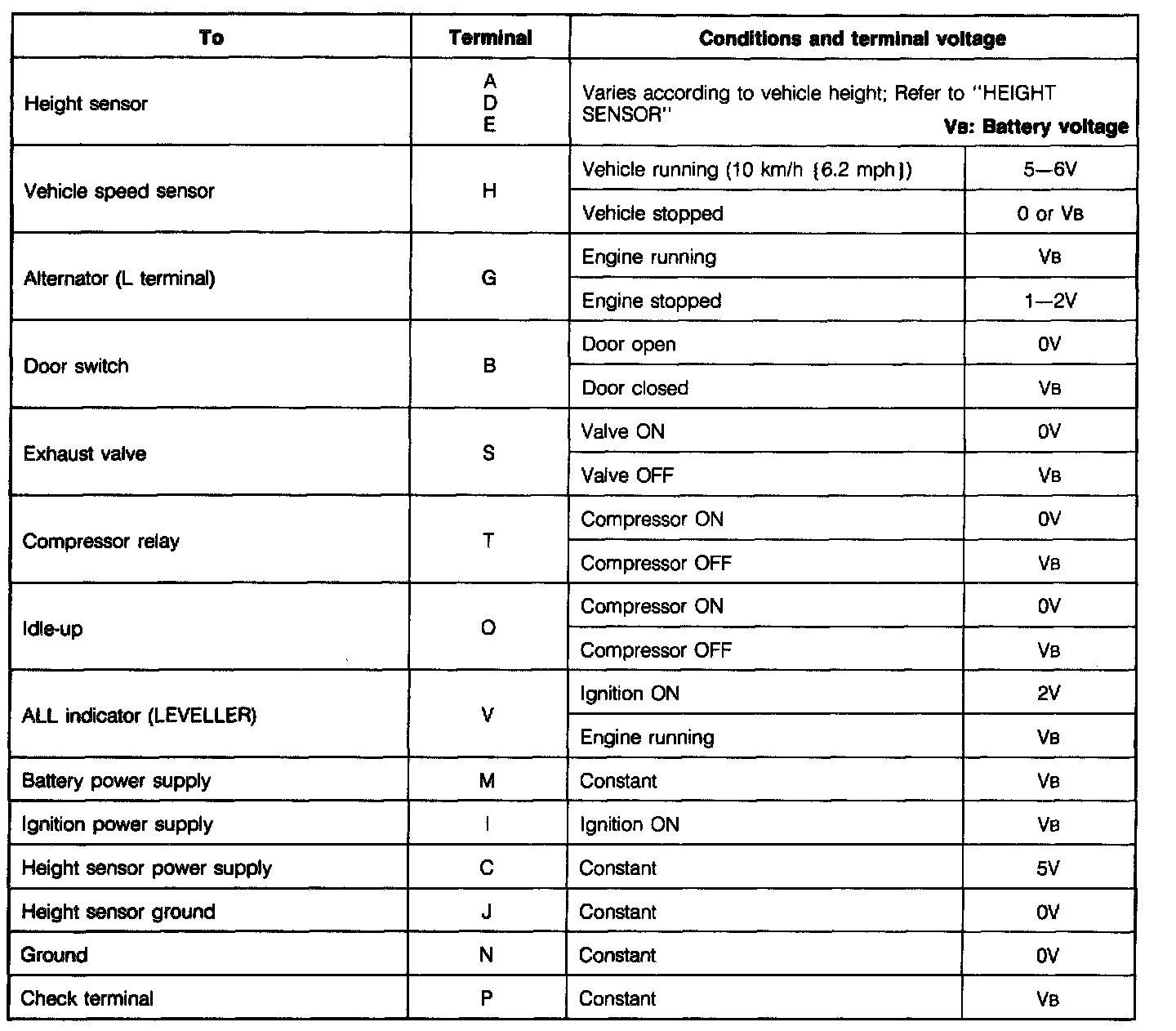

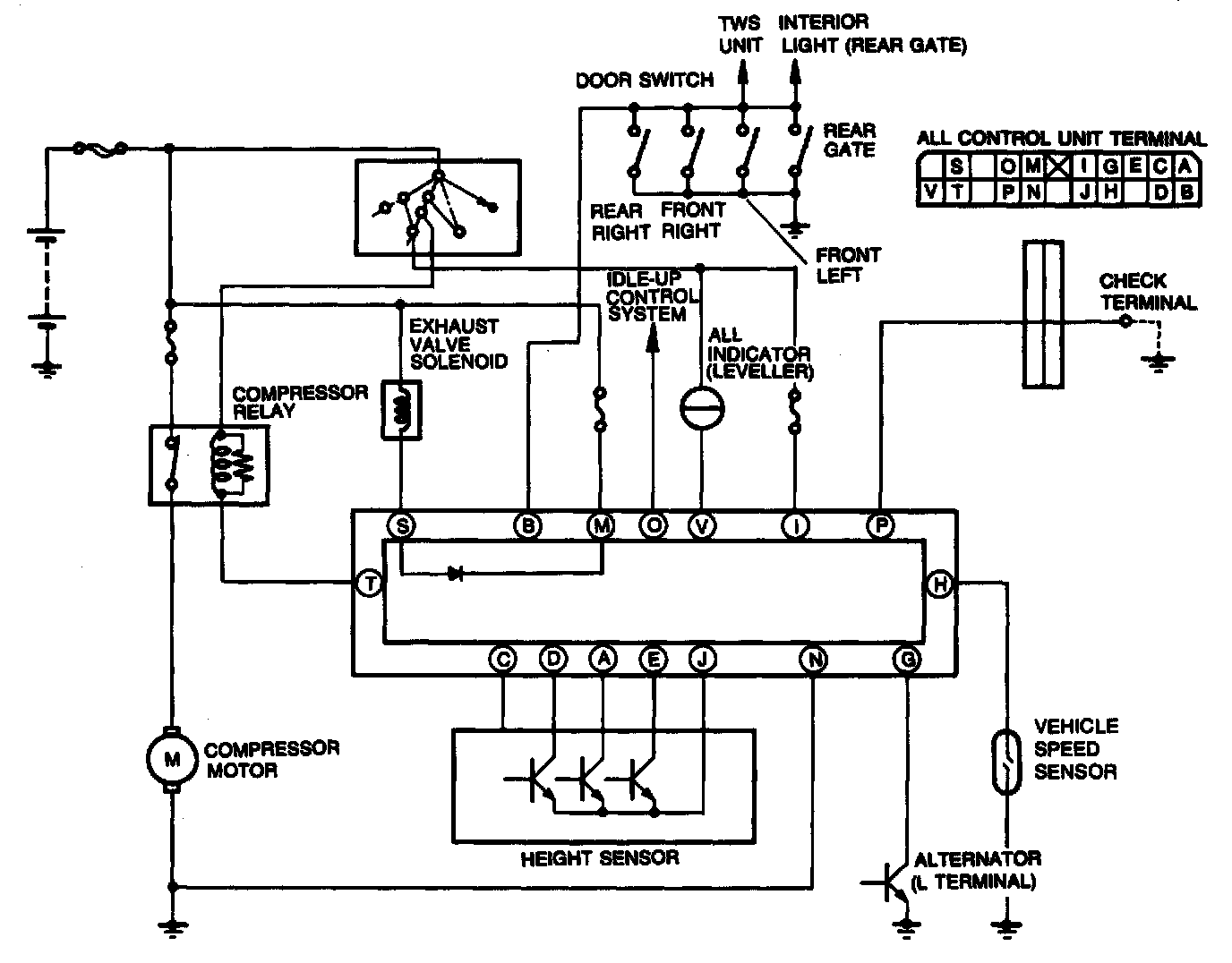

Schematic and Terminal Pinout
