System Diagram
System Diagram

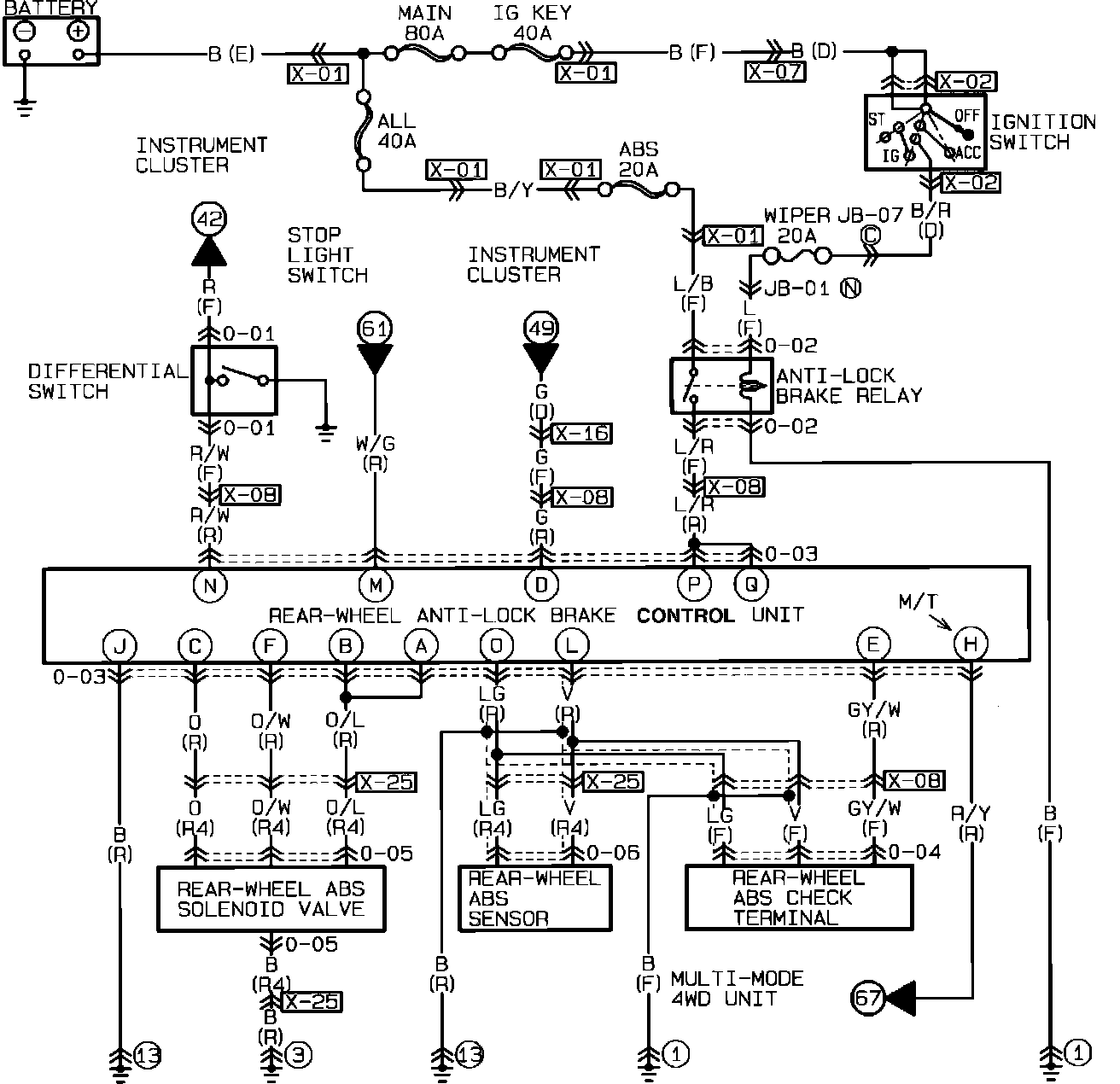

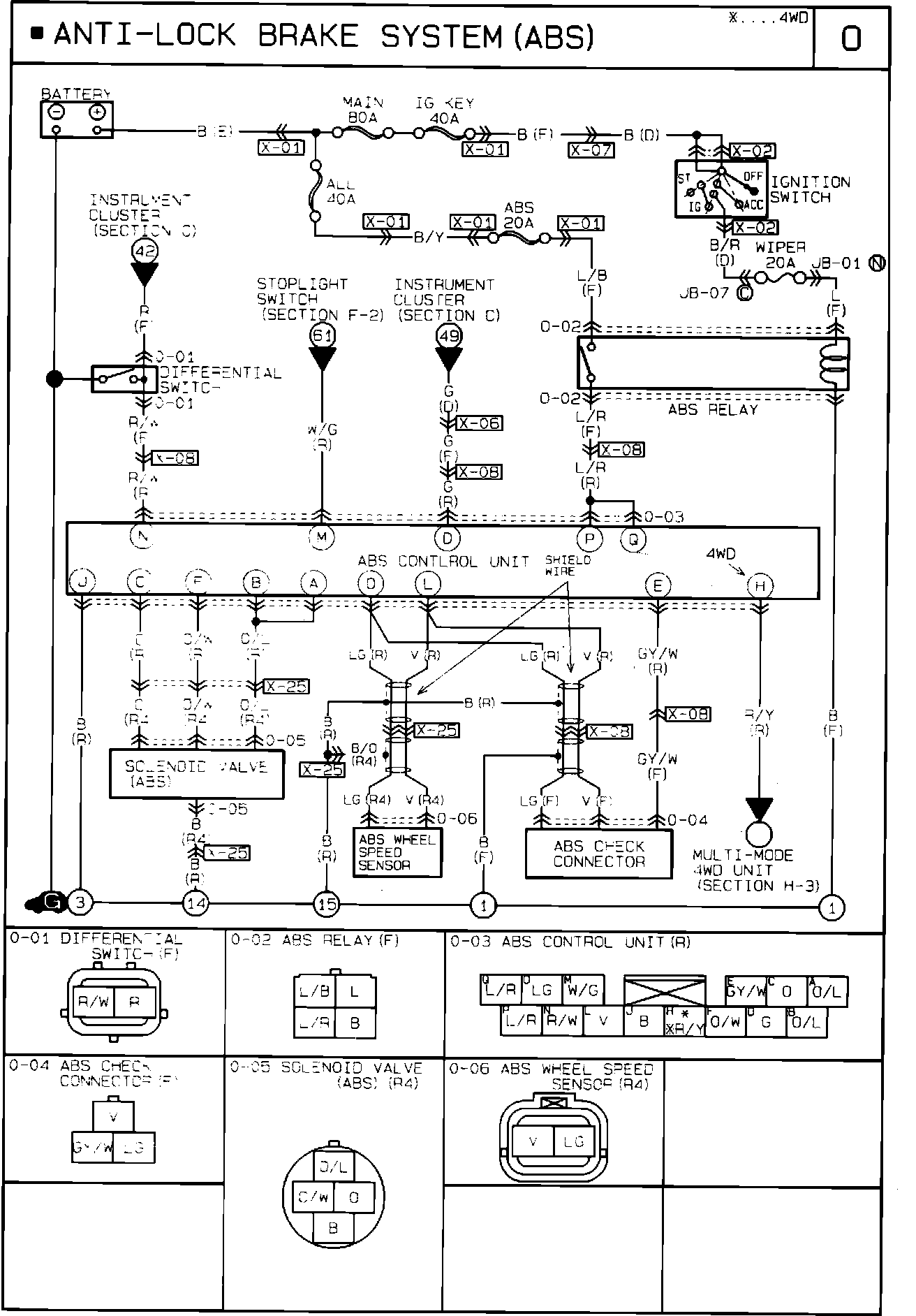

Fig. 20 Anti-lock Brake System Wiring Diagram. MPV:
Rear-Wheel Anti-Lock Brake System:
