Brake Proportioning/Combination Valve: Testing and Inspection

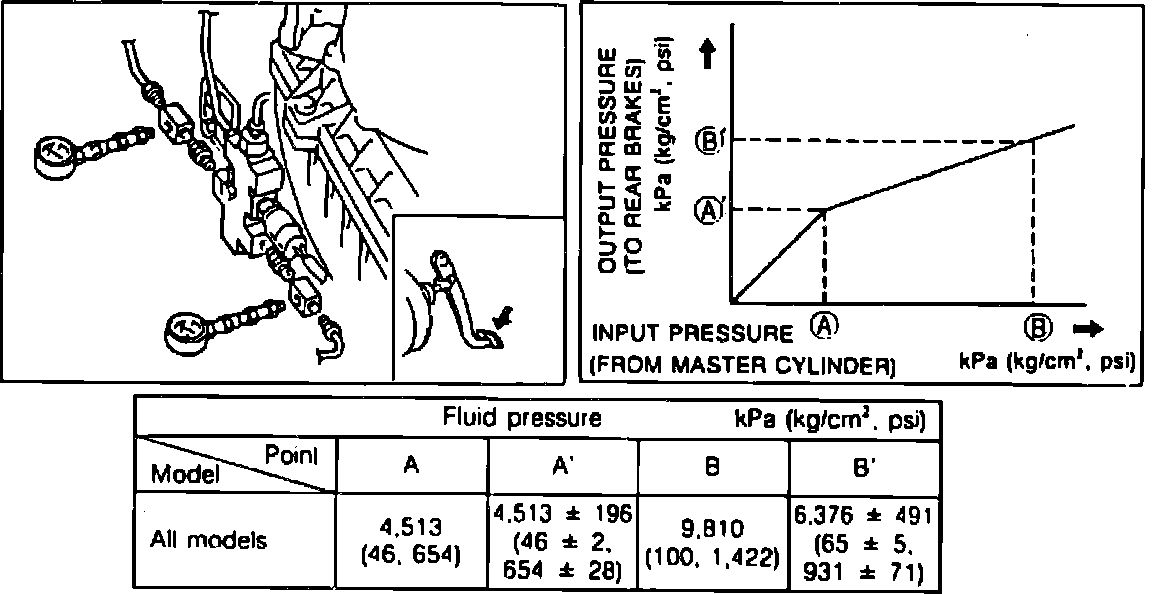

Fig. 8 PBV Pressure Chart. 1990-91 MPV:

Connect pressure tester as shown. If pressure is different than the chart that coincides with the figure, then replace valve, Fig. 8.
