Mazda Truck
>>
1991
>>
MPV L4-2606cc 2.6L SOHC
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
Component Tests and General Diagnostics

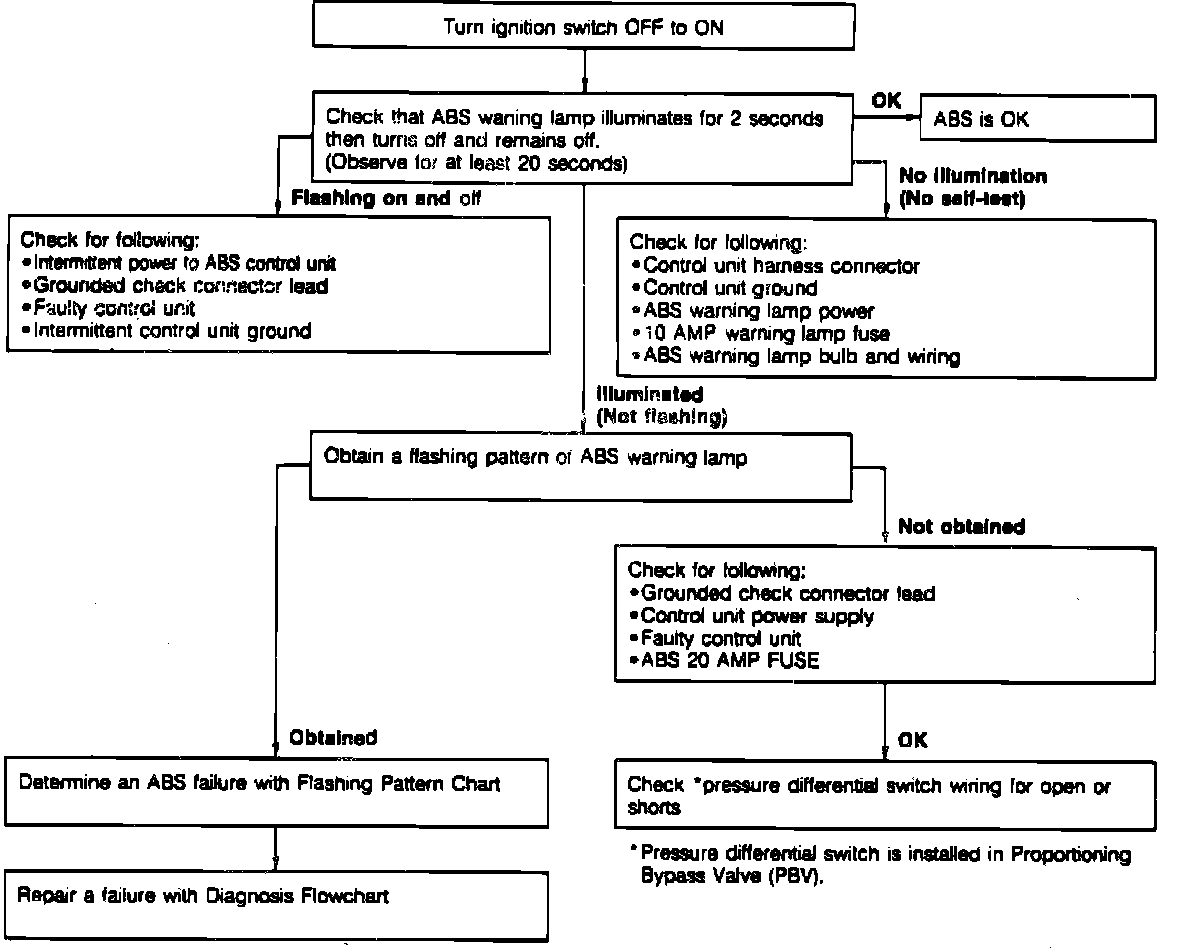

Fig. 4 Troubleshooting Chart:
