Hydraulic Control Assembly - Antilock Brakes: Service and Repair

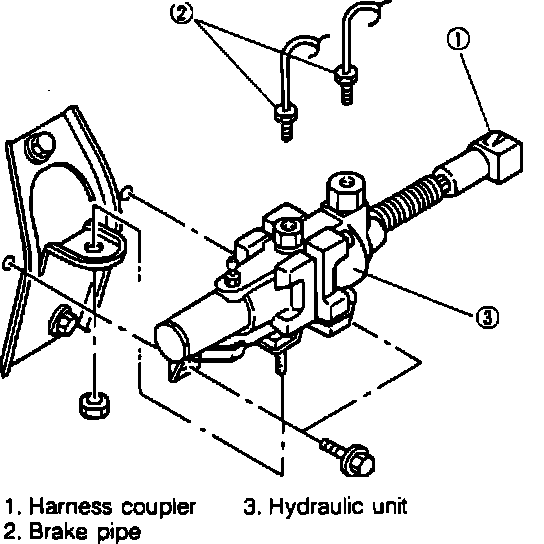

Fig. 75 Hydraulic Unit Replacement:

1. Raise and support rear of vehicle.
2. Remove hydraulic unit in numbered sequence, Fig. 75.
3. Reverse procedure to install.
