Sunvisor - Deforms After Repeated Use

Bulletin No.: 029/93
Issued: 6/16/93
Revised:

Category
S

Applicable Model/s
1991-93 MPV

Subject
SUNVISOR DEFORMED

APPLICABLE MODELS/VINS

MPV Models

1991 - Vehicles with a VIN of JM3LV****M0300001 through JM3LV****M0399999

1992 - Vehicles with a VIN of JM3LV****N0400001 through JM3LV****N0499999

1993 - Vehicles with a VIN of JM3LV****P0500001 through JM3LV****P0522839

DESCRIPTION

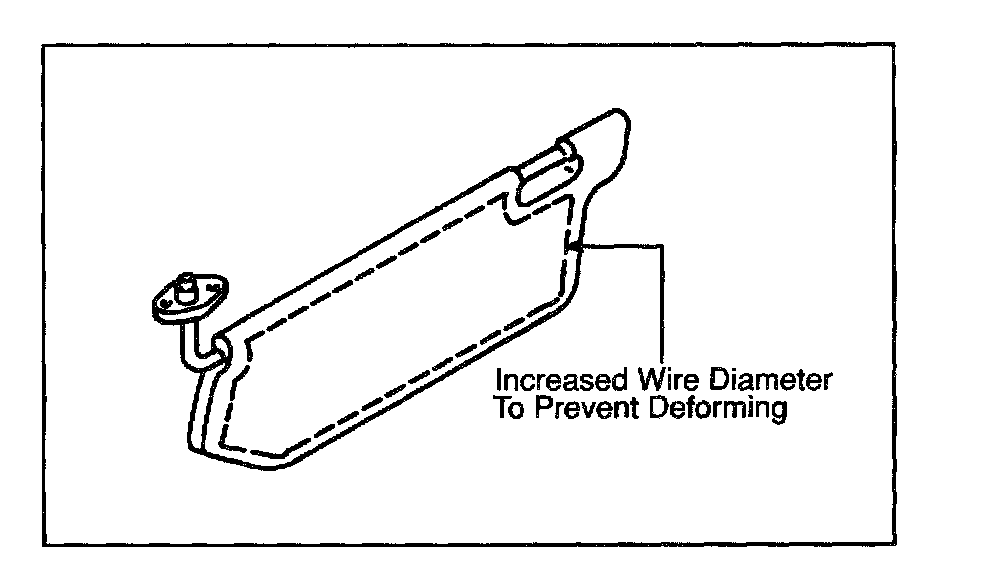

On some vehicles, the sunvisors may become deformed after repeated use. This condition is caused by insufficient clearance between the visor and the swivel base. To prevent deforming, the diameter of the wire that forms the visor body has been increased.

REPAIR PROCEDURE

If this condition exists, replace the affected sunvisor(s) with the modified part(s).

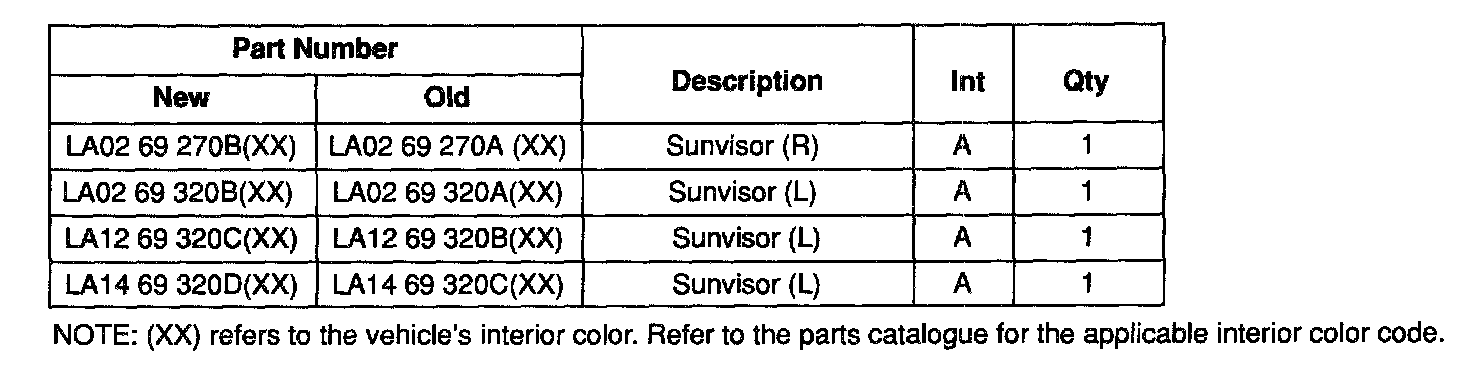

PARTS INFORMATION

WARRANTY INFORMATION
(Applies to vehicles covered under warranty.)

Warranty Type Code: A
Customer Comment Code: 87
Damage Code: 99
Part No. of Main Cause: See Parts Information.
Operation No.: S1806XRX
Labor Hours: 0.2 Hrs.
