Mazda Truck
>>
1991
>>
MPV 2WD V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Locations
>>
Connector Locations
>>
Automatic Transmission (Electronically Controlled)
Automatic Transmission (Electronically Controlled)

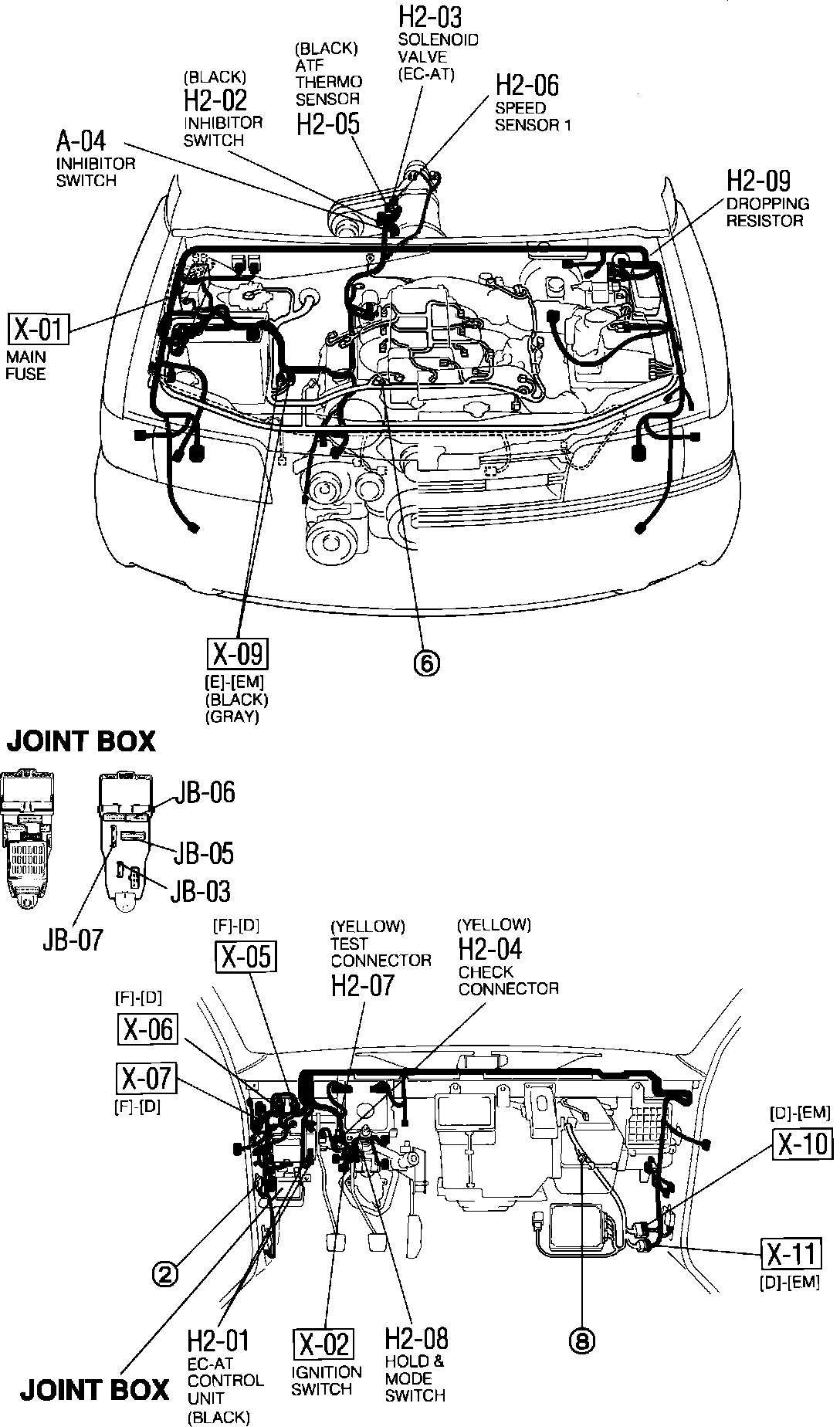

EC-AT Control System. Harness And Connector Locations:
