Mirror, Side View - Vibration Driving at Normal Speed

Bulletin No.: 040/93
Issued: 10/15/93
Revised

Category
S

Applicable Model/s
1989-93 MPV

Subject:
SIDE VIEW MIRROR VIBRATION

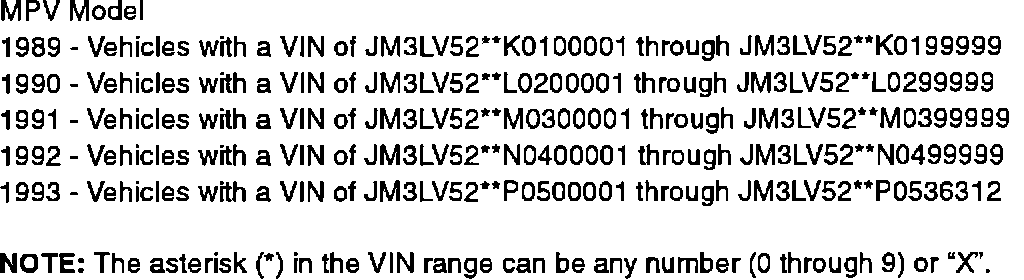

APPLICABLE MODELS/VINS

DESCRIPTION
Vibration of side view mirrors while driving at normal speed may be caused by loose mirror mounting screws. To correct this condition, lock washers have been installed on the screws.

REPAIR PROCEDURE
1. Remove the inside mirror garnish and mirror.
2. Remove the mirror base gasket to expose the mounting screws.





3. Remove mounting screws "A" from the mirror base (see illustration).
4. Install mounting screws "A" with lock washers. Torque mounting screws to 40 kg-cm (34 in.lbs.).

NOTE:
Obtain the lock washers from a local source. Refer to the illustration for washer dimensions.

5. Torque the mirror base screws "B" (see illustration) to 25 kg-cm (21 in.lbs.) and install the mirror base gasket and mirror.
6. Install inside garnish.

WARRANTY INFORMATION
(Applies to vehicles covered under normal vehicle warranty)
Warranty Type: A
Symptom Code: 91
Damage Code: 9G
Part Number Main Cause: LA01 69 110C (Mirror, Right) or LA01 69 170C (Mirror, Left)
Operation Number: XX0599R1 (One Side) XXO599R2 (Both Sides)
Labor Hours: 0.3 Hrs. (One Side) 0.6 Hrs. (Both Sides)

NOTE:
Labor hours include the cost of washers.
